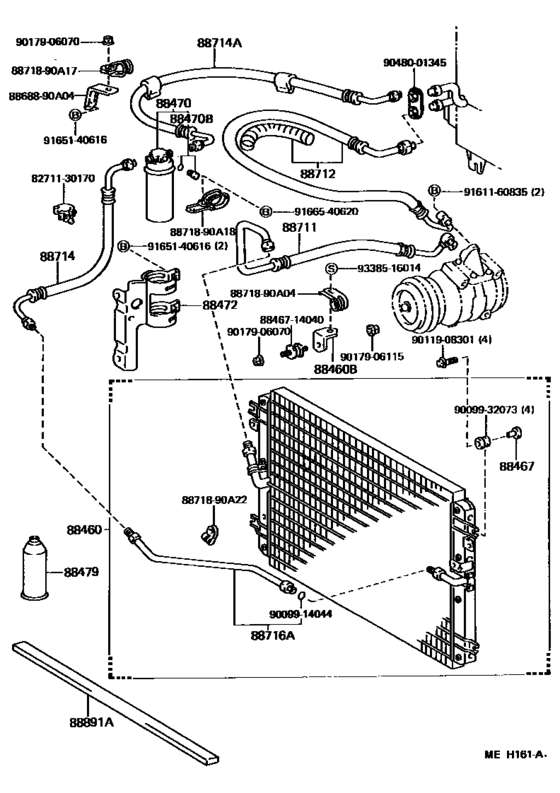

Heating & Air Conditioning - Cooler Piping ([04.1986 - ] (8604- )FJ60) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-90A00
Condenser Assy, Cooler
[08.1980 - 04.1985] FJ60..USA |
88460-90A00 |
— | ||
|
88460
|
88460
88460-90A04
Condenser Assy, Cooler
[04.1986 - 08.1987] FJ60 |
88460-90A04 |
— | ||
|
88460
|
88460
88460-90A06 Condenser Assy, CoolerCOOLER [04.1985 - 04.1986] FJ60 |
88460-90A06 |
US $499.41 |
||
|
88460B
|
88460B
88688-90A00
Bracket, Cooler Condenser, No.1
[08.1980 - 04.1985] FJ60..USA |
88688-90A00 |
— | ||
|
88460B
|
88460B
88688-90A05
Bracket, Cooler Condenser, No.1
[04.1985 - 08.1987] FJ60 |
88688-90A05 |
— | ||
|
88467
|
88467
88467-22040
Insulator, Cooler Condenser Mounting
[04.1985 - 08.1987] FJ60 |
88467-22040 |
— | ||
| replacement | |||||
|
88467
|
88467
88469-22010
Collar(For Radiator)
[04.1985 - 08.1987] FJ60 |
88469-22010 |
— | ||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[08.1980 - 08.1987] FJ60..USA |
88470-14010 |
— | ||
| replacement | |||||
|
88470
|
88470
04884-33110 New Genuine Part[08.1980 - 08.1987] FJ60..USA |
04884-33110 |
US $85.28 |
||
|
88470B
|
88470B
90099-04579
Bolt, Fuse
[08.1980 - 08.1987] FJ60..USA |
90099-04579 |
— | ||
| replacement | |||||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[08.1980 - 08.1987] FJ60..USA |
88475-12020 |
— | ||
|
88472
|
88472
88472-90A01
Bracket, Receiver Tank, No.1
[08.1980 - 08.1987] FJ60..USA |
88472-90A01 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1980 - 08.1987] FJ60..USA 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1980 - 08.1987] FJ60..USA 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[08.1980 - 08.1987] FJ60..USA 400G |
90986-02005 |
— | ||
|
88711
|
88711
88711-90A00
Hose, Cooler Refrigerant Discharge, No.1
[08.1980 - 04.1985] FJ60..USA |
88711-90A00 |
— | ||
|
88711
|
88711
88711-90A07 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [04.1985 - 08.1987] FJ60 |
88711-90A07 |
US $200.93 |
||
|
88712
|
88712
88712-90A01
Hose, Cooler Refrigerant Suction, No.1
[08.1980 - 04.1986] FJ60..USA |
88712-90A01 |
— | ||
|
88712
|
88712
88712-90A26 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [04.1986 - 08.1987] FJ60 |
88712-90A26 |
US $215.49 |
||
|
88714
|
88714
88721-90A02
Hose, Cooler Refrigerant Liquid, No.1
[08.1980 - 04.1985] FJ60..USA |
88721-90A02 |
— | ||
|
88714
|
88714
88721-90A07
Hose, Cooler Refrigerant Liquid, No.1
[04.1985 - 08.1987] BJ60,FJ60,HJ60 |
88721-90A07 |
— | ||
|
88714A
|
88714A
88721-90A03
Hose, Cooler Refrigerant Liquid, No.2
[08.1980 - 08.1987] FJ60..USA |
88721-90A03 |
— | ||
|
88716A
|
88716A
88716-90A01
Pipe, Cooler Refrigerant Liquid, A
[08.1980 - 04.1985] FJ60..USA |
88716-90A01 |
— | ||
|
88716A
|
88716A
88716-90A07 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [04.1985 - 08.1987] BJ60,FJ60 |
88716-90A07 |
US $59.55 |
||
|
88891A
|
88891A
88578-90A01
Packing A (For Cooler)
[08.1980 - 04.1986] FJ60..USA |
88578-90A01 |
— | ||
| replacement | |||||
|
88891A
|
88891A
88578-90A02
Packing A (For Cooler)
[08.1980 - 04.1986] FJ60..USA |
88578-90A02 |
— | ||
|
88891A
|
88891A
88578-90A02
Packing A (For Cooler)
[04.1986 - 08.1987] FJ60 |
88578-90A02 |
— | ||
|
8868890A04
|
8868890A04
88688-90A04
Bracket, Cooler Diaphragm
|
88688-90A04 |
— | ||
|
8871890A04
|
8871890A04
88718-90A04
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A04 |
— | ||
|
8871890A17
|
8871890A17
88718-90A17
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A17 |
— | ||
|
8871890A18
|
8871890A18
88718-90A18
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A18 |
— | ||
|
8871890A22
|
8871890A22
88718-90A22
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A22 |
— | ||
|
8271130170
|
8271130170
82711-30170 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30170 |
US $9.17 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
9009914044
|
9009914044
90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose) |
90099-14044 |
US $0.70 |
||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9011908301
|
9011908301
90119-08301 BOLT |
90119-08301 |
US $2.33 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9048001345
|
9048001345
90480-01345
New Genuine Part
|
90480-01345 |
— | ||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
