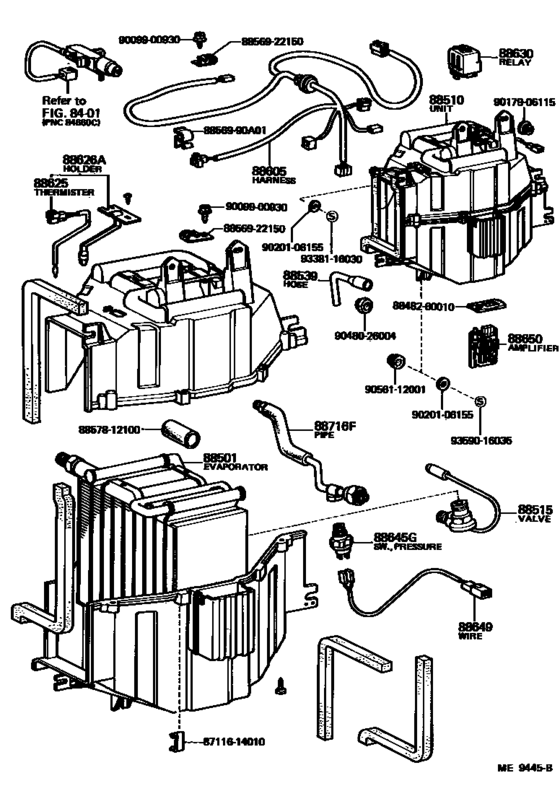

Heating & Air Conditioning - Cooler Unit ([08.1980 - 04.1985] (8008-8504)USA) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-90A01
Evaporator Sub-Assy, Cooler, No.1
[08.1980 - 04.1985] FJ60..USA |
88501-90A01 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[08.1980 - 04.1985] FJ60..USA |
88501-90A07 |
— | ||
|
88501
|
88501
88501-90A03
Evaporator Sub-Assy, Cooler, No.1
[04.1985 - 04.1986] FJ60 |
88501-90A03 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[04.1985 - 04.1986] FJ60 |
88501-90A07 |
— | ||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[04.1986 - 08.1987] FJ60; HJ60 |
88501-90A07 |
— | ||
|
88510
|
88510
88510-90A01
Unit Assy, Cooler
[08.1980 - 04.1985] FJ60..USA |
88510-90A01 |
— | ||
|
88510
|
88510
88510-90A04
Unit Assy, Cooler
[04.1985 - 08.1987] FJ60 |
88510-90A04 |
— | ||
|
88515
|
88515
88515-20040 Valve, Cooler Expansion[08.1980 - 10.1985] FJ60..USA |
88515-20040 |
US $119.39 |
||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[08.1980 - 10.1985] FJ60..USA |
88515-16031 |
US $121.36 |
||
|
88515
|
88515
88515-87004
Valve, Cooler Expansion
[10.1985 - 08.1987] FJ60,HJ60 |
88515-87004 |
— | ||
|
88539
|
88539
88539-90A00
Hose, Cooler Unit Drain, No.1
[08.1980 - 08.1987] FJ60..USA |
88539-90A00 |
— | ||
|
88605
|
88605
88605-90A01
Harness Sub-Assy, Cooler Wiring, No.1
[08.1980 - 04.1985] FJ60..USA |
88605-90A01 |
— | ||
|
88605
|
88605
88605-90A09
Harness Sub-Assy, Cooler Wiring, No.1
[04.1985 - 08.1987] FJ60 |
88605-90A09 |
— | ||
|
88625
|
88625
88625-90A00
Thermistor, Cooler, No.1
[08.1980 - 04.1985] FJ60..USA |
88625-90A00 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-12070 Thermistor, Cooler, No.1[08.1980 - 04.1985] FJ60..USA |
88625-12070 |
US $7.69 |
||
|
88626A
|
88626A
88626-90A01
Holder, Thermistor
[08.1980 - 08.1987] FJ60..USA |
88626-90A01 |
— | ||
|
88630
|
88630
85913-90A01
Relay Assy (For Heater Blower Motor)
[08.1980 - 04.1985] FJ60..USA |
85913-90A01 |
— | ||
|
88645G
|
88645G
88645-22020
Switch, Pressure
[08.1980 - 08.1985] FJ60..USA |
88645-22020 |
— | ||
| replacement | |||||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1980 - 08.1985] FJ60..USA |
88645-30250 |
— | ||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1985 - 08.1987] FJ60 |
88645-30250 |
— | ||
|
88649
|
88649
88648-90A00
Wiring, Cooler, No.1
[08.1980 - 08.1987] FJ60..USA |
88648-90A00 |
— | ||
|
88650
|
88650
88650-60020
Amplifier Assy, Cooler Stabilizer
[08.1980 - 04.1985] FJ60..USA |
88650-60020 |
— | ||
|
88650
|
88650
88650-90A02
Amplifier Assy, Cooler Stabilizer
[04.1985 - 08.1987] FJ60 |
88650-90A02 |
— | ||
|
88716F
|
88716F
88716-90A05
Pipe, Cooler Refrigerant Liquid, F
[08.1980 - 11.1984] FJ60..USA |
88716-90A05 |
— | ||
| replacement | |||||
|
88716F
|
88716F
88716-90A27
Pipe, Cooler Refrigerant Liquid, F
[08.1980 - 11.1984] FJ60..USA |
88716-90A27 |
— | ||
|
88716F
|
88716F
88716-90A27
Pipe, Cooler Refrigerant Liquid, F
[11.1984 - 08.1987] BJ60,FJ60,HJ60 |
88716-90A27 |
— | ||
|
8856990A01
|
8856990A01
88569-90A01
Clamp (for Cooler Relay)
|
88569-90A01 |
— | ||
|
8711614010
|
8711614010
87116-14010
Spring, Heater Case Fastening
|
87116-14010 |
— | ||
|
8848260010
|
8848260010
88482-60010
Cap, Cooler
|
88482-60010 |
— | ||
|
8856922150
|
8856922150
88569-22150
Clamp (For Cooler Wiring Harness), No.2
|
88569-22150 |
— | ||
|
8857812100
|
8857812100
88578-12100
Packing, Cooling Unit, No.1
|
88578-12100 |
— | ||
| replacement | |||||
|
8857812100
|
8857812100
88578-30360
Packing, Cooler Pipe, No.1
|
88578-30360 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9020106155
|
9020106155
90201-06155 New Genuine Part |
90201-06155 |
US $2.62 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.12 |
||
|
9056112001
|
9056112001
90561-12001
New Genuine Part
|
90561-12001 |
— | ||
|
9338116030
|
9338116030
93381-16030
New Genuine Part
|
93381-16030 |
— | ||
|
9359016035
|
9359016035
93590-16035
New Genuine Part
|
93590-16035 |
— | ||
