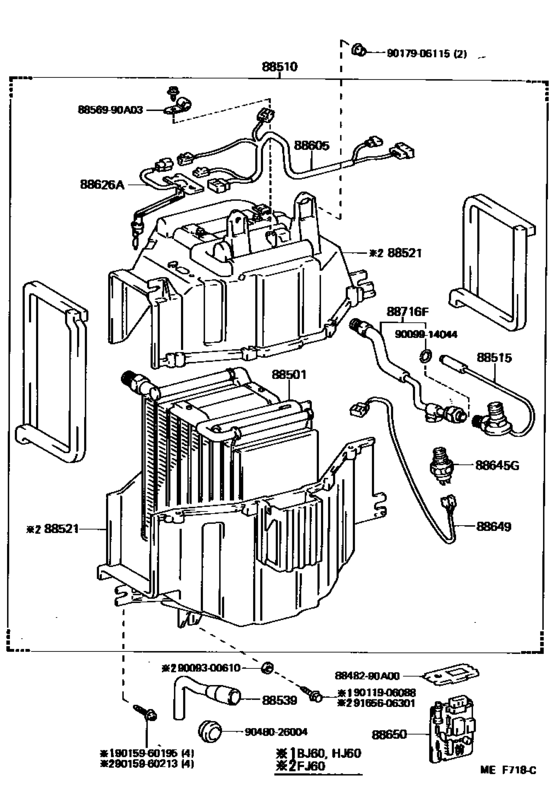

Heating & Air Conditioning - Cooler Unit ([04.1985 - ] (8411-8510)BJ60 ; (8504- )FJ60 ; (8510- )H J60) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-90A01
Evaporator Sub-Assy, Cooler, No.1
[08.1980 - 04.1985] FJ60..USA |
88501-90A01 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[08.1980 - 04.1985] FJ60..USA |
88501-90A07 |
— | ||
|
88501
|
88501
88501-90A03
Evaporator Sub-Assy, Cooler, No.1
[04.1985 - 04.1986] FJ60 |
88501-90A03 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[04.1985 - 04.1986] FJ60 |
88501-90A07 |
— | ||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[04.1986 - 08.1987] FJ60; HJ60 |
88501-90A07 |
— | ||
|
88510
|
88510
88510-90A01
Unit Assy, Cooler
[08.1980 - 04.1985] FJ60..USA |
88510-90A01 |
— | ||
|
88510
|
88510
88510-90A04
Unit Assy, Cooler
[04.1985 - 08.1987] FJ60 |
88510-90A04 |
— | ||
|
88515
|
88515
88515-20040 Valve, Cooler Expansion[08.1980 - 10.1985] FJ60..USA |
88515-20040 |
US $119.39 |
||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[08.1980 - 10.1985] FJ60..USA |
88515-16031 |
US $121.36 |
||
|
88515
|
88515
88515-87004
Valve, Cooler Expansion
[10.1985 - 08.1987] FJ60,HJ60 |
88515-87004 |
— | ||
|
88521
|
88521
88521-90A02
Case, Cooler Unit
[04.1985 - 08.1987] FJ60 UPPER |
88521-90A02 |
— | ||
|
88521
|
88521
88521-90A03
Case, Cooler Unit
[04.1985 - 03.1987] FJ60 LOWER |
88521-90A03 |
— | ||
|
88539
|
88539
88539-90A00
Hose, Cooler Unit Drain, No.1
[08.1980 - 08.1987] FJ60..USA |
88539-90A00 |
— | ||
|
88605
|
88605
88605-90A01
Harness Sub-Assy, Cooler Wiring, No.1
[08.1980 - 04.1985] FJ60..USA |
88605-90A01 |
— | ||
|
88605
|
88605
88605-90A09
Harness Sub-Assy, Cooler Wiring, No.1
[04.1985 - 08.1987] FJ60 |
88605-90A09 |
— | ||
|
88626A
|
88626A
88626-90A01
Holder, Thermistor
[08.1980 - 08.1987] FJ60..USA |
88626-90A01 |
— | ||
|
88645G
|
88645G
88645-22020
Switch, Pressure
[08.1980 - 08.1985] FJ60..USA |
88645-22020 |
— | ||
| replacement | |||||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1980 - 08.1985] FJ60..USA |
88645-30250 |
— | ||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1985 - 08.1987] FJ60 |
88645-30250 |
— | ||
|
88649
|
88649
88648-90A00
Wiring, Cooler, No.1
[08.1980 - 08.1987] FJ60..USA |
88648-90A00 |
— | ||
|
88650
|
88650
88650-60020
Amplifier Assy, Cooler Stabilizer
[08.1980 - 04.1985] FJ60..USA |
88650-60020 |
— | ||
|
88650
|
88650
88650-90A02
Amplifier Assy, Cooler Stabilizer
[04.1985 - 08.1987] FJ60 |
88650-90A02 |
— | ||
|
88716F
|
88716F
88716-90A05
Pipe, Cooler Refrigerant Liquid, F
[08.1980 - 11.1984] FJ60..USA |
88716-90A05 |
— | ||
| replacement | |||||
|
88716F
|
88716F
88716-90A27
Pipe, Cooler Refrigerant Liquid, F
[08.1980 - 11.1984] FJ60..USA |
88716-90A27 |
— | ||
|
88716F
|
88716F
88716-90A27
Pipe, Cooler Refrigerant Liquid, F
[11.1984 - 08.1987] BJ60,FJ60,HJ60 |
88716-90A27 |
— | ||
|
8848290A00
|
8848290A00
88482-90A00
Cap, Cooler
|
88482-90A00 |
— | ||
|
8856990A03
|
8856990A03
88569-90A03
Clamp (for Cooler Relay)
|
88569-90A03 |
— | ||
|
9009300610
|
9009300610
90093-00610
New Genuine Part
|
90093-00610 |
— | ||
|
9009914044
|
9009914044
90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose) |
90099-14044 |
US $0.70 |
||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9015960195
|
9015960195
90159-60195 New Genuine Part |
90159-60195 |
US $0.52 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.12 |
||
|
9165606301
|
9165606301
91656-06301
New Genuine Part
|
91656-06301 |
— | ||
