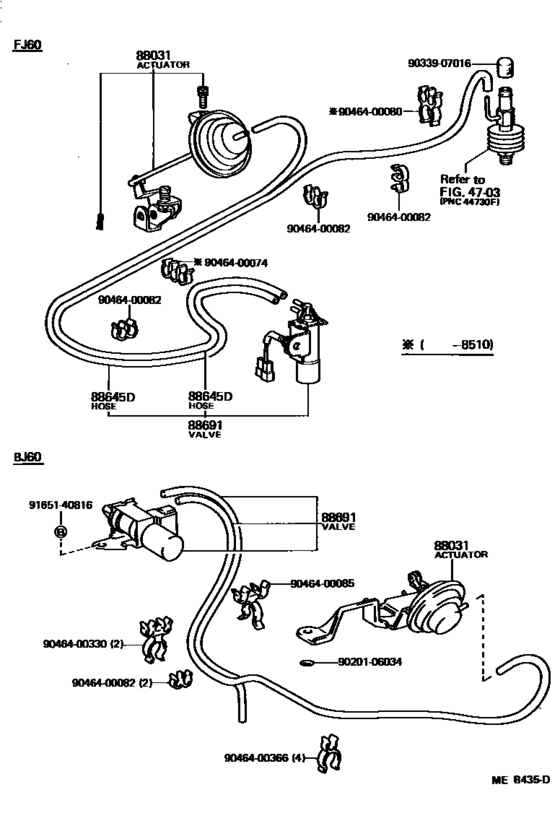

Heating & Air Conditioning - Vacuum Piping ([08.1980 - ] (8008- )USA ; (8411-8510)BJ60) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-60010
Actuator Set, Idle-Up
[08.1980 - 04.1986] FJ60..USA |
88031-60010 |
— | ||
|
88645D
|
88645D
95411-10095
Hose, Vacuum, No.6 (For Front Drive Shift)
[08.1980 - 04.1985] FJ60..USA *H,L=750,MARK=#0 |
95411-10095 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1980 - 04.1985] FJ60..USA *H,L=750,MARK=#0 |
90999-92004 |
from US $8.76 |
||
|
88645D
|
88645D
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[08.1980 - 04.1985] FJ60..USA *H,L=480,MARK=#* |
95411-19960 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[08.1980 - 04.1985] FJ60..USA *H,L=480,MARK=#* |
90999-92003 |
— | ||
|
88691
|
88691
88690-90A00
Valve, Magnet (For Idle Up Device)
[08.1980 - 04.1985] FJ60..USA |
88690-90A00 |
— | ||
|
88691
|
88691
88690-90A10
Valve, Magnet (For Idle Up Device)
[04.1985 - 08.1987] FJ60 |
88690-90A10 |
— | ||
| replacement | |||||
|
88691
|
88691
88690-22440
Valve, Magnet (For Idle Up Device)
[04.1985 - 08.1987] FJ60 |
88690-22440 |
— | ||
|
9020106034
|
9020106034
90201-06034
New Genuine Part
|
90201-06034 |
— | ||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.87 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400080
|
9046400080
90464-00080 New Genuine Part |
90464-00080 |
US $4.37 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400085
|
9046400085
90464-00085 New Genuine Part |
90464-00085 |
US $2.97 |
||
|
9046400330
|
9046400330
90464-00330
New Genuine Part
|
90464-00330 |
— | ||
|
9046400366
|
9046400366
90464-00366 Clamp Or Clip(For Radiator Reserve Tank Hose No.3) |
90464-00366 |
US $5.82 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
