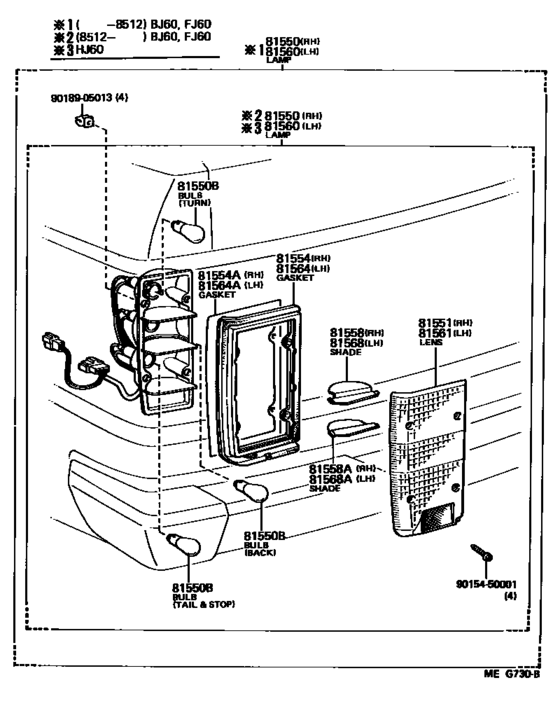

Rear Combination Lamp ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-69055 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1980 - 11.1984] BJ60,FJ60 |
81550-69055 |
US $215.49 |
||
|
81550
|
81550
81550-69195
Lamp Assy, Rear Combination, Rh
[11.1984 - 12.1985] BJ60,FJ60 |
81550-69195 |
— | ||
| replacement | |||||
|
81550
|
81550
81550-90A11
Lamp Assy, Rear Combination, Rh
[11.1984 - 12.1985] BJ60,FJ60 |
81550-90A11 |
— | ||
|
81550
|
81550
81550-90A09 Lamp Assy, Rear Combination, Rh[12.1985 - 12.1986] FJ60 |
81550-90A09 |
US $208.21 |
||
| replacement | |||||
|
81550
|
81550
81550-90A11
Lamp Assy, Rear Combination, Rh
[12.1985 - 12.1986] FJ60 |
81550-90A11 |
— | ||
|
81550
|
81550
81550-90A11
Lamp Assy, Rear Combination, Rh
[12.1986 - 08.1987] FJ60 |
81550-90A11 |
— | ||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1980 - 08.1987] BJ60,FJ60 12V 27W,12V 27W(TURN OR BACK) |
99132-11270 |
US $3.76 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1980 - 08.1987] BJ60,FJ60 12V 27/8W,12V 27/8W(STOP/TAIL) |
99132-21270 |
US $4.84 |
||
|
81551
|
81551
81551-90A00 Lens, Rear Combination Lamp, Rh[08.1980 - 08.1987] BJ60,FJ60 |
81551-90A00 |
from US $66.42 |
||
|
81554
|
81554
81552-90A00
Gasket, Rear Combination Lamp Body, Rh
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
81552-90A00 |
— | ||
|
81554A
|
81554A
81554-90A12
Gasket, Rear Combination Lamp Body, Rh
[12.1986 - 08.1987] FJ60,HJ60 |
81554-90A12 |
— | ||
|
81558
|
81558
81557-90A00
Cover, Rear Combination Lamp, Rh
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
81557-90A00 |
— | ||
|
81558A
|
81558A
81558-90A00
Shade, Rear Combination Lamp, No.1 Rh
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
81558-90A00 |
— | ||
|
81560
|
81560
81560-69055 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1980 - 11.1984] BJ60,FJ60 |
81560-69055 |
US $215.49 |
||
|
81560
|
81560
81560-69195 Lamp Assy, Rear Combination, Lh[11.1984 - 12.1985] BJ60,FJ60 |
81560-69195 |
US $214.03 |
||
| replacement | |||||
|
81560
|
81560
81560-90A11
Lamp Assy, Rear Combination, Lh
[11.1984 - 12.1985] BJ60,FJ60 |
81560-90A11 |
— | ||
|
81560
|
81560
81560-90A09 Lamp Assy, Rear Combination, Lh[12.1985 - 12.1986] FJ60 |
81560-90A09 |
US $208.21 |
||
| replacement | |||||
|
81560
|
81560
81560-90A11
Lamp Assy, Rear Combination, Lh
[12.1985 - 12.1986] FJ60 |
81560-90A11 |
— | ||
|
81560
|
81560
81560-90A11
Lamp Assy, Rear Combination, Lh
[12.1986 - 08.1987] FJ60 |
81560-90A11 |
— | ||
|
81561
|
81561
81561-90A00 Lens, Rear Combination Lamp, Lh[08.1980 - 08.1987] BJ60,FJ60 |
81561-90A00 |
from US $62.57 |
||
|
81564
|
81564
81562-90A00
Gasket, Rear Combination Lamp Body, Lh
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
81562-90A00 |
— | ||
|
81564A
|
81564A
81564-90A12
Gasket, Rear Combination Lamp Body, Lh
[12.1986 - 08.1987] FJ60,HJ60 |
81564-90A12 |
— | ||
|
81568
|
81568
81557-90A00
Cover, Rear Combination Lamp, Rh
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
81557-90A00 |
— | ||
|
81568A
|
81568A
81558-90A00
Shade, Rear Combination Lamp, No.1 Rh
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
81558-90A00 |
— | ||
|
9015450001
|
9015450001
90154-50001 SCREW |
90154-50001 |
from US $1.08 |
||
|
9018905013
|
9018905013
90189-05013 Grommet |
90189-05013 |
from US $0.97 |
||
