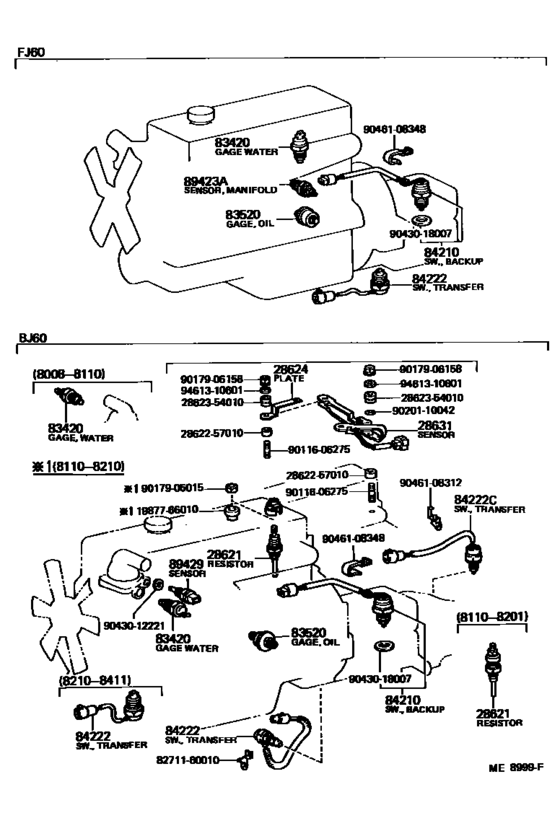

Switch & Relay & Computer ([08.1980 - 10.1985] (8008-8510)) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
83420-20020 |
from US $28.46 |
||
|
83520
|
83520
83520-14021
Gage Assy,oil Pressure Sender
[08.1980 - 01.1983] BJ60,FJ60 DENSO |
83520-14021 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-35032 Gage Assy,oil Pressure Sender[08.1980 - 01.1983] BJ60,FJ60 DENSO |
83520-35032 |
from US $41.50 |
||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[08.1980 - 01.1983] BJ60,FJ60 YAZAKI |
83520-55011 |
from US $68.44 |
||
|
83520
|
83520
83520-60010
Gage Assy,oil Pressure Sender
[01.1983 - 08.1987] BJ60,FJ60 YAZAKI |
83520-60010 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-60011 Gage Assy,oil Pressure Sender[01.1983 - 08.1987] BJ60,FJ60 YAZAKI |
83520-60011 |
from US $62.50 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[08.1980 - 08.1987] BJ60,FJ60,HJ60..MTM |
84210-60021 |
from US $41.69 |
||
|
84222
|
84222
84222-60020 Switch, Transfer Indicator, No.1TRANSFER INDICATOR, NO.1 [10.1982 - 01.1983] BJ60,FJ60 |
84222-60020 |
US $88.58 |
||
|
84222
|
84222
84222-60021 Switch, Transfer Indicator, No.1[01.1983 - 08.1987] BJ60,FJ60,HJ60 |
84222-60021 |
from US $68.32 |
||
|
89423A
|
89423A
89423-60020
Sensor, Manifold Temperature
[08.1980 - 08.1987] FJ60..USA |
89423-60020 |
— | ||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271160010
|
8271160010
82711-60010
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60010 |
— | ||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.84 |
||
|
9046108312
|
9046108312
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9046108348
|
9046108348
90461-08348
New Genuine Part
|
90461-08348 |
— | ||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
