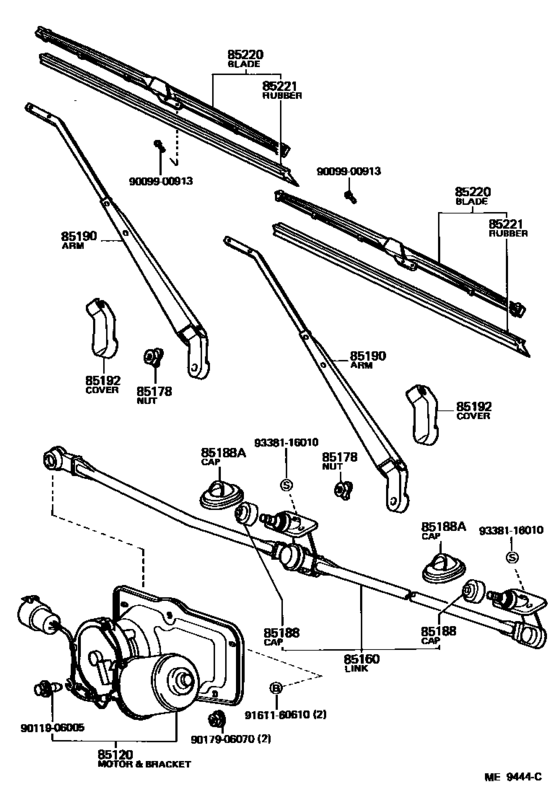

Windshield Wiper ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85120
|
85120
85120-90A21 Motor And Bracket Assy, Windshield Wiper[08.1980 - 08.1986] BJ60,FJ60 |
85120-90A21 |
US $435.34 |
||
| replacement | |||||
|
85120
|
85120
85120-90A29
Motor And Bracket Assy, Windshield Wiper
[08.1980 - 08.1986] BJ60,FJ60 |
85120-90A29 |
— | ||
|
85120
|
85120
85120-90A29
Motor And Bracket Assy, Windshield Wiper
[08.1986 - 08.1987] FJ60 |
85120-90A29 |
— | ||
|
85160
|
85160
85160-90A05
Link Assy, Windshield Wiper
[08.1980 - 08.1986] BJ60,FJ60,HJ60 |
85160-90A05 |
— | ||
| replacement | |||||
|
85160
|
85160
85160-90A07
Link Assy, Windshield Wiper
[08.1980 - 08.1986] BJ60,FJ60,HJ60 |
85160-90A07 |
— | ||
|
85160
|
85160
85160-90A07
Link Assy, Windshield Wiper
[08.1986 - 08.1987] FJ60,HJ60 |
85160-90A07 |
— | ||
|
85178
|
85178
90179-08026 Nut (For Front Wiper Arm Setting)[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90179-08026 |
from US $0.76 |
||
|
85188
|
85188
85178-90A00 Cap, Windshield Wiper Pivot[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
85178-90A00 |
from US $8.66 |
||
|
85188A
|
85188A
85247-90A01 Cap, Windshield Wiper Pivot, No.2[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
85247-90A01 |
from US $10.03 |
||
|
85190
|
85190
85190-90A02 Arm Assy, Windshield WiperLH [08.1980 - 10.1981] BJ60,FJ60 LH |
85190-90A02 |
from US $43.68 |
||
|
85190
|
85190
85190-90A05
Arm Assy, Windshield Wiper
[10.1981 - 10.1982] BJ60,FJ60 LH |
85190-90A05 |
— | ||
| replacement | |||||
|
85190
|
85190
85190-90A02 Arm Assy, Windshield WiperLH [10.1981 - 10.1982] BJ60,FJ60 LH |
85190-90A02 |
from US $43.68 |
||
|
85190
|
85190
85210-90A01 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 10.1981] BJ60,FJ60 RH |
85210-90A01 |
from US $43.68 |
||
|
85190
|
85190
85210-90A04 Arm Assy, Windshield WiperWINDSHIELD WIPER [10.1981 - 10.1982] BJ60,FJ60 RH |
85210-90A04 |
US $45.43 |
||
|
85192
|
85192
85192-14010 Cover, Rear Wiper Arm[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
85192-14010 |
from US $3.90 |
||
|
85220
|
85220
85220-16140 Blade Assy, Windshield WiperWINDSHIELD WIPER [10.1982 - 07.1983] BJ60,FJ60 LH |
85220-16140 |
US $38.44 |
||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [10.1982 - 07.1983] BJ60,FJ60 LH |
85220-16640 |
from US $25.16 |
||
|
85220
|
85220
85220-16150 Blade Assy, Windshield WiperWINDSHIELD WIPER [10.1982 - 07.1983] BJ60,FJ60 RH |
85220-16150 |
US $40.48 |
||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [10.1982 - 07.1983] BJ60,FJ60 RH |
85220-16640 |
from US $25.16 |
||
|
85220
|
85220
85220-16270
Blade Assy, Windshield Wiper
[07.1983 - 08.1987] BJ60,FJ60,HJ60 LH |
85220-16270 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [07.1983 - 08.1987] BJ60,FJ60,HJ60 LH |
85220-16640 |
from US $25.16 |
||
|
85220
|
85220
85220-16290
Blade Assy, Windshield Wiper
[07.1983 - 11.1983] BJ60,FJ60 RH |
85220-16290 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [07.1983 - 11.1983] BJ60,FJ60 RH |
85220-16640 |
from US $25.16 |
||
|
85220
|
85220
85220-16340
Blade Assy, Windshield Wiper
[11.1983 - 08.1987] BJ60,FJ60,HJ60 RH |
85220-16340 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1983 - 08.1987] BJ60,FJ60,HJ60 RH |
85220-16640 |
from US $25.16 |
||
|
85220
|
85220
85220-90A01 Blade Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 10.1981] BJ60,FJ60 |
85220-90A01 |
US $40.19 |
||
| replacement | |||||
|
85220
|
85220
85220-90A03 Blade Assy, Windshield WiperWINDSHIELD WIPER [08.1980 - 10.1981] BJ60,FJ60 |
85220-90A03 |
US $40.33 |
||
|
85220
|
85220
85220-90A06
Blade Assy, Windshield Wiper
[10.1981 - 10.1982] BJ60,FJ60 |
85220-90A06 |
— | ||
|
85221
|
85221
85221-12120 Blade, Rear WiperWINDSHIELD WIPER [10.1982 - 07.1983] BJ60,FJ60 |
85221-12120 |
US $10.48 |
||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[10.1982 - 07.1983] BJ60,FJ60 |
85214-24H90 |
US $11.01 |
||
|
85221
|
85221
85221-30100
Blade, Windshield Wiper
[07.1983 - 08.1987] BJ60,FJ60,HJ60 |
85221-30100 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[07.1983 - 08.1987] BJ60,FJ60,HJ60 |
85214-24H90 |
US $11.01 |
||
|
85221
|
85221
85221-90A00 Blade, Windshield WiperWINDSHIELD WIPER [08.1980 - 10.1981] BJ60,FJ60 |
85221-90A00 |
US $11.50 |
||
| replacement | |||||
|
85221
|
85221
85221-90A04 Blade, Windshield Wiper[08.1980 - 10.1981] BJ60,FJ60 |
85221-90A04 |
US $10.48 |
||
|
85221
|
85221
85221-90A04 Blade, Windshield Wiper[10.1981 - 10.1982] BJ60,FJ60 |
85221-90A04 |
US $10.48 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
US $2.06 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $0.96 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $0.83 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
