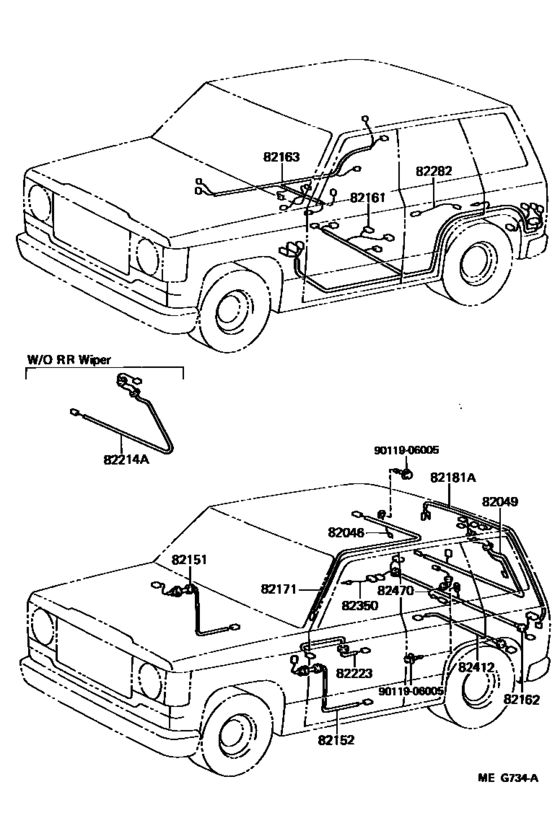

Wiring & Clamp ([08.1980 - ] (8008- )) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82046
|
82046
82046-90A00
Wire Sub-Assy, Rear Window Defogger Earth
[08.1980 - 11.1984] BJ60,FJ60 W/*RW |
82046-90A00 |
— | ||
|
82046
|
82046
82187-90A00 Wire Sub-Assy, Rear Window Defogger Earth[04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82187-90A00 |
US $3.93 |
||
|
82049
|
82049
82049-90A00
Wiring Sub-Assy, Rear Wiper
[08.1980 - 11.1984] BJ60,FJ60 |
82049-90A00 |
— | ||
|
82049
|
82049
82184-90A03
Wiring Sub-Assy, Rear Wiper
[04.1985 - 02.1987] BJ60,FJ60 |
82184-90A03 |
— | ||
|
82151
|
82151
82151-90A01 Wire, Front Door, RhFRONT DOOR, RH [04.1985 - 04.1986] BJ60,FJ60 |
82151-90A01 |
US $30.87 |
||
|
82151
|
82151
82151-90A05 Wire, Front Door, Rh[04.1986 - 08.1987] FJ60 |
82151-90A05 |
US $31.16 |
||
|
82151
|
82151
82372-90A00
Wire, Front Door, Rh
[08.1980 - 09.1983] BJ60 *19 OR TAPE PLAYER; FJ60..USA *19 OR TAPE PLAYER |
82372-90A00 |
— | ||
|
82152
|
82152
82151-90A01 Wire, Front Door, RhFRONT DOOR, RH [04.1985 - 04.1986] BJ60,FJ60 |
82151-90A01 |
US $30.87 |
||
|
82152
|
82152
82151-90A05 Wire, Front Door, Rh[04.1986 - 08.1987] FJ60 |
82151-90A05 |
US $31.16 |
||
|
82152
|
82152
82372-90A00
Wire, Front Door, Rh
[08.1980 - 09.1983] BJ60 *19 OR TAPE PLAYER; FJ60..USA *19 OR TAPE PLAYER |
82372-90A00 |
— | ||
|
82161
|
82161
82161-90A17
Wire, Floor
[04.1985 - 04.1986] FJ60 |
82161-90A17 |
— | ||
|
82161
|
82161
82161-90A19 Wire, FloorFLOOR [04.1986 - 08.1987] FJ60 |
82161-90A19 |
US $471.74 |
||
|
82161
|
82161
82161-90A20 Wire, FloorFLOOR [04.1986 - 08.1987] FJ60 W/*RWD |
82161-90A20 |
US $550.37 |
||
|
82161
|
82161
82420-90A02
Wire, Floor
[08.1980 - 04.1985] FJ60 |
82420-90A02 |
— | ||
|
82161
|
82161
82420-90A04
Wire, Floor
[08.1980 - 10.1982] FJ60 W/*RW |
82420-90A04 |
— | ||
|
82161
|
82161
82420-90A15
Wire, Floor
[10.1982 - 04.1985] FJ60 W/*RW |
82420-90A15 |
— | ||
|
82162
|
82162
82162-90A00
Wire, Floor, No.2
[04.1985 - 09.1985] BJ60,FJ60 |
82162-90A00 |
— | ||
|
82162
|
82162
82162-90A12 Wire, Floor, No.2FLOOR, NO.2 [04.1986 - 08.1987] FJ60 |
82162-90A12 |
US $126.67 |
||
|
82162
|
82162
82162-90A21 Wire, Floor, No.2FLOOR, NO.2 [09.1985 - 04.1986] BJ60,FJ60 |
82162-90A21 |
US $70.62 |
||
|
82162
|
82162
82410-90A00
Wire, Floor, No.2
[08.1980 - 10.1981] BJ60,FJ60 |
82410-90A00 |
— | ||
|
82162
|
82162
82410-90A07 Wire, Floor, No.2FLOOR, NO.2 [10.1981 - 11.1984] BJ60,FJ60 |
82410-90A07 |
US $65.81 |
||
|
82163
|
82163
82163-90A13 Wire, Floor, No.3FLOOR, NO.3 [04.1986 - 08.1987] FJ60 |
82163-90A13 |
US $221.31 |
||
|
82171
|
82171
82171-90A05 Wire, Roof, No.1ROOF, NO.1 [04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82171-90A05 |
US $31.16 |
||
|
82171
|
82171
82520-90A00
Wire, Roof, No.1
[08.1980 - 10.1982] BJ60,FJ60 |
82520-90A00 |
— | ||
|
82171
|
82171
82520-90A01
Wire, Roof, No.1
[10.1982 - 11.1984] BJ60,FJ60 |
82520-90A01 |
— | ||
|
82181A
|
82181A
82048-90A00
Wire, Luggage Room, No.2
[08.1980 - 10.1981] BJ60,FJ60 W/*RW |
82048-90A00 |
— | ||
|
82181A
|
82181A
82048-90A01
Wire, Luggage Room, No.2
[08.1980 - 10.1981] BJ60,FJ60 |
82048-90A01 |
— | ||
|
82181A
|
82181A
82048-90A02
Wire, Luggage Room, No.2
[10.1981 - 11.1984] BJ60,FJ60 W/*RW |
82048-90A02 |
— | ||
|
82181A
|
82181A
82048-90A03
Wire, Luggage Room, No.2
[10.1981 - 11.1984] BJ60,FJ60 |
82048-90A03 |
— | ||
|
82181A
|
82181A
82182-90A00 Wire, Luggage Room, No.2[04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82182-90A00 |
US $24.61 |
||
|
82181A
|
82181A
82182-90A01
Wire, Luggage Room, No.2
[04.1985 - 04.1986] BJ60,FJ60 W/*RWD |
82182-90A01 |
— | ||
|
82181A
|
82181A
82182-90A02 Wire, Luggage Room, No.2[04.1986 - 08.1987] FJ60 W/*RWD |
82182-90A02 |
US $36.84 |
||
|
82214A
|
82214A
82184-90A02
Wire, Lamp
[04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82184-90A02 |
— | ||
|
82214A
|
82214A
82203-90A00
Wire, Lamp
[08.1980 - 11.1984] BJ60,FJ60 |
82203-90A00 |
— | ||
|
82350
|
82350
82153-90A00 Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)[04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82153-90A00 |
US $12.81 |
||
|
82350
|
82350
82350-90A00
Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)
[08.1980 - 11.1984] BJ60,FJ60 |
82350-90A00 |
— | ||
|
82412
|
82412
82155-90A00 Wire, Fuel GageFUEL GAGE [04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82155-90A00 |
US $25.19 |
||
|
82412
|
82412
82412-90A00
Wire, Fuel Gage
[08.1980 - 11.1984] BJ60,FJ60 |
82412-90A00 |
— | ||
|
82470
|
82470
82181-90A00 Wire, Luggage Room, No.1[04.1985 - 08.1987] BJ60,FJ60,HJ60 |
82181-90A00 |
US $6.99 |
||
|
82470
|
82470
82470-90A00
Wire Assy, License Lamp Feed
[08.1980 - 10.1981] BJ60,FJ60 |
82470-90A00 |
— | ||
|
82470
|
82470
82470-90A03 Wire Assy, License Lamp FeedLICENSE LAMP FEED [10.1981 - 11.1984] BJ60,FJ60 |
82470-90A03 |
US $26.35 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
