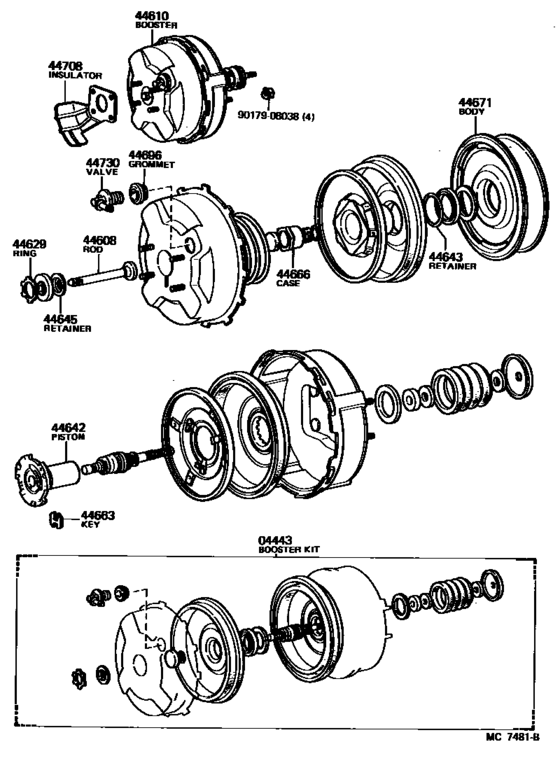

Brake Booster & Vacuum Tube ([08.1980 - 11.1984] (8008-8411)FJ60..EUR) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- General
- Frame
- FJ60
- body
- WGG
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04443
|
04443
04443-60070 Booster Kit, BrakeBRAKE [08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
04443-60070 |
US $190.74 |
||
|
44608
|
44608
44606-30340 Push Rod Sub-Assy, Booster[08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44606-30340 |
US $14.71 |
||
|
44610
|
44610
44610-60090 Booster Assy, BrakeBRAKE [08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44610-60090 |
US $818.27 |
||
|
44629
|
44629
44628-60010
Ring, Circular Internal
[08.1980 - 11.1984] BJ60,FJ60,HJ60 |
44628-60010 |
— | ||
|
44642
|
44642
44642-30340 Piston, Brake Booster[08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44642-30340 |
US $55.04 |
||
|
44643
|
44643
44643-30340 Retainer, Diaphragm[08.1980 - 11.1984] FJ60..EUR |
44643-30340 |
US $3.64 |
||
|
44645
|
44645
44626-60010 Retainer, Booster Seal[08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44626-60010 |
US $2.27 |
||
|
44663
|
44663
44635-30340 Key, Valve Stopper[08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44635-30340 |
US $3.64 |
||
|
44666
|
44666
44657-60090
Case, Reaction Disc
[08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44657-60090 |
— | ||
|
44671
|
44671
44607-30340 Body Sub-Assy, No.3[08.1980 - 11.1984] FJ60..EUR FR DISC BRAKE |
44607-30340 |
US $51.25 |
||
|
44696
|
44696
90480-24439 Grommet, Check Valve[08.1980 - 08.1987] FJ6# |
90480-24439 |
from US $2.51 |
||
|
44708
|
44708
44786-60030 Insulator Sub-Assy, Brake Booster HeatBRAKE BOOSTER HEAT [08.1980 - 08.1987] FJ6#..LHD |
44786-60030 |
US $13.40 |
||
|
44730
|
44730
44730-22070
Valve Assy, Vacuum Check(For Brake)
[08.1980 - 11.1984] FJ60 |
44730-22070 |
— | ||
| replacement | |||||
|
44730
|
44730
44730-20060 Valve Assy, Vacuum Check(For Brake)[08.1980 - 11.1984] FJ60 |
44730-20060 |
US $36.68 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
