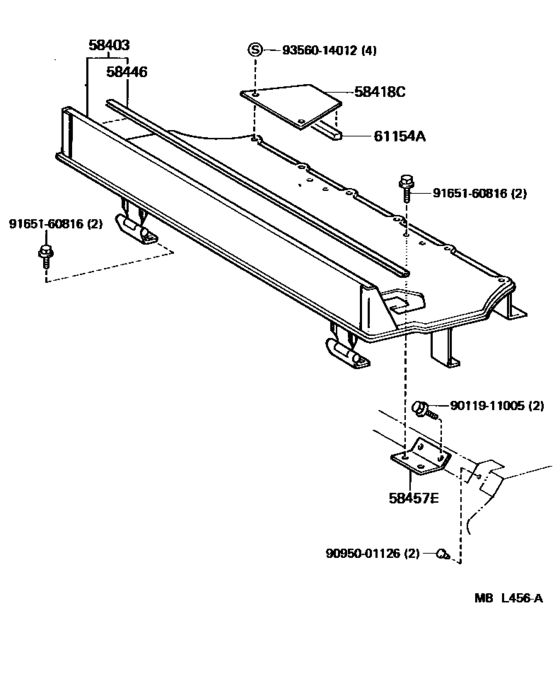

Deck Board & Deck Trim Cover ([09.1986 - ] (8609- )WGV) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGV
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 09.1986
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58403
|
58403
58410-90A00
Board Sub-Assy, Deck
[09.1986 - 08.1987] FJ60..WGV |
58410-90A00 |
— | ||
|
58418C
|
58418C
58418-90A00
Plate, Deck Board
[09.1986 - 08.1987] FJ60..WGV |
58418-90A00 |
— | ||
|
58446
|
58446
58446-90A00
Protector, Deck Board Bracket
[09.1986 - 08.1987] FJ60..WGV |
58446-90A00 |
— | ||
|
58457E
|
58457E
58457-90A00
Bracket, Deck Board, Rear
[09.1986 - 08.1987] FJ60..WGV |
58457-90A00 |
— | ||
|
61154A
|
61154A
61154-90C00 Cushion, Side Panel Stiffener, No.4SIDE PANEL STIFFENER, NO.4, RH [09.1986 - 08.1987] FJ60..WGV |
61154-90C00 |
US $1.93 |
||
|
9011911005
|
9011911005
90119-11005 New Genuine Part |
90119-11005 |
US $1.89 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
