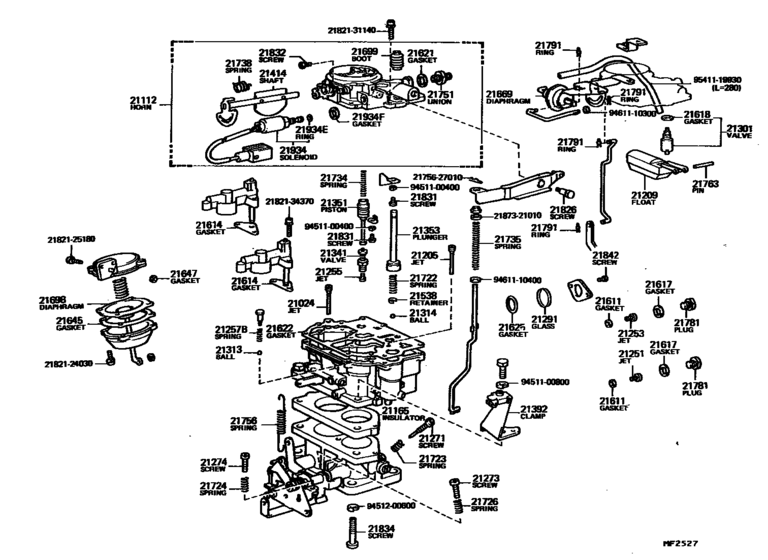

Carburetor ([08.1980 - 10.1981] (8008-8110)2F..CND) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGV
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21024
|
21024
21024-61010
Jet Sub-Assy, 2Nd
[08.1980 - 08.1987] 2F..FJ60 |
21024-61010 |
— | ||
|
21112
|
21112
21112-61112
Horn, Air
[08.1980 - 10.1981] 2F..FJ60..CND |
21112-61112 |
— | ||
|
21165
|
21165
21165-61010
Insulator
[08.1980 - 08.1987] 2F..FJ60 |
21165-61010 |
— | ||
| replacement | |||||
|
21165
|
21165
21165-61310
Insulator
[08.1980 - 08.1987] 2F..FJ60 |
21165-61310 |
— | ||
|
21205
|
21205
21205-61011 Jet Sub-Assy, Slow[08.1980 - 08.1987] 2F..FJ60 |
21205-61011 |
US $10.63 |
||
|
21209
|
21209
21209-33011
Float Sub-Assy
[08.1980 - 08.1987] 2F..FJ60 |
21209-33011 |
— | ||
|
21251
|
21251
90999-41138
Jet, 1St Main
[08.1980 - 10.1981] 2F..FJ60..CND ID=1.38 |
90999-41138 |
— | ||
|
21253
|
21253
90999-42200
Jet, 2Nd Main
[08.1980 - 08.1987] 2F..FJ60 ID=2.00 |
90999-42200 |
— | ||
|
21255
|
21255
90999-43080 Jet, PowerPOWER [08.1980 - 08.1987] 2F..FJ60 ID=0.80 |
90999-43080 |
US $6.41 |
||
|
21257B
|
21257B
21864-26020
Spring(For Pump Jet)
[08.1980 - 08.1987] 2F..FJ60 |
21864-26020 |
— | ||
|
21271
|
21271
21271-61061 Screw, Idle AdjustingIDLE ADJUSTING [08.1980 - 10.1981] 2F..FJ60..CND |
21271-61061 |
US $14.56 |
||
| replacement | |||||
|
21271
|
21271
21271-61110
Screw, Idle Adjusting
[08.1980 - 10.1981] 2F..FJ60..CND |
21271-61110 |
— | ||
|
21273
|
21273
21273-38010 Screw, Throttle Adjusting[08.1980 - 10.1981] 2F..FJ60..CND |
21273-38010 |
US $3.64 |
||
|
21274
|
21274
21273-30052
Screw, 1St Idle Adjusting
[08.1980 - 10.1981] 2F..FJ60..CND |
21273-30052 |
— | ||
| replacement | |||||
|
21274
|
21274
21272-61140 Screw, 1St Idle Adjusting[08.1980 - 10.1981] 2F..FJ60..CND |
21272-61140 |
US $2.77 |
||
|
21291
|
21291
21291-34320
Glass, Level Gage
[08.1980 - 08.1987] 2F..FJ60 |
21291-34320 |
— | ||
|
21301
|
21301
21301-61050
Valve Sub-Assy, Needle
[08.1980 - 10.1981] 2F..FJ60..CND |
21301-61050 |
— | ||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[08.1980 - 08.1987] 2F..FJ60 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[08.1980 - 08.1987] 2F..FJ60 |
21314-11020 |
US $3.44 |
||
|
21341
|
21341
21304-61060
Valve, Power
[08.1980 - 08.1987] 2F..FJ60 |
21304-61060 |
— | ||
|
21351
|
21351
21351-34030
Piston, Power
[08.1980 - 08.1987] 2F..FJ60 |
21351-34030 |
— | ||
|
21353
|
21353
21353-61020
Plunger, Pump
[08.1980 - 08.1987] 2F..FJ60 |
21353-61020 |
— | ||
|
21392
|
21392
21392-61020
Clamp, Choke Wire
[08.1980 - 08.1987] 2F..FJ60 |
21392-61020 |
— | ||
|
21414
|
21414
21054-61020 Shaft, Choke[08.1980 - 10.1981] 2F..FJ60..CND |
21054-61020 |
US $25.19 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[08.1980 - 08.1987] 2F..FJ60 |
21538-31010 |
US $3.85 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[08.1980 - 08.1987] 2F..FJ60 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-60200
Gasket, Venturi
[08.1980 - 08.1987] 2F..FJ60 |
21614-60200 |
— | ||
| replacement | |||||
|
21614
|
21614
21614-61310 Gasket, Venturi[08.1980 - 08.1987] 2F..FJ60 |
21614-61310 |
US $2.62 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[08.1980 - 08.1987] 2F..FJ60 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[08.1980 - 08.1987] 2F..FJ60 |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[08.1980 - 08.1987] 2F..FJ60 |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-61010
Gasket, Air Horn
[08.1980 - 08.1987] 2F..FJ60 |
21622-61010 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-61310
Gasket, Air Horn
[08.1980 - 08.1987] 2F..FJ60 |
21622-61310 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[08.1980 - 08.1987] 2F..FJ60 |
21655-60200 |
US $9.90 |
||
|
21645
|
21645
21645-33080
Gasket, Diaphragm, Cap
[08.1980 - 08.1987] 2F..FJ60 |
21645-33080 |
— | ||
| replacement | |||||
|
21645
|
21645
21645-41010
Gasket, Diaphragm, Cap
[08.1980 - 08.1987] 2F..FJ60 |
21645-41010 |
— | ||
|
21647
|
21647
21649-33080
Gasket, Diaphragm Housing Cap
[08.1980 - 08.1987] 2F..FJ60 |
21649-33080 |
— | ||
|
21669
|
21669
21669-61011
Diaphragm Sub-Assy
[08.1980 - 10.1981] 2F..FJ60..CND |
21669-61011 |
— | ||
|
21698
|
21698
21669-61100 Diaphragm[08.1980 - 08.1987] 2F..FJ60 |
21669-61100 |
US $51.11 |
||
|
21699
|
21699
21699-61010
Boot(For Pump Plunger)
[08.1980 - 08.1987] 2F..FJ60 |
21699-61010 |
— | ||
|
21722
|
21722
21722-60200
Spring, Pump Damping
[08.1980 - 08.1987] 2F..FJ60 |
21722-60200 |
— | ||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[08.1980 - 10.1981] 2F..FJ60..CND |
21723-21030 |
US $3.72 |
||
|
21724
|
21724
21723-21030 Spring, Idle Adjusting[08.1980 - 10.1981] 2F..FJ60..CND |
21723-21030 |
US $3.72 |
||
|
21726
|
21726
21723-11041 Spring, Idle Adjusting[08.1980 - 10.1981] 2F..FJ60..CND |
21723-11041 |
US $5.53 |
||
|
21734
|
21734
21734-21030
Spring, Power Piston
[08.1980 - 08.1987] 2F..FJ60 |
21734-21030 |
— | ||
|
21735
|
21735
21735-44010
Spring, Pump Arm
[08.1980 - 08.1987] 2F..FJ60 |
21735-44010 |
— | ||
|
21738
|
21738
21738-60070
Spring, Choke Valve Relief
[08.1980 - 10.1985] 2F..FJ60 |
21738-60070 |
— | ||
|
21751
|
21751
21894-61020
Union, Nipple
[08.1980 - 08.1987] 2F..FJ60 |
21894-61020 |
— | ||
|
21756
|
21756
21756-61010
Spring, Back(For Throttle Shaft)
[08.1980 - 08.1987] 2F..FJ60 |
21756-61010 |
— | ||
|
21763
|
21763
21763-38010 Pin, Float Lever[08.1980 - 08.1987] 2F..FJ60 |
21763-38010 |
US $3.93 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[08.1980 - 04.1986] 2F..FJ60 |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[08.1980 - 04.1986] 2F..FJ60 |
21781-16510 |
— | ||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[08.1980 - 08.1987] 2F..FJ60 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[08.1980 - 08.1987] 2F..FJ60 |
21791-13010 |
US $3.32 |
||
|
21826
|
21826
21826-24470
Screw, Pump Arm Set
[08.1980 - 08.1987] 2F..FJ60 |
21826-24470 |
— | ||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[08.1980 - 04.1986] 2F..FJ60 |
21842-33010 |
— | ||
|
21832
|
21832
21832-33010 Screw(For Choke Lever Adapter Set)[08.1980 - 08.1987] 2F..FJ60 |
21832-33010 |
US $4.08 |
||
|
21834
|
21834
21834-31140
Screw, Set, No.2(For Carburetor Body Set)
[08.1980 - 08.1987] 2F..FJ60 |
21834-31140 |
— | ||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[08.1980 - 08.1987] 2F..FJ60 |
21842-33010 |
— | ||
|
21934
|
21934
21062-61021 Solenoid, Throttle ValveTHROTTLE VALVE [08.1980 - 10.1981] 2F..FJ60..CND |
21062-61021 |
US $160.16 |
||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[08.1980 - 08.1987] 2F..FJ60 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21649-38010 Gasket[08.1980 - 08.1987] 2F..FJ60 |
21649-38010 |
US $3.14 |
||
|
2175627010
|
2175627010
21756-27010
Spring, Back(for Throttle Shaft)
|
21756-27010 |
— | ||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $1.41 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2182134370
|
2182134370
21821-34370 Screw, 2nd Throttle Valve Set |
21821-34370 |
US $2.62 |
||
|
2187321010
|
2187321010
21873-21010
Washer, Plunger
|
21873-21010 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
