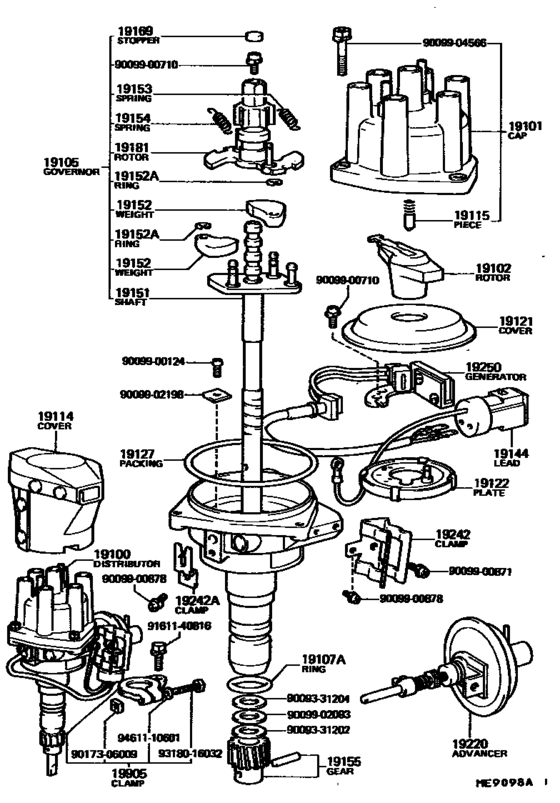

Distributor ([08.1980 - 10.1981] (8008-8110)2F..CND) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGV
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-61092
Distributor Assy
[08.1980 - 10.1981] 2F..FJ60..CND |
19100-61092 |
— | ||
|
19101
|
19101
19101-61101
Cap Sub-Assy, Distributor
[08.1980 - 10.1981] 2F..FJ60..CND |
19101-61101 |
— | ||
|
19102
|
19102
19102-45150 Rotor Sub-Assy, DistributorDISTRIBUTOR [09.1981 - 10.1981] 2F..FJ60..CND |
19102-45150 |
from US $16.23 |
||
|
19102
|
19102
19102-61091 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 09.1981] 2F..FJ60..CND |
19102-61091 |
US $17.76 |
||
| replacement | |||||
|
19102
|
19102
19102-45150 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 09.1981] 2F..FJ60..CND |
19102-45150 |
from US $16.23 |
||
|
19105
|
19105
19105-61091
Governor Sub-Assy
[08.1980 - 10.1981] 2F..FJ60..CND |
19105-61091 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1980 - 08.1987] 2F..FJ60 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1980 - 08.1987] 2F..FJ60 |
90099-14090 |
from US $2.80 |
||
|
19114
|
19114
19114-61011
Cover, Water Proof(For Distributor)
[08.1980 - 10.1981] 2F..FJ60..CND |
19114-61011 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1980 - 08.1987] 2F..FJ60 |
19115-50010 |
— | ||
|
19121
|
19121
19121-41140
Cover, Dust Proof
[08.1980 - 10.1981] 2F..FJ60..CND |
19121-41140 |
— | ||
|
19122
|
19122
19122-45070
Plate, Stationary, Distributor
[08.1980 - 10.1981] 2F..FJ60..CND |
19122-45070 |
— | ||
|
19127
|
19127
19127-41141 Packing, Dust Proof[08.1980 - 10.1981] 2F..FJ60..CND |
19127-41141 |
US $3.84 |
||
|
19144
|
19144
19144-61091
Lead, Distributor Breaker
[08.1980 - 10.1981] 2F..FJ60..CND |
19144-61091 |
— | ||
|
19151
|
19151
19151-61100 Shaft, GovernorGOVERNOR [08.1980 - 10.1981] 2F..FJ60..CND |
19151-61100 |
US $48.63 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1980 - 08.1987] 2F..FJ60 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1980 - 08.1987] 2F..FJ60 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07104
Ring, Snap(For Governor Weight)
[08.1980 - 10.1981] 2F..FJ60..CND |
90099-07104 |
— | ||
|
19153
|
19153
19153-61091
Spring, Governor, A
[08.1980 - 10.1981] 2F..FJ60..CND |
19153-61091 |
— | ||
|
19154
|
19154
19154-61091
Spring, Governor, B
[08.1980 - 10.1981] 2F..FJ60..CND |
19154-61091 |
— | ||
|
19155
|
19155
19195-61100 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [08.1980 - 08.1987] 2F..FJ60 |
19195-61100 |
US $40.19 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1980 - 05.1987] 2F..FJ60 |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1980 - 05.1987] 2F..FJ60 |
19169-63011 |
— | ||
|
19181
|
19181
19181-61091
Rotor, Distributor, Signal
[08.1980 - 10.1981] 2F..FJ60..CND |
19181-61091 |
— | ||
|
19220
|
19220
19220-61091 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1980 - 10.1981] 2F..FJ60..CND |
19220-61091 |
US $80.08 |
||
|
19242
|
19242
19242-61100
Clamp, Cord
[08.1980 - 10.1981] 2F..FJ60..CND |
19242-61100 |
— | ||
|
19242A
|
19242A
19242-61091
Clamp, Cord, No.2
[08.1980 - 10.1981] 2F..FJ60..CND |
19242-61091 |
— | ||
|
19250
|
19250
19250-61100
Generator Assy, Signal
[08.1980 - 10.1981] 2F..FJ60..CND |
19250-61100 |
— | ||
|
19905
|
19905
19905-40010 Clamp Sub-Assy, Distributor[08.1980 - 10.1981] 2F..FJ60..CND |
19905-40010 |
from US $6.04 |
||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009331204
|
9009331204
90093-31204
Washer, No.2(For Governor Shaft Thrust)
|
90093-31204 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009902093
|
9009902093
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9017306009
|
9017306009
90173-06009
Nut, Square(For Radiator Pipe Clamp)
|
90173-06009 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9318016032
|
9318016032
93180-16032
New Genuine Part
|
93180-16032 |
— | ||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
from US $0.52 |
||
