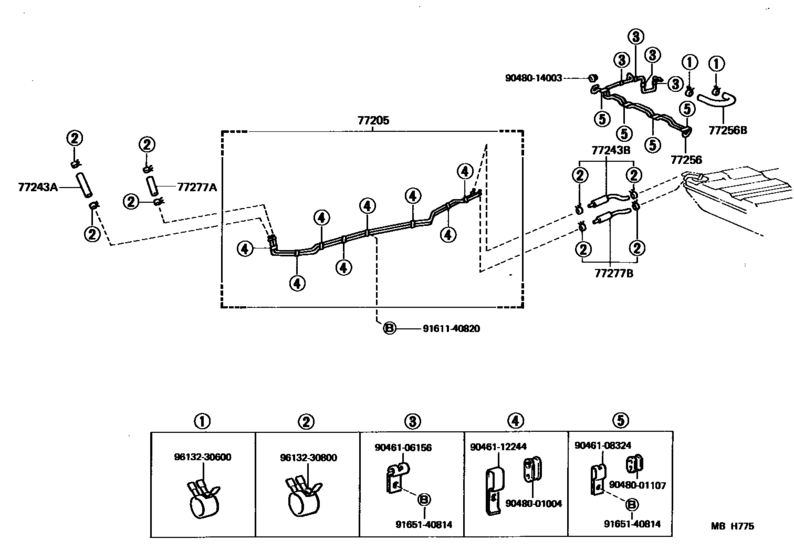

Fuel Tank & Tube ([08.1980 - 10.1981] (8008-8110)FJ60..CND) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGV
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-60060 Tube Sub-Assy, Fuel MainFUEL MAIN [08.1980 - 07.1983] FJ60 |
77205-60060 |
US $119.39 |
||
|
77243A
|
77243A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 02.1987] FJ60 *H,L=380,ID=7.6 |
95332-08040 |
— | ||
| replacement | |||||
|
77243A
|
77243A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1980 - 02.1987] FJ60 *H,L=380,ID=7.6 |
95337-08040 |
US $9.32 |
||
|
77243B
|
77243B
77250-60050
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
77250-60050 |
— | ||
|
77256
|
77256
77244-60140
Tube, Fuel Emission, No.3
[08.1980 - 10.1981] BJ60,FJ60..CND |
77244-60140 |
— | ||
|
77256B
|
77256B
95332-06030
Hose(For Carburetor)
[08.1980 - 10.1981] BJ60,FJ60..CND *H,L=260 |
95332-06030 |
— | ||
| replacement | |||||
|
77256B
|
77256B
95333-06030
Hose, Fuel
[08.1980 - 10.1981] BJ60,FJ60..CND *H,L=260 |
95333-06030 |
— | ||
|
77277A
|
77277A
77250-61030
Hose, Fuel, No.1(For Return Tube, No.1)
[08.1980 - 08.1987] FJ60 |
77250-61030 |
— | ||
|
77277B
|
77277B
77260-60060
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1980 - 08.1987] FJ60 |
77260-60060 |
— | ||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046108324
|
9046108324
90461-08324
New Genuine Part
|
90461-08324 |
— | ||
|
9046112244
|
9046112244
90461-12244
New Genuine Part
|
90461-12244 |
— | ||
|
9048001004
|
9048001004
90480-01004
New Genuine Part
|
90480-01004 |
— | ||
|
9048001107
|
9048001107
90480-01107 Grommet(For Brake Tube) |
90480-01107 |
US $1.97 |
||
|
9048014003
|
9048014003
90480-14003 New Genuine Part |
90480-14003 |
US $1.22 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
