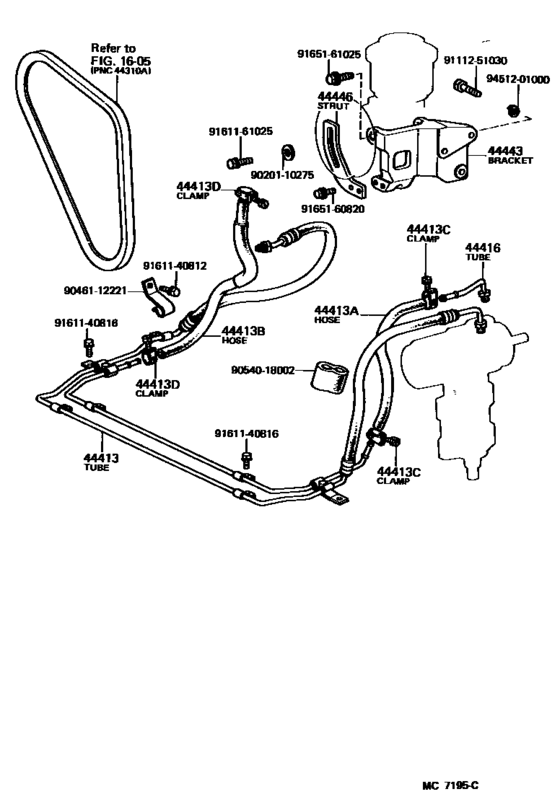

Power Steering Tube ([08.1980 - 10.1981] (8008-8110)FJ60..CND) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGV
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44413
|
44413
44410-60040 Tube, Pressure Feed, No.1PRESSURE FEED, NO.1 [08.1980 - 12.1980] FJ60..CND |
44410-60040 |
US $428.06 |
||
| replacement | |||||
|
44413
|
44413
44410-60041
Tube, Pressure Feed, No.1
[08.1980 - 12.1980] FJ60..CND |
44410-60041 |
— | ||
|
44413
|
44413
44410-60041
Tube, Pressure Feed, No.1
[12.1980 - 10.1981] FJ60..CND |
44410-60041 |
— | ||
|
44413A
|
44413A
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1980 - 10.1981] FJ60..CND |
90445-18089 |
from US $8.97 |
||
|
44413B
|
44413B
90445-18090 Hose, Power Steering Oil Cooler InletPOWER STEERING OIL COOLER INLET [08.1980 - 10.1981] FJ60..CND |
90445-18090 |
US $32.78 |
||
|
44413C
|
44413C
90460-01001 Clamp, Oil Cooler Hose[08.1980 - 10.1981] FJ60..CND |
90460-01001 |
US $10.39 |
||
|
44413D
|
44413D
90460-01001 Clamp, Oil Cooler Hose[08.1980 - 10.1981] FJ60..CND |
90460-01001 |
US $10.39 |
||
|
44416
|
44416
44416-60060
Tube, Return(For Steering Gear Outlet)
[08.1980 - 10.1982] FJ60 |
44416-60060 |
— | ||
| replacement | |||||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[08.1980 - 10.1982] FJ60 |
44416-60061 |
— | ||
|
44443
|
44443
44443-60010
Bracket, Pump
[08.1980 - 10.1981] FJ60..CND |
44443-60010 |
— | ||
|
44446
|
44446
44446-60010
Strut, Adjusting
[08.1980 - 10.1981] FJ60..CND |
44446-60010 |
— | ||
|
9020110275
|
9020110275
90201-10275
New Genuine Part
|
90201-10275 |
— | ||
|
9046112221
|
9046112221
90461-12221
New Genuine Part
|
90461-12221 |
— | ||
|
9054018002
|
9054018002
90540-18002
Cushion(For Pressure Feed Hose)
|
90540-18002 |
— | ||
|
9111251030
|
9111251030
91112-51030
Pin Or Bolt(For Steering Worm Yoke)
|
91112-51030 |
— | ||
| replacement | |||||
|
9111251030
|
9111251030
91112-61032
Pin Or Bolt(For Steering Worm Yoke)
|
91112-61032 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
