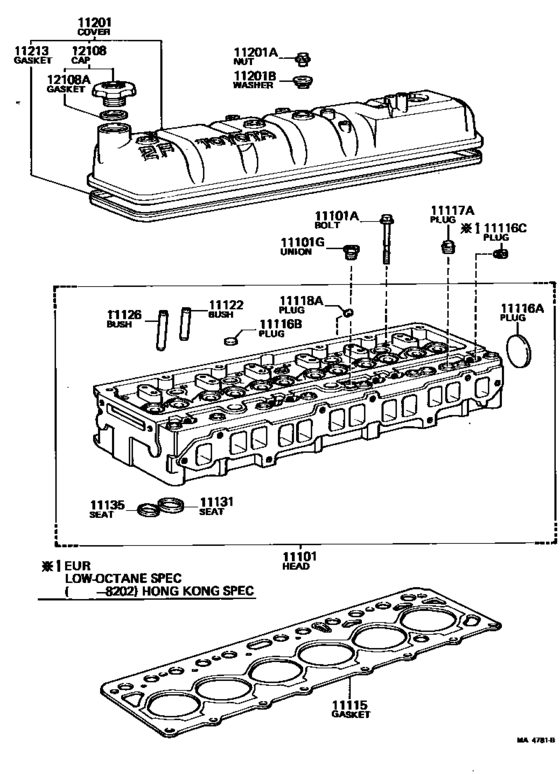

Cylinder Head ([08.1980 - 11.1984] (8008-8411)2F) Diagram Toyota LAND CRUISER
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- FJ60
- body
- WGV
- Roof
- HRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 10.1982
- To
- 05.1983
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-61011
Head Sub-Assy, Cylinder
[08.1980 - 11.1984] 2F..FJ60..GEN |
11101-61011 |
— | ||
|
11101
|
11101
11101-61031
Head Sub-Assy, Cylinder
[08.1980 - 11.1984] 2F..FJ60..EUR; 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
11101-61031 |
— | ||
|
11101A
|
11101A
90910-02050 Bolt(For Cylinder Head Set)[08.1980 - 08.1987] 2F,3F..FJ6# *13-1.75PX120.5-27 |
90910-02050 |
from US $6.63 |
||
|
11101G
|
11101G
90404-16160 Union(For Cylinder Head)[08.1980 - 11.1984] 2F..FJ60 |
90404-16160 |
US $4.27 |
||
|
11115
|
11115
11115-61010 Gasket, Cylinder HeadCYLINDER HEAD [08.1980 - 11.1984] 2F..FJ60 |
11115-61010 |
US $73.75 |
||
|
11116A
|
11116A
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1980 - 08.1987] 2F,3F..FJ6# OD=50 |
96411-45000 |
from US $3.74 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[08.1980 - 08.1987] 2F,3F..FJ6# OD=25; 12HT,2H..HJ6# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
90340-14001 Plug, Tight, No.3[08.1980 - 08.1987] 2F,3F..FJ6#..LHD..GEN LOW-OCTANE SPEC |
90340-14001 |
US $9.68 |
||
|
11117A
|
11117A
90345-54004
Plug, W/head Taper Screw, No.1
[11.1982 - 06.1983] 2F..FJ60 |
90345-54004 |
— | ||
| replacement | |||||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[11.1982 - 06.1983] 2F..FJ60 |
90345-54005 |
from US $3.80 |
||
|
11118A
|
11118A
90334-07004
Plug, Straight, No.1
[08.1980 - 08.1984] 2F..FJ60 |
90334-07004 |
— | ||
|
11122
|
11122
11122-61011 Bush, Intake Valve Guide[08.1980 - 08.1987] 2F,3F..FJ6# STD,STD |
11122-61011 |
US $12.93 |
||
|
11122
|
11122
11123-61011 Bush, Intake Valve Guide[08.1980 - 08.1987] 2F,3F..FJ6# O/S 0.05,O/S 0.05 |
11123-61011 |
US $12.23 |
||
|
11126
|
11126
11126-61011 Bush, Exhaust Valve Guide[08.1980 - 08.1987] 2F,3F..FJ6# STD,STD |
11126-61011 |
US $12.93 |
||
|
11126
|
11126
11127-61011 Bush, Exhaust Valve Guide[08.1980 - 08.1987] 2F,3F..FJ6# O/S 0.05,O/S 0.05 |
11127-61011 |
US $7.16 |
||
|
11131
|
11131
11131-60010 Seat, Intake ValveINTAKE VALVE [08.1980 - 08.1984] 2F..FJ60..ARL,EUR STD; 2F..FJ60..LHD..GEN STD,LOW-OCTANE SPEC |
11131-60010 |
US $22.86 |
||
|
11131
|
11131
11132-60030 Seat, Intake ValveINTAKE VALVE [08.1980 - 08.1984] 2F..FJ60..ARL,EUR O/S 0.03; 2F..FJ60..LHD..GEN O/S 0.03,LOW-OCTANE SPEC |
11132-60030 |
US $33.78 |
||
|
11135
|
11135
11135-60010 Seat, Exhaust Valve[08.1980 - 11.1984] 2F..FJ60..ARL,EUR STD,STD; 2F..FJ60..LHD..GEN STD,STD,LOW-OCTANE SPEC |
11135-60010 |
US $18.70 |
||
|
11135
|
11135
11136-60030 Seat, Exhaust Valve[08.1980 - 11.1984] 2F..FJ60..ARL,EUR O/S 0.03,O/S 0.03; 2F..FJ60..LHD..GEN O/S 0.03,O/S 0.03,LOW-OCTANE SPEC |
11136-60030 |
US $38.88 |
||
|
11201
|
11201
11201-69045
Cover Sub-Assy, Cylinder Head
[08.1980 - 11.1984] 2F..FJ60 |
11201-69045 |
— | ||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[08.1980 - 08.1987] 2F,3F..FJ6#; 12HT,2H..HJ6# |
90176-08014 |
from US $2.66 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[08.1980 - 08.1987] 2F,3F..FJ6#; 12HT,2H..HJ6# |
90210-13001 |
from US $2.45 |
||
|
11213
|
11213
11213-61011 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [08.1980 - 11.1984] 2F..FJ60 |
11213-61011 |
US $31.27 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[08.1980 - 01.1983] 3B..BJ60; 2F..FJ60; 2H..HJ60 |
12180-13010 |
from US $16.11 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1980 - 08.1987] 3B..BJ60; 2F..FJ60; 12HT,2H..HJ6# |
90430-37140 |
from US $1.14 |
||
