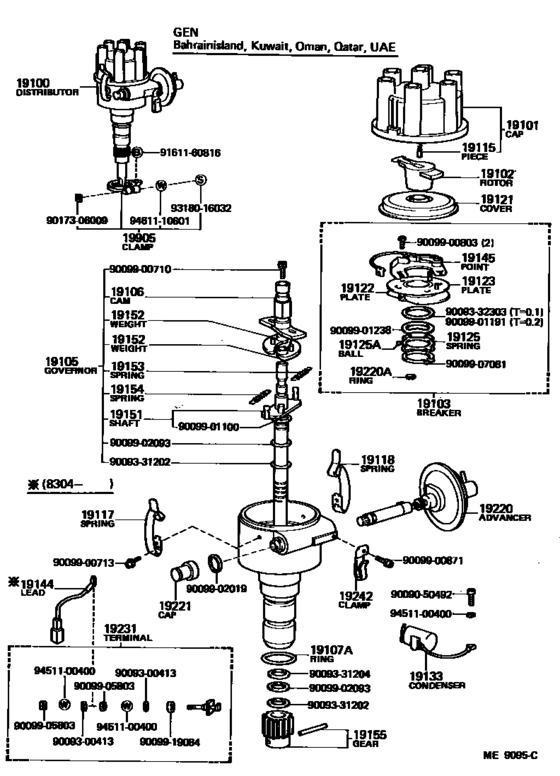

Distributor ([08.1980 - ] (8008- )2F,3F..GEN,ME) Diagram Toyota LAND CRUISER
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- FJ60
- body
- WGV
- Roof
- HRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 10.1982
- To
- 05.1983
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-61010
Distributor Assy
[08.1980 - 11.1984] 2F..FJ60..GEN |
19100-61010 |
— | ||
| replacement | |||||
|
19100
|
19100
19100-61080 Distributor Assy[08.1980 - 11.1984] 2F..FJ60..GEN |
19100-61080 |
US $384.54 |
||
|
19100
|
19100
19100-61040 Distributor Assy[08.1980 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19100-61040 |
US $455.73 |
||
| replacement | |||||
|
19100
|
19100
19100-61140
Distributor Assy
[08.1980 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19100-61140 |
— | ||
|
19101
|
19101
19101-41010 Cap Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19101-41010 |
from US $33.08 |
||
|
19102
|
19102
19102-41010
Rotor Sub-Assy, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19102-41010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-61030 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19102-61030 |
from US $14.80 |
||
|
19103
|
19103
19103-41030
Breaker Sub-Assy, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19103-41030 |
— | ||
|
19105
|
19105
19105-61011 Governor Sub-Assy[05.1982 - 11.1984] 2F..FJ60..GEN |
19105-61011 |
US $115.02 |
||
|
19105
|
19105
19105-61040
Governor Sub-Assy
[08.1980 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19105-61040 |
— | ||
|
19106
|
19106
19106-41010 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19106-41010 |
US $44.99 |
||
|
19106
|
19106
19106-60070 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 11.1984] 2F..FJ60..GEN |
19106-60070 |
US $22.42 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1980 - 08.1987] 2F,3F..FJ6# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1980 - 08.1987] 2F,3F..FJ6# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1980 - 08.1987] 2F,3F..FJ6# |
19115-50010 |
— | ||
|
19117
|
19117
19117-41010
Spring, Distributor Cap, A
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19117-41010 |
— | ||
|
19118
|
19118
19118-60070
Spring, Distributor Cap, B
[08.1980 - 08.1987] 2F,3F..FJ6# |
19118-60070 |
— | ||
|
19121
|
19121
19121-30030
Cover, Dust Proof
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19121-30030 |
— | ||
|
19122
|
19122
19122-39041
Plate, Stationary, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19122-39041 |
— | ||
|
19123
|
19123
19123-41011
Plate, Distributor Breaker
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19123-41011 |
— | ||
|
19125
|
19125
19125-30010
Spring(For Distributor Stationary Plate)
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19125-30010 |
— | ||
|
19125A
|
19125A
90099-12003
Ball, Distributor Stationary Plate
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
90099-12003 |
— | ||
|
19133
|
19133
90099-52009
Condenser, Distributor
[08.1980 - 11.1984] 2F..FJ60..GEN |
90099-52009 |
— | ||
| replacement | |||||
|
19133
|
19133
19133-60040 Condenser, DistributorDISTRIBUTOR [08.1980 - 11.1984] 2F..FJ60..GEN |
19133-60040 |
from US $6.33 |
||
|
19144
|
19144
19144-61010
Lead, Distributor Breaker
[04.1983 - 08.1987] 2F,3F..FJ6#..GEN |
19144-61010 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[08.1980 - 08.1987] 2F,3F..FJ6# |
19145-26060 |
from US $9.35 |
||
|
19151
|
19151
19151-60061 Shaft, GovernorGOVERNOR [08.1980 - 11.1984] 2F..FJ60..GEN |
19151-60061 |
US $50.52 |
||
| replacement | |||||
|
19151
|
19151
19151-61150 Shaft, GovernorGOVERNOR [08.1980 - 11.1984] 2F..FJ60..GEN |
19151-61150 |
US $46.01 |
||
|
19152
|
19152
19152-87104
Weight, Governor
[08.1980 - 11.1984] 2F..FJ60..GEN |
19152-87104 |
— | ||
|
19153
|
19153
19153-61010 Spring, Governor, AGOVERNOR, A [05.1982 - 11.1984] 2F..FJ60..GEN |
19153-61010 |
US $5.39 |
||
|
19153
|
19153
19153-61040 Spring, Governor, AGOVERNOR, A [08.1980 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19153-61040 |
US $5.10 |
||
|
19154
|
19154
19153-61040 Spring, Governor, AGOVERNOR, A [08.1980 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19153-61040 |
US $5.10 |
||
|
19154
|
19154
19154-61010
Spring, Governor, B
[05.1982 - 11.1984] 2F..FJ60..GEN |
19154-61010 |
— | ||
|
19155
|
19155
19195-60040
Gear, Spiral, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6# |
19195-60040 |
— | ||
|
19220
|
19220
19220-60072
Advancer Assy, Vacuum, Distributor
[05.1982 - 11.1984] 2F..FJ60..LHD..GEN LOW-OCTANE SPEC |
19220-60072 |
— | ||
|
19220
|
19220
19220-61011 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [05.1982 - 11.1984] 2F..FJ60..GEN |
19220-61011 |
US $50.52 |
||
|
19220A
|
19220A
90099-07104
Ring, Snap(For Governor Weight)
[08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
90099-07104 |
— | ||
|
19221
|
19221
19221-30030
Cap, Adjuster, Distributor
[08.1980 - 02.1987] 2F,3F..FJ6#..GEN |
19221-30030 |
— | ||
| replacement | |||||
|
19221
|
19221
19221-60040
Cap, Adjuster, Distributor
[08.1980 - 02.1987] 2F,3F..FJ6#..GEN |
19221-60040 |
— | ||
|
19231
|
19231
19231-45020 Terminal, DistributorDISTRIBUTOR [08.1980 - 08.1987] 2F,3F..FJ6#..GEN |
19231-45020 |
US $2.10 |
||
|
19242
|
19242
19242-26250 Clamp, Cord[08.1980 - 08.1987] 2F,3F..FJ6# |
19242-26250 |
US $2.04 |
||
|
19905
|
19905
19905-40010 Clamp Sub-Assy, Distributor[08.1980 - 08.1987] 2F,3F..FJ6# |
19905-40010 |
from US $6.04 |
||
|
9009050492
|
9009050492
90090-50492
New Genuine Part
|
90090-50492 |
— | ||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009331204
|
9009331204
90093-31204
Washer, No.2(For Governor Shaft Thrust)
|
90093-31204 |
— | ||
|
9009332303
|
9009332303
90093-32303
New Genuine Part
|
90093-32303 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900713
|
9009900713
90099-00713
New Genuine Part
|
90099-00713 |
— | ||
|
9009900803
|
9009900803
90099-00803
New Genuine Part
|
90099-00803 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009901100
|
9009901100
90099-01100
New Genuine Part
|
90099-01100 |
— | ||
|
9009901191
|
9009901191
90099-01191
New Genuine Part
|
90099-01191 |
— | ||
|
9009901238
|
9009901238
90099-01238
New Genuine Part
|
90099-01238 |
— | ||
|
9009902019
|
9009902019
90099-02019
New Genuine Part
|
90099-02019 |
— | ||
|
9009902093
|
9009902093
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9009907081
|
9009907081
90099-07081
Ring, Snap(For Distributor Stationary Plate)
|
90099-07081 |
— | ||
|
9009919084
|
9009919084
90099-19084
New Genuine Part
|
90099-19084 |
— | ||
|
9017306009
|
9017306009
90173-06009
Nut, Square(For Radiator Pipe Clamp)
|
90173-06009 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9318016032
|
9318016032
93180-16032
New Genuine Part
|
93180-16032 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
from US $0.52 |
||
