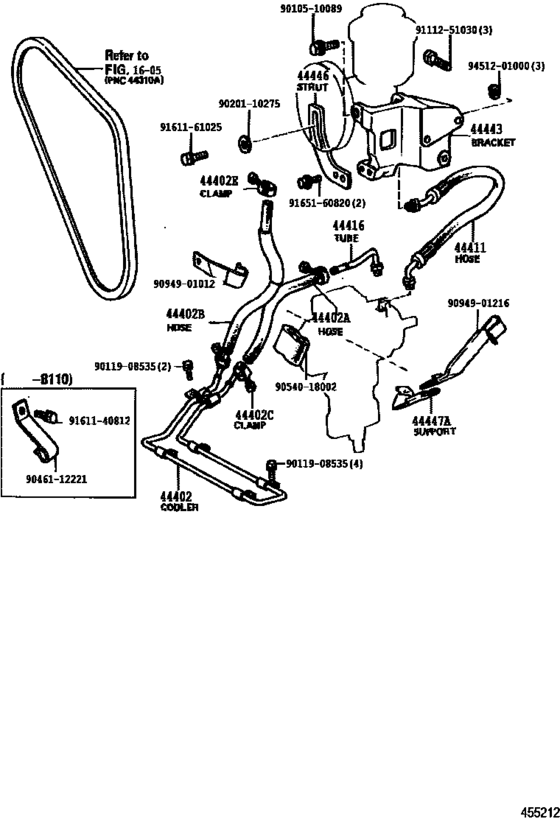

Power Steering Tube ([08.1980 - ] (8008- )FJ6#..RHD) Diagram Toyota LAND CRUISER
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- FJ60
- body
- WGG
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1982
- To
- 11.1984
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44402
|
44402
44420-60060
Cooler Sub-Assy, Power Steering Oil, No.1
[08.1980 - 01.1984] FJ60..RHD |
44420-60060 |
— | ||
|
44402A
|
44402A
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1980 - 01.1984] FJ60,HJ60..RHD |
90445-18089 |
from US $8.97 |
||
|
44402B
|
44402B
90445-18085 Hose, Power Steering Oil Cooler Outlet[10.1981 - 08.1987] FJ6#..RHD |
90445-18085 |
US $20.82 |
||
|
44402C
|
44402C
90460-01001 Clamp, Oil Cooler Hose[08.1980 - 01.1984] FJ60,HJ60..RHD |
90460-01001 |
US $10.39 |
||
|
44402E
|
44402E
90460-01001 Clamp, Oil Cooler Hose[08.1980 - 01.1984] FJ60,HJ60..RHD |
90460-01001 |
US $10.39 |
||
|
44411
|
44411
44411-60111 Hose, Pressure FeedPRESSURE FEED [12.1980 - 11.1984] FJ60..RHD |
44411-60111 |
US $222.77 |
||
|
44416
|
44416
44416-60060
Tube, Return(For Steering Gear Outlet)
[02.1982 - 01.1984] FJ60,HJ60 |
44416-60060 |
— | ||
| replacement | |||||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[02.1982 - 01.1984] FJ60,HJ60 |
44416-60061 |
— | ||
|
44443
|
44443
44443-60010
Bracket, Pump
[08.1980 - 11.1984] FJ60 |
44443-60010 |
— | ||
|
44446
|
44446
44446-60010
Strut, Adjusting
[08.1980 - 11.1984] FJ60 |
44446-60010 |
— | ||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $6.45 |
||
|
9011908535
|
9011908535
90119-08535 New Genuine Part |
90119-08535 |
US $2.33 |
||
|
9020110275
|
9020110275
90201-10275
New Genuine Part
|
90201-10275 |
— | ||
|
9046112221
|
9046112221
90461-12221
New Genuine Part
|
90461-12221 |
— | ||
|
9054018002
|
9054018002
90540-18002
Cushion(For Pressure Feed Hose)
|
90540-18002 |
— | ||
|
9094901012
|
9094901012
90949-01012 New Genuine Part |
90949-01012 |
US $7.72 |
||
|
9094901216
|
9094901216
90949-01216 New Genuine Part |
90949-01216 |
US $7.13 |
||
|
9111251030
|
9111251030
91112-51030
Pin Or Bolt(For Steering Worm Yoke)
|
91112-51030 |
— | ||
| replacement | |||||
|
9111251030
|
9111251030
91112-61032
Pin Or Bolt(For Steering Worm Yoke)
|
91112-61032 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
