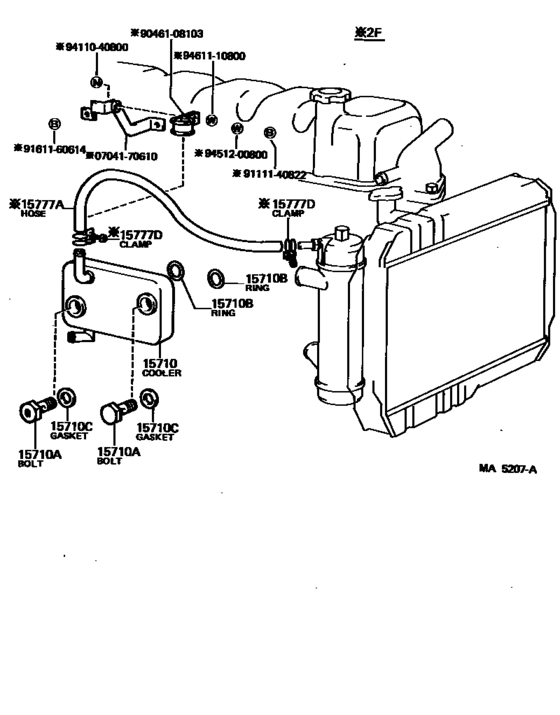

Engine Oil Cooler ([11.1980 - ] (8011- )2F,3F..IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-61020 Cooler Assy, Oil[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
15710-61020 |
US $844.48 |
||
|
15710A
|
15710A
90401-18083
Bolt, Union(For Oil Cooler)
[08.1980 - 10.1982] 2F..FJ60 |
90401-18083 |
— | ||
|
15710A
|
15710A
90401-18084
Bolt, Union(For Oil Cooler)
[08.1980 - 10.1982] 2F..FJ60 W/SWITCH HOLE |
90401-18084 |
— | ||
|
15710B
|
15710B
90301-21176 Ring, O(For Oil Cooler)[08.1980 - 10.1985] 2F,3F..FJ6#; 2H..HJ60 |
90301-21176 |
from US $3.29 |
||
|
15710C
|
15710C
90430-18012 Gasket(For Oil Pump Outlet Pipe)[08.1980 - 10.1985] 2F,3F..FJ6# |
90430-18012 |
US $3.05 |
||
|
15777A
|
15777A
07041-54612
Hose, Oil Cooler
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07041-54612 |
— | ||
|
15777D
|
15777D
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose)[04.1981 - 11.1984] 2F..FJ6# LWR PIPE SIDE |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
15777D
|
15777D
90467-21010 Clip(For Ventilation Hose No.2)[04.1981 - 11.1984] 2F..FJ6# LWR PIPE SIDE |
90467-21010 |
from US $2.43 |
||
|
15777D
|
15777D
96111-10250
Clamp Or Clip, Hose(For Oil Cooler Hose)
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
96111-10250 |
— | ||
| replacement | |||||
|
15777D
|
15777D
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[11.1980 - 11.1984] 2F..FJ6#..IV4 |
96112-10250 |
from US $2.22 |
||
|
15777D
|
15777D
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[04.1981 - 10.1985] 2F,3F..FJ6# |
96112-10250 |
from US $2.22 |
||
|
0704170610
|
0704170610
07041-70610
New Genuine Part
|
07041-70610 |
— | ||
|
9046108103
|
9046108103
90461-08103
New Genuine Part
|
90461-08103 |
— | ||
|
9111140822
|
9111140822
91111-40822
New Genuine Part
|
91111-40822 |
— | ||
| replacement | |||||
|
9111140822
|
9111140822
91111-50822
New Genuine Part
|
91111-50822 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
