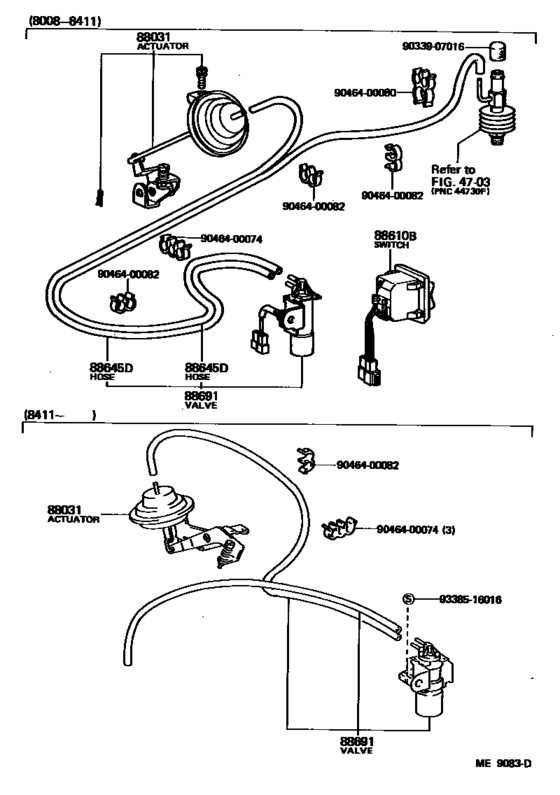

Heating & Air Conditioning - Vacuum Piping ([08.1980 - ] (8008- )FJ6#) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-60010
Actuator Set, Idle-Up
[08.1980 - 11.1984] FJ6# |
88031-60010 |
— | ||
|
88610B
|
88610B
88610-90A02
Switch Assy, Idle Up Device
[08.1980 - 10.1981] FJ60 |
88610-90A02 |
— | ||
|
88645D
|
88645D
95411-10095
Hose, Vacuum, No.6 (For Front Drive Shift)
[08.1980 - 11.1984] FJ60 ＊Ｈ，Ｌ＝７５０，マーク＝＃０ |
95411-10095 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1980 - 11.1984] FJ60 ＊Ｈ，Ｌ＝７５０，マーク＝＃０ |
90999-92004 |
from US $8.76 |
||
|
88645D
|
88645D
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[08.1980 - 11.1984] FJ60 ＊Ｈ，Ｌ＝４８０，マーク＝＃＊ |
95411-19960 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[08.1980 - 11.1984] FJ60 ＊Ｈ，Ｌ＝４８０，マーク＝＃＊ |
90999-92003 |
— | ||
|
88691
|
88691
88690-90A00
Valve, Magnet (For Idle Up Device)
[08.1980 - 11.1984] FJ6# |
88690-90A00 |
— | ||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.87 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400080
|
9046400080
90464-00080 New Genuine Part |
90464-00080 |
US $4.37 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
