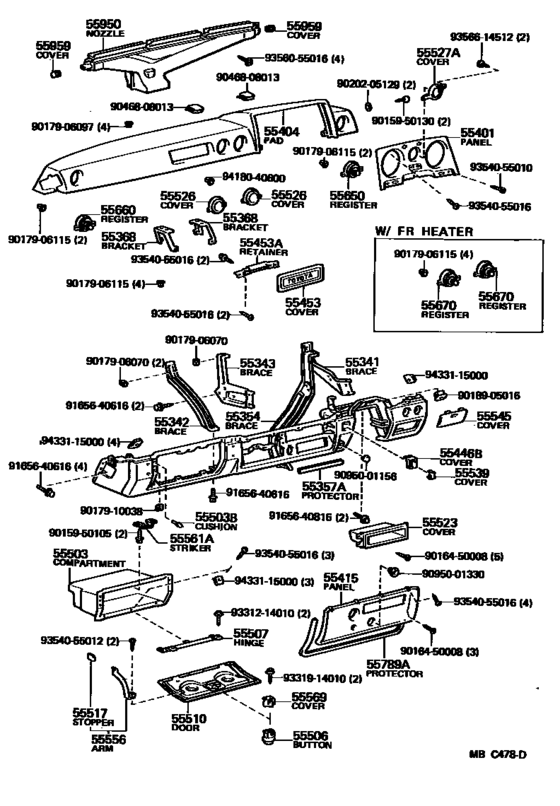

Instrument Panel & Glove Compartment ([11.1980 - ] (8011- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55341
|
55341
55341-90A00 Brace, Instrument Panel, No.1[08.1980 - 08.1987] FJ6# |
55341-90A00 |
US $96.10 |
||
|
55342
|
55342
55342-90A00 Brace, Instrument Panel, No.2[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55342-90A00 |
US $52.71 |
||
|
55343
|
55343
55344-90A00 Brace, Instrument Panel, No.3[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55344-90A00 |
US $59.84 |
||
|
55354
|
55354
55351-90A00 Brace, Instrument Panel To Floor[08.1980 - 08.1987] FJ6# |
55351-90A00 |
US $80.08 |
||
| replacement | |||||
|
55354
|
55354
55351-90A02 Brace, Instrument Panel To Floor[08.1980 - 08.1987] FJ6# |
55351-90A02 |
US $81.54 |
||
|
55357A
|
55357A
55357-90A00 Protector, Edge, No.1[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55357-90A00 |
US $4.02 |
||
|
55368
|
55368
55366-90A00
Bracket, Radio Tuner Mounting
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# RH |
55366-90A00 |
— | ||
|
55368
|
55368
55368-90A00
Bracket, Radio Tuner Mounting
[08.1980 - 08.1987] BJ6#,FJ6#,HJ60 LH |
55368-90A00 |
— | ||
|
55401
|
55401
55410-90A02
Panel Sub-Assy, Instrument Cluster Finish
[11.1980 - 10.1982] FJ60..IV4 |
55410-90A02 |
— | ||
|
55404
|
55404
55401-90A00-03
Safety Pad Sub-Assy, Instrument Panel, Upper
[11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55401-90A00-03 |
— | ||
|
55415
|
55415
55420-90A00-05 Panel, Instrument Cluster Finish, Center[11.1980 - 08.1987] FJ6#..IV4 BEIGE,BEIGE |
55420-90A00-05 |
US $1,790.88 |
||
|
55453
|
55453
55522-90A00
Cover, Radio Tuner Opening
[11.1980 - 08.1987] FJ6#..IV4 |
55522-90A00 |
— | ||
|
55453A
|
55453A
55417-90A00 Retainer, Radio Tuner Opening, No.1RADIO TUNER OPENING, NO.1 [11.1980 - 08.1987] FJ6#..IV4 |
55417-90A00 |
US $9.17 |
||
|
55503
|
55503
55581-90A00
Compartment Sub-Assy, Glove
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55581-90A00 |
— | ||
| replacement | |||||
|
55503
|
55503
55581-90A04
Compartment, Glove
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55581-90A04 |
— | ||
|
55503B
|
55503B
90541-03015 Cushion, Instrument Panel Box[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90541-03015 |
from US $1.52 |
||
|
55506
|
55506
55560-12020
Lock Sub-Assy, Glove Compartment Door
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55560-12020 |
— | ||
|
55507
|
55507
55505-90A00
Hinge Sub-Assy, Glove Compartment Door
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55505-90A00 |
— | ||
|
55510
|
55510
55501-90A00-03
Door Assy, Glove Compartment
[11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55501-90A00-03 |
— | ||
| replacement | |||||
|
55510
|
55510
55501-90A00-13
Door Assy, Glove Compartment
[11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55501-90A00-13 |
— | ||
|
55510
|
55510
55501-90A00-05
Door Assy, Glove Compartment
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# BEIGE,BEIGE,TRIM4# |
55501-90A00-05 |
— | ||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55517-14010 |
— | ||
|
55523
|
55523
55523-90A00
Cover, Heater Control Opening
[11.1980 - 11.1984] FJ6#..IV4 |
55523-90A00 |
— | ||
|
55526
|
55526
55526-90A00
Cover, Instrument Panel Register Opening
[11.1980 - 11.1984] FJ6#..IV4 |
55526-90A00 |
— | ||
|
55545
|
55545
55545-90A00-03
Cover, Fuse Box Opening
[11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55545-90A00-03 |
— | ||
| replacement | |||||
|
55545
|
55545
55545-90A01-03 Cover, Fuse Box Opening (Gray color)[11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55545-90A01-03 |
from US $34.61 |
||
|
55545
|
55545
55545-90A00-05
Cover, Fuse Box Opening
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# BEIGE,BEIGE,TRIM4# |
55545-90A00-05 |
— | ||
| replacement | |||||
|
55545
|
55545
55545-90A01-03 Cover, Fuse Box Opening (Gray color)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# BEIGE,BEIGE,TRIM4# |
55545-90A01-03 |
from US $34.61 |
||
|
55556
|
55556
55556-90A00 Arm, Glove Compartment Door Check[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55556-90A00 |
US $30.28 |
||
|
55561A
|
55561A
55561-90A00
Striker, Glove Compartment Door Lock
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55561-90A00 |
— | ||
|
55569
|
55569
55569-90A00-03 Cover, Glove Compartment Door LockGLOVE COMPARTMENT DOOR LOCK [11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55569-90A00-03 |
US $9.17 |
||
| replacement | |||||
|
55569
|
55569
55569-90A00-23 Cover, Glove Compartment Door Lock[11.1980 - 11.1984] FJ6#..IV4 SHADOW GRAY,GRAY |
55569-90A00-23 |
US $9.17 |
||
|
55569
|
55569
55569-90A00-05 Cover, Glove Compartment Door LockGLOVE COMPARTMENT DOOR LOCK [08.1980 - 08.1987] BJ6#,FJ6#,HJ6# BEIGE,BEIGE,TRIM4# |
55569-90A00-05 |
US $9.17 |
||
| replacement | |||||
|
55569
|
55569
55569-90A00-23 Cover, Glove Compartment Door Lock[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# BEIGE,BEIGE,TRIM4# |
55569-90A00-23 |
US $9.17 |
||
|
55650
|
55650
55650-90A00
Register Assy, Instrument Panel, No.1
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55650-90A00 |
— | ||
|
55660
|
55660
55650-90A00
Register Assy, Instrument Panel, No.1
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55650-90A00 |
— | ||
|
55670
|
55670
55670-90A00
Register Assy, Instrument Panel, No.3
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55670-90A00 |
— | ||
| replacement | |||||
|
55670
|
55670
55650-90A00
Register Assy, Instrument Panel, No.1
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55650-90A00 |
— | ||
|
55950
|
55950
55950-90A00 Nozzle Assy, Defroster[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55950-90A00 |
US $59.55 |
||
| replacement | |||||
|
55950
|
55950
55950-90A02 Nozzle Assy, Defroster[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
55950-90A02 |
US $59.84 |
||
|
55959
|
55959
55959-14010 Cover, Defroster Nozzle Opening, No.1[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
55959-14010 |
US $2.62 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9015950130
|
9015950130
90159-50130 Cap, Instrument Panel Safety Pad |
90159-50130 |
US $1.75 |
||
| replacement | |||||
|
9015950130
|
9015950130
55458-90A00
Cap, Instrument Panel Safety Pad
|
55458-90A00 |
— | ||
|
9016450008
|
9016450008
90164-50008 SCREW |
90164-50008 |
from US $0.76 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017910038
|
9017910038
90179-10038 New Genuine Part |
90179-10038 |
US $7.72 |
||
|
9018905016
|
9018905016
90189-05016 Grommet, Screw |
90189-05016 |
US $3.76 |
||
|
9020205129
|
9020205129
90202-05129 New Genuine Part |
90202-05129 |
US $1.65 |
||
|
9046808013
|
9046808013
90468-08013 New Genuine Part |
90468-08013 |
US $2.33 |
||
|
9095001156
|
9095001156
90950-01156
Plug, Hole(For Instrument Panel)
|
90950-01156 |
— | ||
|
9095001330
|
9095001330
90950-01330
Plug, Hole(For Instrument Panel)
|
90950-01330 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9165640816
|
9165640816
91656-40816 New Genuine Part |
91656-40816 |
US $1.89 |
||
| replacement | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9331214010
|
9331214010
93312-14010 New Genuine Part |
93312-14010 |
US $1.46 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.25 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.65 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
from US $0.63 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
|
9433115000
|
9433115000
94331-15000 New Genuine Part |
94331-15000 |
US $2.48 |
||
