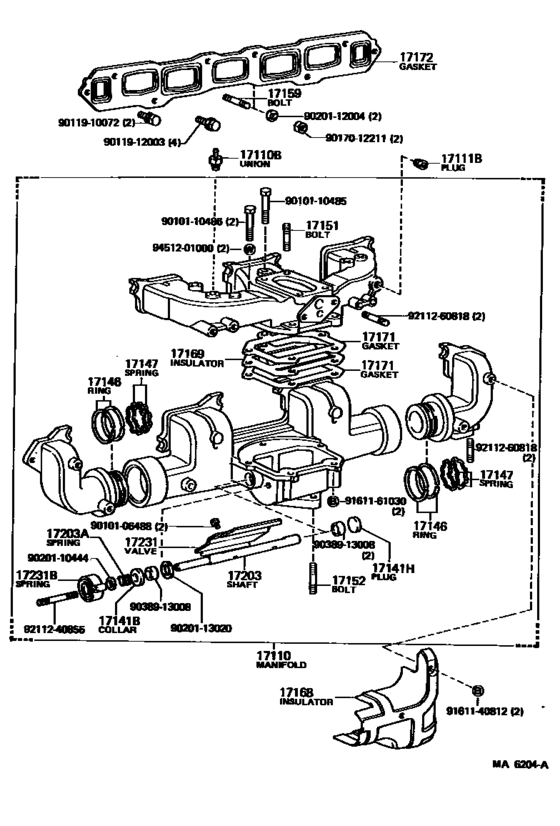

Manifold ([09.1982 - 11.1984] (8209-8411)2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110
|
17110
17100-61081
Manifold Assy
[08.1980 - 09.1982] 2F..FJ60 |
17100-61081 |
— | ||
| replacement | |||||
|
17110
|
17110
17100-61084
Manifold Assy
[08.1980 - 09.1982] 2F..FJ60 |
17100-61084 |
— | ||
|
17110
|
17110
17100-61082
Manifold Assy
[09.1982 - 11.1984] 2F..FJ6# |
17100-61082 |
— | ||
| replacement | |||||
|
17110
|
17110
17100-61084
Manifold Assy
[09.1982 - 11.1984] 2F..FJ6# |
17100-61084 |
— | ||
|
17110B
|
17110B
90404-51010 Union, Vacuum Hose[08.1980 - 11.1984] 2F..FJ6# |
90404-51010 |
US $3.32 |
||
|
17141B
|
17141B
90387-10055 Collar(For Exhaust Manifold)[09.1982 - 11.1984] 2F..FJ6# |
90387-10055 |
US $20.68 |
||
|
17141H
|
17141H
96411-12000 Plug, Tight(For Exhaust Manifold)[09.1982 - 11.1984] 2F..FJ6# |
96411-12000 |
US $4.95 |
||
| replacement | |||||
|
17141H
|
17141H
96411-42000 Plug, Tight, No.1[09.1982 - 11.1984] 2F..FJ6# |
96411-42000 |
from US $2.66 |
||
|
17146
|
17146
17151-61010 Ring, Exhaust Manifold[08.1980 - 08.1987] 2F,3F..FJ6# |
17151-61010 |
from US $13.98 |
||
|
17147
|
17147
17152-61010 Spring, Exhaust Manifold[08.1980 - 08.1987] 2F,3F..FJ6# |
17152-61010 |
from US $7.51 |
||
|
17151
|
17151
90116-08087 Bolt, Stud(For Head To Cylinder Head Cover)[11.1980 - 11.1984] 2F..FJ6#..IV4 |
90116-08087 |
US $3.35 |
||
|
17152
|
17152
90116-10299 Bolt, Stud(For Manifold To Exhaust Pipe)STUD(FOR MANIFOLD TO EXHAUST PIPE) [08.1980 - 11.1983] 2F..FJ6# |
90116-10299 |
US $3.67 |
||
|
17159
|
17159
90116-12321
Bolt, Stud(For Manifold To Cylinder Head)
[08.1980 - 10.1984] 2F..FJ6# |
90116-12321 |
— | ||
| replacement | |||||
|
17159
|
17159
90116-12011 Bolt, Stud(For Manifold To Cylinder Head)[08.1980 - 10.1984] 2F..FJ6# |
90116-12011 |
from US $1.88 |
||
|
17168
|
17168
17168-61014
Insulator, Exhaust Manifold Heat, No.2
[08.1980 - 11.1984] 2F..FJ6# |
17168-61014 |
— | ||
|
17169
|
17169
17169-61011 Insulator, Exhaust Manifold Heat, No.3EXHAUST MANIFOLD HEAT, NO.3 [08.1980 - 11.1984] 2F..FJ6# |
17169-61011 |
US $41.06 |
||
|
17171
|
17171
17171-61010
Gasket, Intake To Exhaust Manifold
[08.1980 - 11.1984] 2F..FJ6# |
17171-61010 |
— | ||
| replacement | |||||
|
17171
|
17171
17171-61011 Gasket, Intake To Exhaust Manifold[08.1980 - 11.1984] 2F..FJ6# |
17171-61011 |
from US $11.44 |
||
|
17172
|
17172
17172-61030
Gasket, Manifold To Cylinder Head
[08.1980 - 11.1984] 2F..FJ6# |
17172-61030 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-61041 Gasket, Manifold To Cylinder Head[08.1980 - 11.1984] 2F..FJ6# |
17172-61041 |
from US $33.76 |
||
|
17203
|
17203
17232-61013 Shaft Sub-Assy, Manifold Heat ControlMANIFOLD HEAT CONTROL [08.1980 - 09.1982] 2F..FJ60 |
17232-61013 |
US $90.27 |
||
|
17203
|
17203
17232-61014
Shaft Sub-Assy, Manifold Heat Control
[09.1982 - 11.1984] 2F..FJ6# |
17232-61014 |
— | ||
|
17203A
|
17203A
90501-08022
Spring, Compression(For Heat Control Shaft)
[09.1982 - 11.1984] 2F..FJ6# |
90501-08022 |
— | ||
|
17231
|
17231
17231-61012
Valve, Manifold Heat Control
[08.1980 - 11.1984] 2F..FJ6# |
17231-61012 |
— | ||
|
17231B
|
17231B
90510-08001
Coil, Heat Control Valve
[08.1980 - 09.1982] 2F..FJ60 |
90510-08001 |
— | ||
|
17231B
|
17231B
90510-08002
Coil, Heat Control Valve
[09.1982 - 11.1984] 2F..FJ6# |
90510-08002 |
— | ||
|
9010106488
|
9010106488
90101-06488 New Genuine Part |
90101-06488 |
US $1.75 |
||
|
9010110485
|
9010110485
90101-10485
New Genuine Part
|
90101-10485 |
— | ||
|
9010110486
|
9010110486
90101-10486 BOLT |
90101-10486 |
from US $1.22 |
||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.87 |
||
|
9011912003
|
9011912003
90119-12003 BOLT WWASHER |
90119-12003 |
US $5.73 |
||
|
9017012211
|
9017012211
90170-12211 NUT |
90170-12211 |
from US $1.93 |
||
|
9020110444
|
9020110444
90201-10444
New Genuine Part
|
90201-10444 |
— | ||
|
9020112004
|
9020112004
90201-12004
WASHER
|
90201-12004 |
— | ||
| replacement | |||||
|
9020112004
|
9020112004
90201-12051 WASHER |
90201-12051 |
US $2.69 |
||
|
9020113020
|
9020113020
90201-13020 New Genuine Part |
90201-13020 |
US $7.28 |
||
|
9038913008
|
9038913008
90389-13008 New Genuine Part |
90389-13008 |
US $19.66 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9211240855
|
9211240855
92112-40855
Bolt, Stud(For Manifold To Venturi)
|
92112-40855 |
— | ||
|
9211260818
|
9211260818
92112-60818 Bolt, Stud(For Water Pump Coupling) |
92112-60818 |
US $3.58 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
