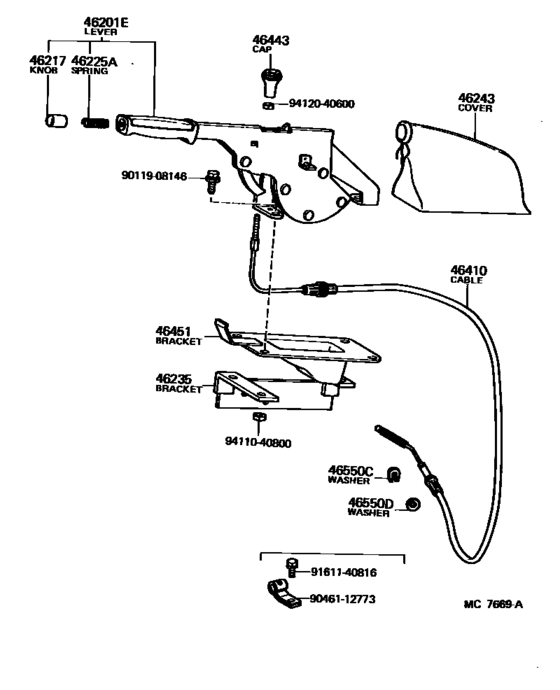

Parking Brake & Cable ([11.1980 - ] (8011- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46210-60040-01
Lever Sub-Assy, Parking Brake
[11.1980 - 08.1987] FJ6#..IV4 BLACK,BLACK |
46210-60040-01 |
— | ||
| replacement | |||||
|
46201E
|
46201E
46210-60041-C0
Lever Assy, Parking Brake
[11.1980 - 08.1987] FJ6#..IV4 BLACK,BLACK |
46210-60041-C0 |
— | ||
|
46217
|
46217
46217-10020-01
Knob, Parking Brake Release Rod
[11.1980 - 08.1987] FJ6#..IV4 BLACK,BLACK |
46217-10020-01 |
— | ||
| replacement | |||||
|
46217
|
46217
46217-10020-11 Knob, Parking Brake Release Rod (Black)[11.1980 - 08.1987] FJ6#..IV4 BLACK,BLACK |
46217-10020-11 |
from US $4.48 |
||
|
46225A
|
46225A
90501-10745 Spring, Compression(For Parking Brake Pawl Rod)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90501-10745 |
from US $2.87 |
||
|
46235
|
46235
46235-60010
Bracket, Parking Brake Lever Support
[11.1980 - 08.1987] FJ6#..IV4 |
46235-60010 |
— | ||
|
46243
|
46243
46243-60030-01
Cover, Parking Brake Lever
[11.1980 - 08.1987] FJ6#..IV4 BLACK,BLACK |
46243-60030-01 |
— | ||
|
46410
|
46410
46410-60110 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [11.1980 - 11.1984] FJ6#..IV4 |
46410-60110 |
US $45.28 |
||
|
46443
|
46443
46443-12020 Cap, Cable Adjusting[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
46443-12020 |
from US $1.71 |
||
|
46451
|
46451
46451-60040
Bracket, Cable Support
[11.1980 - 11.1984] FJ6#..IV4 |
46451-60040 |
— | ||
|
46550C
|
46550C
90213-06002
Washer, Type C(For Parking Brake Shoe)
[04.1981 - 08.1987] FJ6#..IV4 ID=6 |
90213-06002 |
— | ||
| replacement | |||||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[04.1981 - 08.1987] FJ6#..IV4 ID=6 |
90213-06003 |
from US $0.87 |
||
|
46550C
|
46550C
90213-06013 Washer, Type C(For Parking Brake Shoe)[11.1980 - 04.1981] FJ60..IV4 ID=6 |
90213-06013 |
from US $0.72 |
||
|
46550C
|
46550C
90213-07006 Washer, Type C (For Shift Lever Pin)TYPE C(FOR PARKING BRAKE SHOE) [11.1980 - 08.1987] FJ6#..IV4 ID=7.5 |
90213-07006 |
from US $1.62 |
||
|
46550C
|
46550C
90213-09005
Washer, Type C(For Parking Brake Shoe)
[11.1980 - 08.1987] FJ6#..IV4 ID=11.5 |
90213-09005 |
— | ||
|
46550D
|
46550D
90206-08024 Washer, Wave(For Parking Brake Shoe)[11.1980 - 08.1987] FJ6#..IV4 |
90206-08024 |
from US $0.87 |
||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9046112773
|
9046112773
90461-12773 New Genuine Part |
90461-12773 |
US $3.84 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
