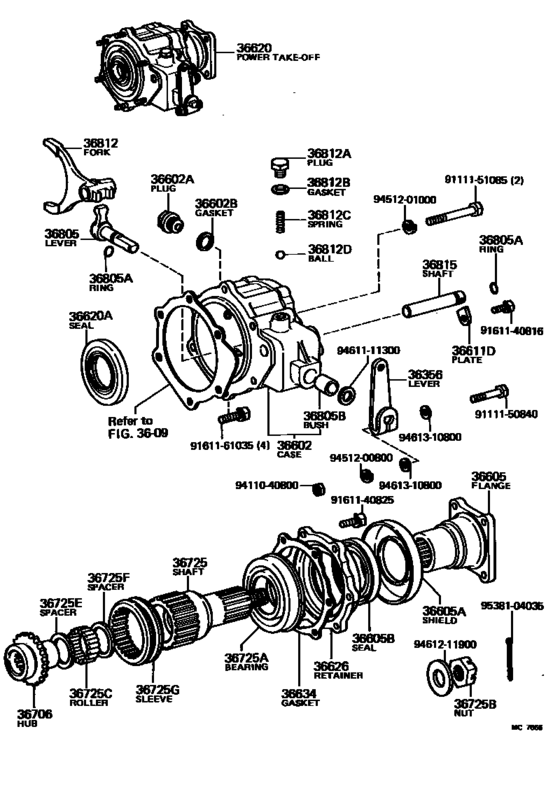

Power Take-Off Case & Gear ([11.1980 - ] (8011- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36356
|
36356
36355-60010
Lever, High & Low Shift Link
[11.1980 - 08.1987] FJ6#..IV4 |
36355-60010 |
— | ||
|
36602
|
36602
36602-60020 Case Sub-Assy, Center Power Take-Off[11.1980 - 08.1987] FJ6#..IV4 |
36602-60020 |
US $324.69 |
||
|
36602A
|
36602A
90341-18002 Plug, No.1[11.1980 - 04.1983] FJ6#..IV4 |
90341-18002 |
from US $3.50 |
||
|
36602B
|
36602B
12157-10010 Gasket (For Drain Plug)[11.1980 - 09.1981] FJ60..IV4 |
12157-10010 |
from US $0.72 |
||
|
36602B
|
36602B
90430-18007
Gasket(For Water Hole)
[09.1981 - 08.1984] FJ6#..IV4 |
90430-18007 |
— | ||
| replacement | |||||
|
36602B
|
36602B
90430-18008 Gasket[09.1981 - 08.1984] FJ6#..IV4 |
90430-18008 |
from US $0.84 |
||
|
36605
|
36605
37324-60060
Flange, Universal Joint (For Center Power Take-Off)
[11.1980 - 08.1987] FJ6#..IV4 |
37324-60060 |
— | ||
|
36605A
|
36605A
37341-55020
Shield, Dust (For Center Power Take-Off Flange)
[11.1980 - 08.1987] FJ6#..IV4 |
37341-55020 |
— | ||
|
36605B
|
36605B
90311-47034
Seal, Oil (For Center Power Take-Off Flange)
[11.1980 - 08.1987] FJ6#..IV4 |
90311-47034 |
— | ||
|
36611D
|
36611D
36726-60010
Plate, Lock (For Transfer High & Low Shift Fork Shaft)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
36726-60010 |
— | ||
|
36620
|
36620
36620-60030
Power Take-Off Assy, Center
[11.1980 - 08.1987] FJ6#..IV4 |
36620-60030 |
— | ||
| replacement | |||||
|
36620
|
36620
36620-60032
Power Take-Off Assy, Center
[11.1980 - 08.1987] FJ6#..IV4 |
36620-60032 |
— | ||
|
36620A
|
36620A
90311-45005 Seal, Type T Oil (For Center Power Take-Off)[11.1980 - 08.1987] FJ6#..IV4 |
90311-45005 |
US $4.80 |
||
|
36626
|
36626
36626-60010 Retainer, Center Power Take-Off Bearing[11.1980 - 08.1987] FJ6#..IV4 |
36626-60010 |
US $62.03 |
||
|
36634
|
36634
36634-60010
Gasket, Center Power Take-Off Bearing Retainer
[11.1980 - 08.1987] FJ6#..IV4 |
36634-60010 |
— | ||
|
36706
|
36706
36716-60030
Hub Sub-Assy, Center Power Take-Off Clutch
[11.1980 - 08.1987] FJ6#..IV4 |
36716-60030 |
— | ||
|
36725
|
36725
36725-60020
Shaft, Center Power Take-Off Output
[11.1980 - 08.1987] FJ6#..IV4 |
36725-60020 |
— | ||
|
36725A
|
36725A
90363-35021
Bearing (For Input Shaft Front)
[11.1980 - 08.1987] FJ6#..IV4 |
90363-35021 |
— | ||
|
36725B
|
36725B
94146-41900
Nut, Castle(For Center Power Take-Off Output Shaft)
[11.1980 - 08.1987] FJ6#..IV4 |
94146-41900 |
— | ||
|
36725C
|
36725C
90361-03017 Bearing Or Roller(For Counter Gear Front)[11.1980 - 08.1987] FJ6#..IV4 |
90361-03017 |
US $1.79 |
||
|
36725E
|
36725E
90560-39436
Spacer(For Center Power Take-Off Shaft)
[11.1980 - 08.1987] FJ6#..IV4 |
90560-39436 |
— | ||
|
36725F
|
36725F
90560-40437
Spacer(For Center Power Take-Off Shaft)
[11.1980 - 08.1987] FJ6#..IV4 |
90560-40437 |
— | ||
|
36725G
|
36725G
36235-60011
Sleeve, Transfer High & Low Clutch
[11.1980 - 08.1987] FJ6#..IV4 |
36235-60011 |
— | ||
|
36805
|
36805
36805-60010 Lever Sub-Assy, Power Take-Off Inner Shift[11.1980 - 08.1987] FJ6#..IV4 |
36805-60010 |
US $19.66 |
||
|
36805A
|
36805A
90301-08029
Ring, O (For Shift Fork Shaft)
[11.1980 - 08.1987] FJ6#..IV4 |
90301-08029 |
— | ||
|
36805B
|
36805B
90999-73013 Bush, Bimetal Formed(For Shift Lever Shaft Housing)BIMETAL FORMED(FOR SHIFT LEVER SHAFT HOUSING) [11.1980 - 08.1987] FJ6#..IV4 |
90999-73013 |
US $7.86 |
||
|
36812
|
36812
36812-60010 Fork, Power Take-Off Shift, No.2[11.1980 - 08.1987] FJ6#..IV4 |
36812-60010 |
US $49.21 |
||
|
36812A
|
36812A
90341-12069
Bolt, Lock(For Transfer Front Drive Shift Shaft Lock)
[11.1980 - 08.1987] FJ6#..IV4 |
90341-12069 |
— | ||
|
36812B
|
36812B
90430-12030 Gasket, Shift Fork Lock Bolt[11.1980 - 08.1987] FJ6#..IV4 |
90430-12030 |
US $1.49 |
||
|
36812C
|
36812C
90501-12033
Spring, Compression (For Shift Detent Ball Low Side)
[11.1980 - 08.1987] FJ6#..IV4 |
90501-12033 |
— | ||
|
36812D
|
36812D
90360-10003 Ball(For Transmission Oil Pump Cover)[11.1980 - 08.1987] FJ6#..IV4 |
90360-10003 |
from US $1.16 |
||
|
36815
|
36815
36815-60010 Shaft, Power Take-Off Fork, No.2[11.1980 - 08.1987] FJ6#..IV4 |
36815-60010 |
US $17.18 |
||
|
9111150840
|
9111150840
91111-50840 New Genuine Part |
91111-50840 |
US $2.48 |
||
|
9111151085
|
9111151085
91111-51085 New Genuine Part |
91111-51085 |
US $4.66 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461111300
|
9461111300
94611-11300
Washer(For Outer Lever Oil Setting)
|
94611-11300 |
— | ||
|
9461211900
|
9461211900
94612-11900 Washer, Plate (For Rear Drive Pinion) |
94612-11900 |
US $8.15 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.72 |
||
