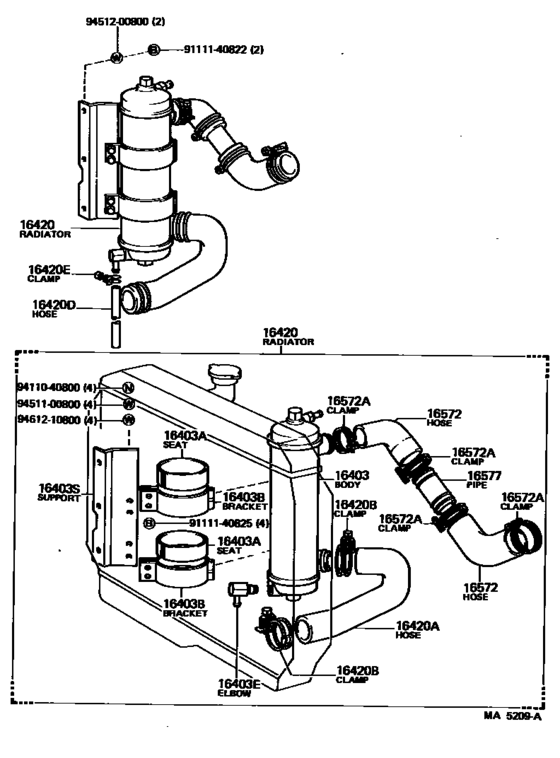

Radiator & Water Outlet ([11.1980 - 11.1984] (8011-8411)2F..IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16403
|
16403
07043-01630
Body Sub-Assy, Sub Radiator
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-01630 |
— | ||
|
16403A
|
16403A
07043-23610
Seat(For Sub Radiator)
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-23610 |
— | ||
|
16403B
|
16403B
07043-21610
Bracket, Sub Radiator
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-21610 |
— | ||
|
16403E
|
16403E
90407-14051
Elbow(For Sub Radiator)
[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
90407-14051 |
— | ||
| replacement | |||||
|
16403E
|
16403E
90407-53007 Union(For Water By-Pass Hose)[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
90407-53007 |
US $9.32 |
||
|
16403S
|
16403S
07043-22630
Support, Sub Radiator Bracket
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-22630 |
— | ||
|
16420
|
16420
07043-00630
Radiator Assy, Sub
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-00630 |
— | ||
|
16420A
|
16420A
07043-25630
Hose, Sub Radiator, Inlet
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-25630 |
— | ||
|
16420B
|
16420B
96111-10500 Clamp, Sub Radiator Inlet Hose[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
96111-10500 |
from US $2.15 |
||
|
16420D
|
16420D
07043-45612
Hose, Sub Radiator, No.2
[11.1980 - 11.1984] 2F..FJ6#..IV4 |
07043-45612 |
— | ||
|
16420E
|
16420E
96111-10220
Clamp Or Clip, Hose(For Water By-Pass Hose)
[11.1980 - 01.1984] 2F..FJ6#..IV4 |
96111-10220 |
— | ||
| replacement | |||||
|
16420E
|
16420E
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1980 - 01.1984] 2F..FJ6#..IV4 |
96112-10220 |
US $0.61 |
||
|
16572
|
16572
07043-26630
Hose, Radiator, Outlet
[11.1980 - 11.1984] 2F..FJ6#..IV4 SUB RADIATOR SIDE |
07043-26630 |
— | ||
|
16572
|
16572
07043-29620
Hose, Radiator, Outlet
[11.1980 - 11.1984] 2F..FJ6#..IV4 WATER PUMP SIDE |
07043-29620 |
— | ||
|
16572A
|
16572A
96111-10500 Clamp, Sub Radiator Inlet Hose[11.1980 - 11.1984] 2F..FJ6#..IV4 SUB RADIATOR SIDE |
96111-10500 |
from US $2.15 |
||
|
16572A
|
16572A
96111-10580 Clamp Or Clip, Hose(For Radiator Outlet No.1)[11.1980 - 11.1984] 2F..FJ6#..IV4 PIPE & WATER PUMP SIDE |
96111-10580 |
from US $3.05 |
||
|
16577
|
16577
07043-35620
Pipe, Radiator, No.7
[11.1980 - 11.1984] 2F..FJ6#..IV4 W/HEATER |
07043-35620 |
— | ||
|
16577
|
16577
16577-61030 Pipe, Radiator, No.7RADIATOR, NO.7 [11.1980 - 11.1984] 2F..FJ6#..IV4 |
16577-61030 |
US $48.22 |
||
|
9111140822
|
9111140822
91111-40822
New Genuine Part
|
91111-40822 |
— | ||
| replacement | |||||
|
9111140822
|
9111140822
91111-50822
New Genuine Part
|
91111-50822 |
— | ||
|
9111140825
|
9111140825
91111-40825
Bolt(For Clutch Master Cylinder Setting)
|
91111-40825 |
— | ||
| replacement | |||||
|
9111140825
|
9111140825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.40 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
