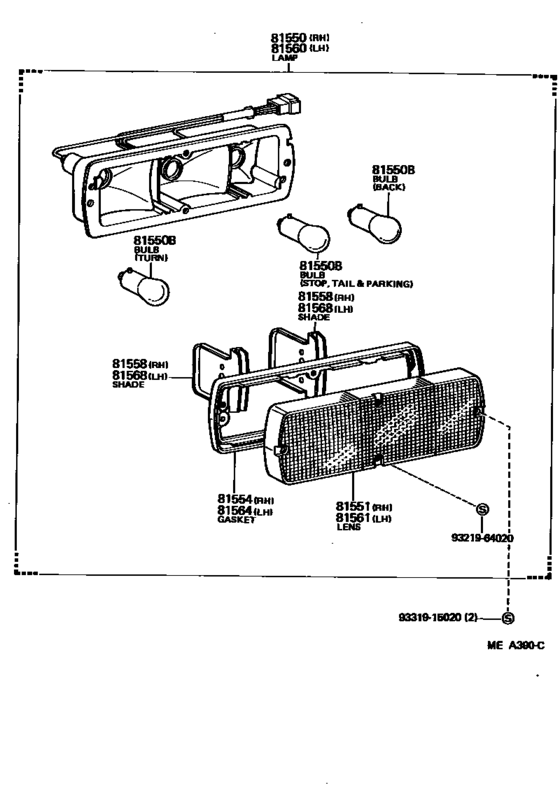

Rear Combination Lamp ([11.1980 - ] (8011- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-60183 Lamp Assy, Rear Combination, Rh[11.1980 - 08.1987] FJ6#..IV4 |
81550-60183 |
US $158.70 |
||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[08.1980 - 08.1987] FJ6# １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK) |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1980 - 08.1987] FJ6# １２Ｖ ２１／５Ｗ,12V 21/5W(STOP,TAIL/PARKING) |
99132-21210 |
from US $2.74 |
||
|
81551
|
81551
81551-26040
Lens, Rear Combination Lamp, Rh
[11.1980 - 08.1987] FJ6#..IV4 AMBER-RED-CLEAR |
81551-26040 |
— | ||
| replacement | |||||
|
81551
|
81551
81551-35061 Lens, Rear Combination Lamp, Rh[11.1980 - 08.1987] FJ6#..IV4 AMBER-RED-CLEAR |
81551-35061 |
from US $14.10 |
||
|
81554
|
81554
81552-26040 Gasket, Rear Combination Lamp Lens, Rh[11.1980 - 08.1987] FJ6#..IV4 |
81552-26040 |
from US $11.29 |
||
|
81558
|
81558
81557-26040 Cover, Rear Combination Lamp, Rh[11.1980 - 08.1987] FJ6#..IV4 |
81557-26040 |
US $5.91 |
||
|
81560
|
81560
81560-60083 Lamp Assy, Rear Combination, Lh[11.1980 - 08.1987] FJ6#..IV4 |
81560-60083 |
US $158.70 |
||
|
81561
|
81561
81561-26040
Lens, Rear Combination Lamp, Lh
[11.1980 - 08.1987] FJ6#..IV4 AMBER-RED-CLEAR |
81561-26040 |
— | ||
| replacement | |||||
|
81561
|
81561
81561-35061 Lens, Rear Combination Lamp, Lh[11.1980 - 08.1987] FJ6#..IV4 AMBER-RED-CLEAR |
81561-35061 |
from US $17.98 |
||
|
81564
|
81564
81562-26040 Gasket, Rear Combination Lamp Body, Lh[11.1980 - 08.1987] FJ6#..IV4 |
81562-26040 |
from US $11.02 |
||
|
81568
|
81568
81557-26040 Cover, Rear Combination Lamp, Rh[11.1980 - 08.1987] FJ6#..IV4 |
81557-26040 |
US $5.91 |
||
|
9321964020
|
9321964020
93219-64020
Screw
|
93219-64020 |
— | ||
| replacement | |||||
|
9321964020
|
9321964020
81559-10050 Screw |
81559-10050 |
US $5.73 |
||
|
9331915020
|
9331915020
93319-15020 SCREW |
93319-15020 |
US $1.75 |
||
