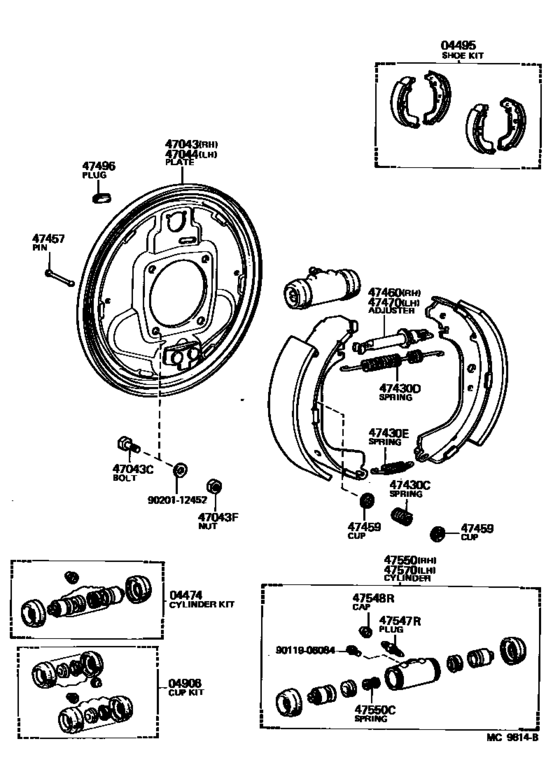

Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1980 - 11.1984] (8011-8411)IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-60020 Cylinder Kit, Rear WheelREAR WHEEL [11.1980 - 11.1984] FJ6#..IV4 |
04474-60020 |
US $35.53 |
||
|
04495
|
04495
04495-60020
Shoe Kit, Rear Brake
[11.1980 - 11.1984] FJ6#..IV4 |
04495-60020 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-60070 Shoe Kit, Rear Brake[11.1980 - 11.1984] FJ6#..IV4 |
04495-60070 |
from US $98.93 |
||
|
04906
|
04906
04906-60060 Cup Kit, Rear Wheel CylinderREAR WHEEL CYLINDER [11.1980 - 11.1984] FJ6#..IV4 |
04906-60060 |
US $11.18 |
||
|
47043
|
47043
47043-60060
Plate Sub-Assy, Brake Backing, Rear Rh
[11.1980 - 11.1984] FJ6#..IV4 |
47043-60060 |
— | ||
|
47043C
|
47043C
90101-12021
Bolt(For Backing Plate To Steering Knuckle Setting)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# ＊１２−１．２５ＰＸ３３−２１ |
90101-12021 |
— | ||
| replacement | |||||
|
47043C
|
47043C
90101-12175 Bolt(For Backing Plate To Rear Axle Housing Setting)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# ＊１２−１．２５ＰＸ３３−２１ |
90101-12175 |
from US $1.29 |
||
|
47043F
|
47043F
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
94115-71200 |
from US $0.95 |
||
|
47044
|
47044
47043-60060
Plate Sub-Assy, Brake Backing, Rear Rh
[11.1980 - 11.1984] FJ6#..IV4 |
47043-60060 |
— | ||
|
47430C
|
47430C
90501-20012 Spring(For Front Brake Shoe Hold Down)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90501-20012 |
from US $2.15 |
||
|
47430D
|
47430D
90506-26011 Spring, Tension(For Rear Brake Shoe Return)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# RH |
90506-26011 |
from US $7.17 |
||
|
47430D
|
47430D
90506-26014 Spring, Tension(For Rear Brake Shoe Return)[04.1981 - 08.1987] BJ6#,FJ6#,HJ6# LH |
90506-26014 |
from US $7.17 |
||
|
47430E
|
47430E
90506-18031 Spring, Tension(For Rear Brake Shoe Return)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90506-18031 |
from US $4.60 |
||
|
47457
|
47457
47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47447-60010 |
from US $1.81 |
||
|
47459
|
47459
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47449-30020 |
from US $1.27 |
||
|
47460
|
47460
47061-60020
Adjuster Assy, Shoe, Rh(For Rear Brake)
[11.1980 - 09.1984] FJ6#..IV4 |
47061-60020 |
— | ||
| replacement | |||||
|
47460
|
47460
47061-60021 Adjuster Assy, Shoe, Rh(For Rear Brake)SHOE, RH(FOR REAR BRAKE) [11.1980 - 09.1984] FJ6#..IV4 |
47061-60021 |
US $36.17 |
||
|
47470
|
47470
47061-60020
Adjuster Assy, Shoe, Rh(For Rear Brake)
[11.1980 - 09.1984] FJ6#..IV4 |
47061-60020 |
— | ||
| replacement | |||||
|
47470
|
47470
47061-60021 Adjuster Assy, Shoe, Rh(For Rear Brake)SHOE, RH(FOR REAR BRAKE) [11.1980 - 09.1984] FJ6#..IV4 |
47061-60021 |
US $36.17 |
||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47491-20011 |
from US $2.01 |
||
|
47547R
|
47547R
47547-60020 Plug, Bleeder(For Release Cylinder)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47547-60020 |
US $4.12 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
31478-30010 |
from US $1.48 |
||
|
47550
|
47550
47550-69115
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[11.1980 - 11.1984] FJ6#..IV4 |
47550-69115 |
— | ||
| replacement | |||||
|
47550
|
47550
47550-60130 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[11.1980 - 11.1984] FJ6#..IV4 |
47550-60130 |
from US $82.94 |
||
|
47550C
|
47550C
47509-60010
Spring Sub-Assy, Rear Wheel Cylinder Piston
[08.1980 - 11.1984] BJ6#,FJ6#,HJ60 |
47509-60010 |
— | ||
|
47570
|
47570
47550-69115
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[11.1980 - 11.1984] FJ6#..IV4 |
47550-69115 |
— | ||
| replacement | |||||
|
47570
|
47570
47550-60130 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[11.1980 - 11.1984] FJ6#..IV4 |
47550-60130 |
from US $82.94 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.97 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.08 |
||
