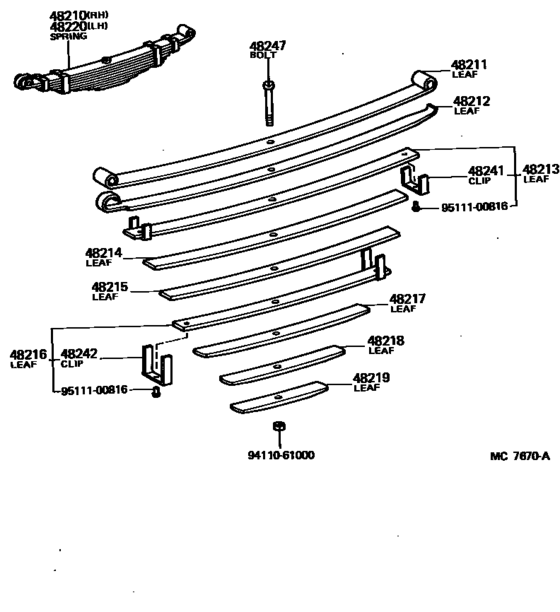

Rear Spring & Shock Absorber ([11.1980 - 11.1984] (8011-8411)IV4) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-60260
Spring Assy, Rear Rh
[11.1980 - 11.1984] FJ6#..IV4 |
48210-60260 |
— | ||
|
48211
|
48211
48211-60260 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [11.1980 - 11.1984] FJ6#..IV4 |
48211-60260 |
US $202.38 |
||
|
48212
|
48212
48212-60260 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [11.1980 - 11.1984] FJ6#..IV4 |
48212-60260 |
US $176.18 |
||
|
48213
|
48213
48202-60260 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [11.1980 - 11.1984] FJ6#..IV4 |
48202-60260 |
US $129.58 |
||
|
48214
|
48214
48214-60260 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [11.1980 - 11.1984] FJ6#..IV4 |
48214-60260 |
US $115.02 |
||
|
48215
|
48215
48215-60260
Leaf, Rear Spring, No.5
[11.1980 - 11.1984] FJ6#..IV4 |
48215-60260 |
— | ||
|
48216
|
48216
48203-60260
Leaf, Rear Spring, No.6
[11.1980 - 11.1984] FJ6#..IV4 |
48203-60260 |
— | ||
|
48217
|
48217
48217-60260
Leaf, Rear Spring, No.7
[11.1980 - 11.1984] FJ6#..IV4 |
48217-60260 |
— | ||
|
48218
|
48218
48218-60260
Leaf, Rear Spring, No.8
[11.1980 - 11.1984] FJ6#..IV4 |
48218-60260 |
— | ||
|
48219
|
48219
48219-60260
Leaf, Rear Spring, No.9
[11.1980 - 11.1984] FJ6#..IV4 |
48219-60260 |
— | ||
|
48220
|
48220
48210-60260
Spring Assy, Rear Rh
[11.1980 - 11.1984] FJ6#..IV4 |
48210-60260 |
— | ||
|
48241
|
48241
48141-35021 Clip, Front Spring, No.1[11.1980 - 11.1984] FJ60..IV4 |
48141-35021 |
US $5.24 |
||
|
48242
|
48242
48241-60172
Clip, Rear Spring, No.2
[11.1980 - 11.1984] FJ60..IV4 |
48241-60172 |
— | ||
|
48247
|
48247
48247-60172 Bolt, Rear Spring, Center[11.1980 - 11.1984] FJ6#..IV4 |
48247-60172 |
US $3.76 |
||
|
9411061000
|
9411061000
94110-61000 New Genuine Part |
94110-61000 |
US $1.02 |
||
|
9511100816
|
9511100816
95111-00816 New Genuine Part |
95111-00816 |
US $0.87 |
