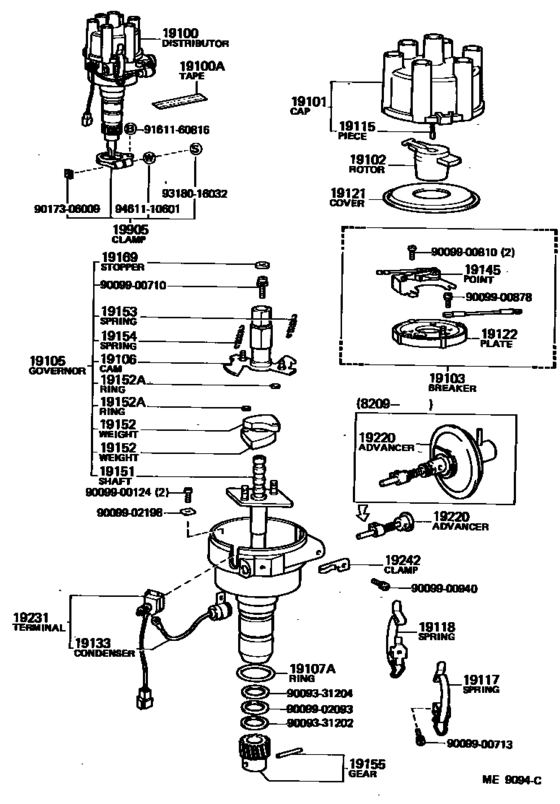

Distributor ([08.1980 - 04.1987] (8008-8704)2F,3F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-61120 Distributor Assy[08.1980 - 09.1982] 2F..FJ60 |
19100-61120 |
US $806.62 |
||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[08.1980 - 08.1987] 2F,3F..FJ6# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[08.1980 - 08.1987] 2F,3F..FJ6# |
90919-24003 |
— | ||
|
19101
|
19101
19101-45060 Cap Sub-Assy, Distributor[08.1980 - 08.1987] 2F,3F..FJ6# |
19101-45060 |
from US $31.86 |
||
|
19102
|
19102
19102-45060
Rotor Sub-Assy, Distributor
[08.1980 - 04.1987] 2F,3F..FJ6# |
19102-45060 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-45150 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1980 - 04.1987] 2F,3F..FJ6# |
19102-45150 |
from US $16.23 |
||
|
19103
|
19103
19103-61023
Breaker Sub-Assy, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6# |
19103-61023 |
— | ||
|
19105
|
19105
19105-61120
Governor Sub-Assy
[08.1980 - 11.1984] 2F..FJ6# |
19105-61120 |
— | ||
|
19106
|
19106
19106-45060
Cam Sub-Assy, Distributor
[08.1980 - 11.1984] 2F..FJ6# |
19106-45060 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1980 - 08.1987] 2F,3F..FJ6# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1980 - 08.1987] 2F,3F..FJ6# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1980 - 08.1987] 2F,3F..FJ6# |
19115-50010 |
— | ||
|
19117
|
19117
19117-60080
Spring, Distributor Cap, A
[08.1980 - 08.1987] 2F,3F..FJ6# |
19117-60080 |
— | ||
|
19118
|
19118
19118-60070
Spring, Distributor Cap, B
[08.1980 - 08.1987] 2F,3F..FJ6# |
19118-60070 |
— | ||
|
19121
|
19121
19121-45060
Cover, Dust Proof
[08.1980 - 04.1987] 2F,3F..FJ6# |
19121-45060 |
— | ||
|
19122
|
19122
19122-61023
Plate, Stationary, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6# |
19122-61023 |
— | ||
|
19133
|
19133
90099-52050 Condenser, Distributor[08.1980 - 08.1987] 2F,3F..FJ6# |
90099-52050 |
from US $6.18 |
||
|
19145
|
19145
19145-26060 Point, Distributor[08.1980 - 08.1987] 2F,3F..FJ6# |
19145-26060 |
from US $9.35 |
||
|
19151
|
19151
19151-61100 Shaft, GovernorGOVERNOR [08.1980 - 11.1984] 2F..FJ6# |
19151-61100 |
US $48.63 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1980 - 11.1984] 2F..FJ6# |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1980 - 11.1984] 2F..FJ6# |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[08.1980 - 11.1984] 2F..FJ6# |
90099-07109 |
— | ||
|
19153
|
19153
19153-61130 Spring, Governor, AGOVERNOR, A [08.1980 - 11.1984] 2F..FJ6# |
19153-61130 |
US $5.10 |
||
|
19154
|
19154
19154-61120 Spring, Governor, BGOVERNOR, B [08.1980 - 11.1984] 2F..FJ6# |
19154-61120 |
US $5.24 |
||
|
19155
|
19155
19195-60040
Gear, Spiral, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6# |
19195-60040 |
— | ||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1980 - 05.1987] 2F,3F..FJ6# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1980 - 05.1987] 2F,3F..FJ6# |
19169-63011 |
— | ||
|
19220
|
19220
19226-61120
Advancer Assy, Vacuum, Distributor
[08.1980 - 09.1982] 2F..FJ60 |
19226-61120 |
— | ||
|
19231
|
19231
19132-61023
Terminal, Distributor
[08.1980 - 08.1987] 2F,3F..FJ6# |
19132-61023 |
— | ||
|
19242
|
19242
19242-26250 Clamp, Cord[08.1980 - 08.1987] 2F,3F..FJ6# |
19242-26250 |
US $2.04 |
||
|
19905
|
19905
19905-40010 Clamp Sub-Assy, Distributor[08.1980 - 08.1987] 2F,3F..FJ6# |
19905-40010 |
from US $6.04 |
||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009331204
|
9009331204
90093-31204
Washer, No.2(For Governor Shaft Thrust)
|
90093-31204 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900713
|
9009900713
90099-00713
New Genuine Part
|
90099-00713 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009900940
|
9009900940
90099-00940 New Genuine Part |
90099-00940 |
US $1.02 |
||
|
9009902093
|
9009902093
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9017306009
|
9017306009
90173-06009
Nut, Square(For Radiator Pipe Clamp)
|
90173-06009 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9318016032
|
9318016032
93180-16032
New Genuine Part
|
93180-16032 |
— | ||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
from US $0.52 |
||
