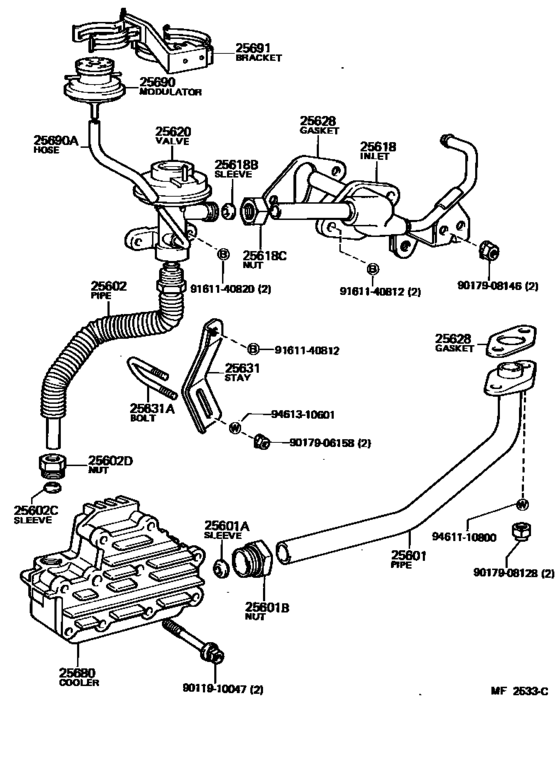

Exhaust Gas Recirculation System ([08.1980 - 11.1984] (8008-8411)2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-61040 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [08.1980 - 11.1984] 2F..FJ6# |
25601-61040 |
US $100.46 |
||
|
25601A
|
25601A
90410-25041 Sleeve, Ball, Egr Pipe, No.1BALL, EGR PIPE, NO.1 [08.1980 - 11.1984] 2F..FJ6# |
90410-25041 |
US $4.51 |
||
|
25601B
|
25601B
90402-33079 Nut, Union, Egr Pipe, No.1UNION, EGR PIPE, NO.1 [08.1980 - 11.1984] 2F..FJ6# |
90402-33079 |
US $32.03 |
||
|
25602
|
25602
25602-61030 Pipe Sub-Assy, Egr, No.2EGR, NO.2 [08.1980 - 11.1984] 2F..FJ6# |
25602-61030 |
US $106.29 |
||
|
25602C
|
25602C
90410-18002 Sleeve, Ball, Egr Pipe, No.1[08.1980 - 11.1984] 2F..FJ6# |
90410-18002 |
US $7.69 |
||
|
25602D
|
25602D
90402-26072 Nut, Union(For Egr Pipe, No.2)UNION(FOR EGR PIPE, NO.2) [08.1980 - 11.1984] 2F..FJ6# |
90402-26072 |
US $19.66 |
||
|
25618
|
25618
25618-61011 Inlet, EgrEGR [08.1980 - 11.1984] 2F..FJ6# |
25618-61011 |
US $248.98 |
||
|
25618B
|
25618B
90410-18002 Sleeve, Ball, Egr Pipe, No.1[08.1980 - 08.1987] 2F,3F..FJ6# |
90410-18002 |
US $7.69 |
||
|
25618C
|
25618C
90402-26074
Nut, Olive E(For Egr Inlet)
[08.1980 - 08.1987] 2F,3F..FJ6# |
90402-26074 |
— | ||
| replacement | |||||
|
25618C
|
25618C
90402-26002
Nut, Union, Egr Pipe, No.1
[08.1980 - 08.1987] 2F,3F..FJ6# |
90402-26002 |
— | ||
|
25620
|
25620
25620-61101
Valve Assy, Egr
[08.1980 - 10.1982] 2F..FJ60 |
25620-61101 |
— | ||
|
25620
|
25620
25620-61102
Valve Assy, Egr
[10.1982 - 08.1987] 2F,3F..FJ6# |
25620-61102 |
— | ||
| replacement | |||||
|
25620
|
25620
25620-61130
Valve Assy, Egr
[10.1982 - 08.1987] 2F,3F..FJ6# |
25620-61130 |
— | ||
|
25628
|
25628
25628-61020
Gasket, Egr Inlet
[08.1980 - 08.1987] 2F,3F..FJ6# EXHAUST MANIFOLD |
25628-61020 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-61060 Gasket, Egr Inlet[08.1980 - 08.1987] 2F,3F..FJ6# EXHAUST MANIFOLD |
25628-61060 |
US $15.20 |
||
|
25628
|
25628
25628-61031
Gasket, Egr Inlet
[08.1980 - 11.1984] 2F..FJ6# INTAKE MANIFOLD |
25628-61031 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-61050 Gasket, Egr Inlet[08.1980 - 11.1984] 2F..FJ6# INTAKE MANIFOLD |
25628-61050 |
US $18.17 |
||
|
25631
|
25631
25631-61030 Stay, Egr Pipe, No.1EGR PIPE, NO.1 [08.1980 - 11.1984] 2F..FJ6# |
25631-61030 |
US $62.90 |
||
|
25631A
|
25631A
90117-06131 Bolt(For Egr Pipe Clamp)[08.1980 - 11.1984] 2F..FJ6# |
90117-06131 |
US $3.64 |
||
|
25680
|
25680
25680-61030 Cooler Assy, EgrEGR [08.1980 - 11.1984] 2F..FJ6# |
25680-61030 |
US $366.91 |
||
|
25690
|
25690
25690-61011 Modulator Assy, Egr VacuumEGR VACUUM [08.1980 - 08.1987] 2F,3F..FJ6# |
25690-61011 |
US $90.27 |
||
|
25690A
|
25690A
90445-11014
Hose(For Egr Vacuum Modulator)
[08.1980 - 08.1987] 2F,3F..FJ6# |
90445-11014 |
— | ||
|
25691
|
25691
25691-61010
Bracket, Egr Vacuum Modulator
[08.1980 - 08.1987] 2F,3F..FJ6# |
25691-61010 |
— | ||
|
9011910047
|
9011910047
90119-10047 New Genuine Part |
90119-10047 |
US $3.93 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9017908128
|
9017908128
90179-08128
New Genuine Part
|
90179-08128 |
— | ||
| replacement | |||||
|
9017908128
|
9017908128
90179-08012 NUT |
90179-08012 |
from US $1.92 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
