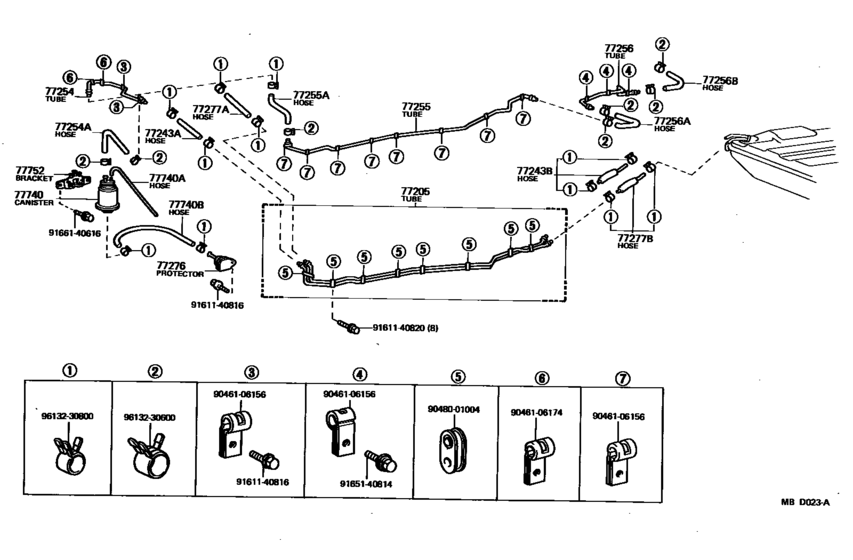

Fuel Tank & Tube ([08.1980 - 11.1984] (8008-8411)FJ6#..CBU) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-60060 Tube Sub-Assy, Fuel MainFUEL MAIN [08.1980 - 07.1983] FJ6# |
77205-60060 |
US $119.39 |
||
|
77243A
|
77243A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３８０，内径＝８ |
95332-08040 |
— | ||
| replacement | |||||
|
77243A
|
77243A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３８０，内径＝８ |
95337-08040 |
US $9.32 |
||
|
77243B
|
77243B
77260-60060
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1980 - 11.1984] BJ61,FJ6#..CBU |
77260-60060 |
— | ||
|
77254
|
77254
77263-60030
Tube, Fuel Emission, No.1
[08.1980 - 08.1987] FJ6# |
77263-60030 |
— | ||
|
77254A
|
77254A
95332-06030
Hose(For Carburetor)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３００ |
95332-06030 |
— | ||
| replacement | |||||
|
77254A
|
77254A
95333-06030
Hose, Fuel
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
|
77255
|
77255
77261-60030
Tube, Fuel Emission, No.2
[08.1980 - 11.1984] FJ6# |
77261-60030 |
— | ||
|
77255A
|
77255A
95332-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1980 - 02.1987] FJ6#..CBU ＊Ｈ，Ｌ＝１８０ |
95332-06020 |
— | ||
| replacement | |||||
|
77255A
|
77255A
95337-06020 Hose, Differential Pressure Control[08.1980 - 02.1987] FJ6#..CBU ＊Ｈ，Ｌ＝１８０ |
95337-06020 |
from US $10.21 |
||
|
77256
|
77256
77244-60120 Tube, Fuel Emission, No.3[08.1980 - 08.1987] FJ6# |
77244-60120 |
US $12.81 |
||
|
77256A
|
77256A
95332-06030
Hose(For Carburetor)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２４０ |
95332-06030 |
— | ||
| replacement | |||||
|
77256A
|
77256A
95333-06030
Hose, Fuel
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２４０ |
95333-06030 |
— | ||
|
77256B
|
77256B
95332-06030
Hose(For Carburetor)
[08.1980 - 02.1987] BJ6#,FJ6#,HJ6# ＊Ｈ，Ｌ＝２４０ |
95332-06030 |
— | ||
| replacement | |||||
|
77256B
|
77256B
95333-06030
Hose, Fuel
[08.1980 - 02.1987] BJ6#,FJ6#,HJ6# ＊Ｈ，Ｌ＝２４０ |
95333-06030 |
— | ||
|
77276
|
77276
77276-60020
Protector, Fuel Hose
[08.1980 - 08.1987] FJ60,61 |
77276-60020 |
— | ||
|
77277A
|
77277A
77250-61020 Hose, Fuel, No.1(For Return Tube, No.1)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1980 - 10.1985] FJ6# |
77250-61020 |
US $59.26 |
||
|
77277B
|
77277B
77250-60050
Hose, Fuel, No.2 (For Main Tube, No.3)
[08.1980 - 11.1984] BJ61,FJ6#..CBU |
77250-60050 |
— | ||
|
77740
|
77740
77704-60050
Canister Assy, Charcoal
[03.1981 - 08.1987] FJ6# |
77704-60050 |
— | ||
|
77740
|
77740
77740-60070
Canister Assy, Charcoal
[08.1980 - 03.1981] FJ60 |
77740-60070 |
— | ||
| replacements | |||||
|
77740
|
77740
77751-32010
Bracket, Charcoal Canister Base
[08.1980 - 03.1981] FJ60 |
77751-32010 |
— | ||
|
77740
|
77740
77704-60050
Canister Assy, Charcoal
[08.1980 - 03.1981] FJ60 |
77704-60050 |
— | ||
|
77740A
|
77740A
95411-10595 Hose, Fuel, No.1(For Charcoal Canister)[08.1980 - 11.1984] FJ60 *H,L=750 |
95411-10595 |
US $19.66 |
||
| replacement | |||||
|
77740A
|
77740A
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1980 - 11.1984] FJ60 *H,L=750 |
90999-92004 |
from US $8.76 |
||
|
77740B
|
77740B
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２８０，内径＝７．６ |
95332-08030 |
— | ||
| replacement | |||||
|
77740B
|
77740B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２８０，内径＝７．６ |
95333-08030 |
US $11.83 |
||
|
77752
|
77752
77751-60030 Bracket, Charcoal Canister Base[03.1981 - 03.1983] FJ6# |
77751-60030 |
US $26.06 |
||
| replacement | |||||
|
77752
|
77752
77751-32010
Bracket, Charcoal Canister Base
[03.1981 - 03.1983] FJ6# |
77751-32010 |
— | ||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046106174
|
9046106174
90461-06174 New Genuine Part |
90461-06174 |
US $1.31 |
||
|
9048001004
|
9048001004
90480-01004
New Genuine Part
|
90480-01004 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
