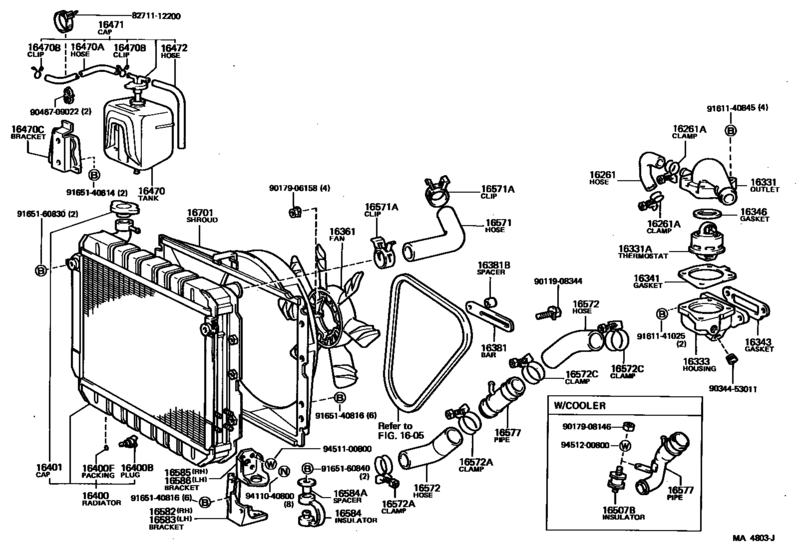

Radiator & Water Outlet ([08.1980 - 11.1984] (8008-8411)2F..CBU) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-60011 Hose, Water By-PassWATER BY-PASS [08.1980 - 11.1984] 2F..FJ6# |
16261-60011 |
from US $15.07 |
||
|
16261A
|
16261A
96112-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1980 - 11.1984] 2F..FJ6# |
96112-10330 |
US $3.05 |
||
|
16331
|
16331
16333-61100
Outlet, Water
[08.1980 - 11.1984] 2F..FJ6# |
16333-61100 |
— | ||
|
16331
|
16331
16333-61110 Outlet, Water[08.1980 - 11.1984] 2F..FJ6#..CBU W/OIL COOLER |
16333-61110 |
from US $79.03 |
||
|
16331A
|
16331A
90916-03052 Thermostat[08.1980 - 11.1984] 2F..FJ6# ＊ＷＡＸ ８８−１００,*WAX 88-100 |
90916-03052 |
from US $40.45 |
||
|
16333
|
16333
16331-61032
Housing, Water Outlet
[08.1980 - 11.1984] 2F..FJ6# |
16331-61032 |
— | ||
|
16341
|
16341
16341-61020
Gasket, Water Outlet
[08.1980 - 08.1987] 2F,3F..FJ6# |
16341-61020 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-61030 Gasket, Water Outlet[08.1980 - 08.1987] 2F,3F..FJ6# |
16341-61030 |
from US $4.31 |
||
|
16343
|
16343
16343-60010
Gasket, Water Outlet Housing
[08.1980 - 11.1984] 2F..FJ6# |
16343-60010 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-60011 Gasket, Water Outlet Housing[08.1980 - 11.1984] 2F..FJ6# |
16343-60011 |
from US $2.72 |
||
|
16346
|
16346
90430-43002 Gasket, Thermostat[08.1980 - 08.1987] 2F,3F..FJ6# |
90430-43002 |
US $5.91 |
||
|
16361
|
16361
16361-61020 Fan[08.1980 - 08.1987] 2F,3F..FJ6# OD=450,7BLADES |
16361-61020 |
from US $116.85 |
||
|
16381
|
16381
16381-60081
Bar, Fan Belt Adjusting
[08.1980 - 11.1984] 2F..FJ6#..CBU |
16381-60081 |
— | ||
|
16381B
|
16381B
90560-12263
Spacer, Fan Belt Adjusting Bar
[08.1980 - 11.1984] 2F..FJ6# |
90560-12263 |
— | ||
|
16400
|
16400
16400-61050 Radiator Assy[08.1980 - 11.1984] 2F..FJ6# |
16400-61050 |
US $1,416.69 |
||
| replacement | |||||
|
16400
|
16400
16400-61051
Radiator Assy
[08.1980 - 11.1984] 2F..FJ6# |
16400-61051 |
— | ||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16417-24200 |
from US $3.50 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16418-24200 |
from US $1.24 |
||
|
16401
|
16401
16401-41021 Cap Sub-Assy, Radiator[08.1980 - 11.1984] 3B..BJ6#; 2F..FJ6#; 2H..HJ60 |
16401-41021 |
from US $21.67 |
||
|
16470
|
16470
16480-90A00 Tank Assy, Radiator Reserve[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16480-90A00 |
from US $58.46 |
||
|
16470A
|
16470A
90445-12101 Hose Or Pipe(For Radiator Reserve Tank)[08.1980 - 08.1987] 2F,3F..FJ6#..CBU ＊Ｈ，Ｌ＝６７０ |
90445-12101 |
US $10.77 |
||
| replacement | |||||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1980 - 08.1987] 2F,3F..FJ6#..CBU ＊Ｈ，Ｌ＝６７０ |
90445-12078 |
from US $6.57 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
90467-11085 |
from US $0.70 |
||
|
16470C
|
16470C
85361-30070
Bracket(For Radiator Reserve Tank)
[08.1980 - 11.1984] 2F..FJ6# |
85361-30070 |
— | ||
|
16471
|
16471
16405-90A00
Cap Sub-Assy, Reserve Tank
[08.1980 - 08.1987] 2F,3F..FJ6#..CBU |
16405-90A00 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-90A03
Cap Sub-Assy, Reserve Tank
[08.1980 - 08.1987] 2F,3F..FJ6#..CBU |
16405-90A03 |
— | ||
|
16472
|
16472
85338-22020 Hose, Breather[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
85338-22020 |
US $2.45 |
||
|
16507B
|
16507B
17853-38010
Bush(For Sub Radiator)
[08.1980 - 08.1987] 2F..FJ60,61 W/COOLER |
17853-38010 |
— | ||
|
16571
|
16571
90916-01172 Hose, Radiator, InletRADIATOR, INLET [08.1980 - 11.1984] 2F..FJ6# |
90916-01172 |
from US $20.69 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[08.1980 - 08.1987] 2F,3F..FJ6# |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[08.1980 - 08.1987] 2F,3F..FJ6# |
90466-41008 |
from US $4.07 |
||
|
16572
|
16572
16571-61090
Hose, Radiator, Outlet
[08.1980 - 11.1984] 2F..FJ6#..CBU RADIATOR SIDE |
16571-61090 |
— | ||
|
16572
|
16572
90916-01056 Hose, Radiator, OutletRADIATOR, OUTLET [08.1980 - 11.1984] 2F..FJ6#..CBU WATER PUMP SIDE |
90916-01056 |
from US $13.72 |
||
|
16572
|
16572
90916-01163 Hose, Radiator, OutletRADIATOR, OUTLET [08.1980 - 11.1984] 2F..FJ6#..CBU WATER PUMP SIDE,W/COOLER |
90916-01163 |
US $23.69 |
||
|
16572
|
16572
99554-70185 Hose, Radiator, OutletRADIATOR, OUTLET [08.1980 - 11.1984] 2F..FJ6#..CBU RADIATOR SIDE,W/COOLER |
99554-70185 |
from US $21.57 |
||
|
16572A
|
16572A
96111-10510 Clamp Or Clip, Sub Radiator Hose[10.1980 - 11.1984] 2F..FJ6#..CBU RADIATOR SIDE |
96111-10510 |
US $4.66 |
||
|
16572A
|
16572A
96111-10530 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1980 - 10.1980] 2F..FJ60 RADIATOR SIDE |
96111-10530 |
from US $3.55 |
||
|
16572A
|
16572A
96111-10580 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1980 - 11.1984] 2F..FJ6#..CBU PIPE SIDE |
96111-10580 |
from US $3.05 |
||
|
16572C
|
16572C
96111-10580 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1980 - 11.1984] 2F..FJ6# |
96111-10580 |
from US $3.05 |
||
|
16577
|
16577
16577-61040 Pipe Sub-Assy, RadiatorRADIATOR, NO.7 [08.1980 - 11.1984] 2F..FJ6#..CBU |
16577-61040 |
from US $33.84 |
||
|
16577
|
16577
16577-61120 Pipe, Radiator, No.7RADIATOR, NO.7 [08.1980 - 11.1984] 2F..FJ6#..CBU W/COOLER |
16577-61120 |
from US $88.26 |
||
|
16582
|
16582
16582-61010 Bracket, Radiator, No.1[08.1980 - 11.1984] 2F..FJ6#..CBU |
16582-61010 |
US $37.13 |
||
|
16583
|
16583
16583-61010 Bracket, Radiator, No.2[08.1980 - 11.1984] 2F..FJ6#..CBU |
16583-61010 |
US $37.13 |
||
|
16584
|
16584
16584-61010
Insulator, Radiator Mounting
[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16584-61010 |
— | ||
|
16584A
|
16584A
90561-09005
Spacer, Radiator Mounting Insulator
[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
90561-09005 |
— | ||
|
16585
|
16585
16585-61010 Bracket, Radiator, No.3[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16585-61010 |
US $30.87 |
||
|
16586
|
16586
16586-61010 Bracket, Radiator, No.4[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16586-61010 |
US $30.87 |
||
|
16701
|
16701
16711-61151 Shroud Sub-Assy, FanFAN [08.1980 - 11.1984] 2F..FJ6# |
16711-61151 |
US $161.62 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9011908344
|
9011908344
90119-08344 New Genuine Part |
90119-08344 |
US $1.40 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9034453011
|
9034453011
90344-53011 Plug, W/head Taper Screw, No.1 |
90344-53011 |
US $4.30 |
||
|
9046709022
|
9046709022
90467-09022 New Genuine Part |
90467-09022 |
US $2.80 |
||
|
9161140845
|
9161140845
91611-40845
Bolt(For Clutch Release Cylinder Setting)
|
91611-40845 |
— | ||
| replacement | |||||
|
9161140845
|
9161140845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.58 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
