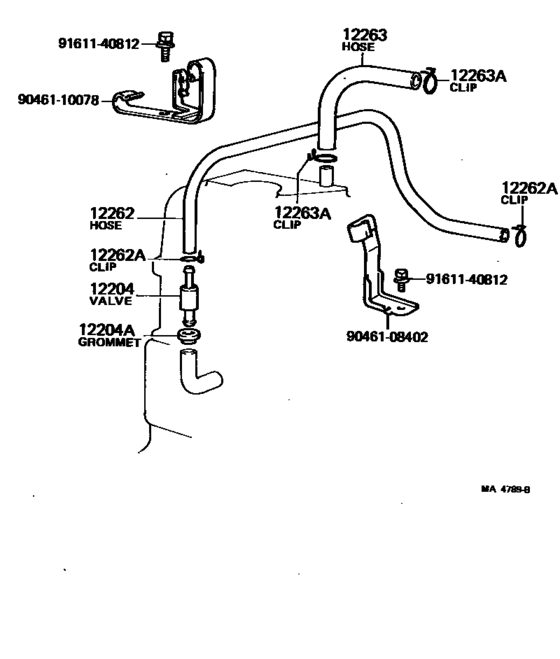

Ventilation Hose ([08.1980 - 11.1984] (8008-8411)2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- FJ60
- body
- WGV
- Roof
- SRF
- ENGINE
- 2F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-61010 Valve Sub-Assy, Ventilation[08.1980 - 11.1984] 2F..FJ6# |
12204-61010 |
from US $25.19 |
||
|
12204A
|
12204A
90480-18180 Grommet(For Ventilation System)[08.1980 - 11.1984] 2F..FJ6# |
90480-18180 |
from US $2.62 |
||
|
12262
|
12262
90910-05152
Hose, Ventilation, No.2
[08.1980 - 11.1984] 2F..FJ6# |
90910-05152 |
— | ||
|
12262A
|
12262A
90467-18028
Clip(For Ventilation Hose No.2)
[08.1980 - 11.1984] 2F..FJ6# |
90467-18028 |
— | ||
|
12263
|
12263
90445-24004
Hose, Ventilation, No.3
[08.1980 - 11.1984] 2F..FJ6# |
90445-24004 |
— | ||
|
12263A
|
12263A
90467-24038 Clip(For Ventilation Tube)[08.1980 - 11.1984] 2F..FJ6# |
90467-24038 |
from US $0.76 |
||
|
9046108402
|
9046108402
90461-08402
New Genuine Part
|
90461-08402 |
— | ||
|
9046110078
|
9046110078
90461-10078
New Genuine Part
|
90461-10078 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
