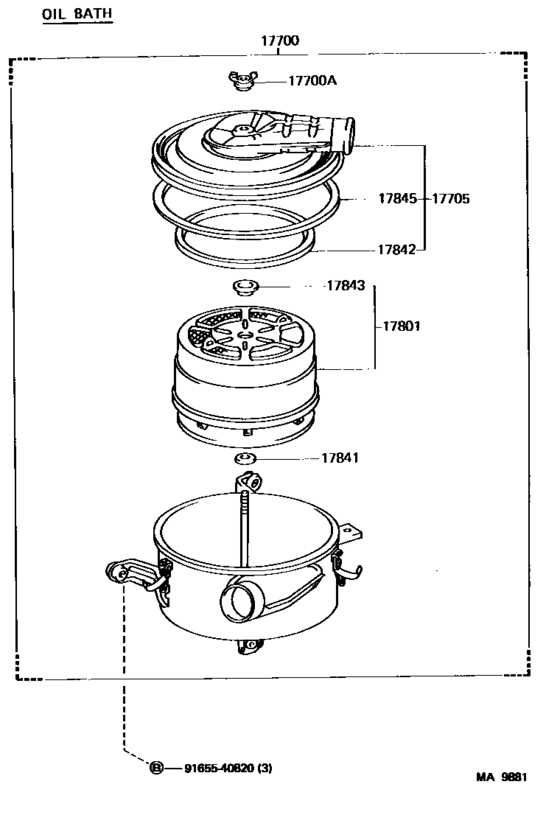

Air Cleaner ([08.1987 - ] (8708- )3F..GEN) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-61151 Cleaner Assy, AirAIR [08.1987 - 03.1992] 3F..FJ62..MTM..GEN |
17700-61151 |
US $292.66 |
||
|
17700
|
17700
17700-61211 Cleaner Assy, AirAIR [08.1987 - 03.1992] 3F..FJ62..GEN CYCLONE & W(HOT AIR INTAKE) |
17700-61211 |
US $612.98 |
||
|
17700
|
17700
17700-68151 Cleaner Assy, AirAIR [08.1987 - 08.1988] 3F..FJ62..MTM..GEN CYCLONE; 3B..BJ60..GEN CYCLONE |
17700-68151 |
US $422.24 |
||
|
17700
|
17700
17700-68160 Cleaner Assy, AirAIR [08.1987 - 03.1992] 3F..FJ62..4FC..GEN OIL BATH; 3F..FJ62..MTM..GEN OIL BATH OR OIL BATH & W(SCHNORKEL); 3B..BJ60..GEN OIL BATH OR OIL BATH & W(SCHNORKEL); 2H..HJ60..GEN OIL BATH OR OIL BATH & W(SCHNORKEL) |
17700-68160 |
US $690.14 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1987 - 03.1992] 3F..FJ62..MTM..GEN |
90175-06003 |
from US $1.18 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1987 - 08.1988] 3B..BJ60; 12HT,2H..HJ6#; 3F..FJ62..4FC;3F..FJ62..5F..(ARL,ME); 3F..FJ62..MTM..GEN OIL BATH OR CYCLONE |
90175-08008 |
from US $2.45 |
||
|
17705
|
17705
17705-61080
Cap Sub-Assy, Air Cleaner
[08.1987 - 03.1992] 3F..FJ62..MTM..GEN |
17705-61080 |
— | ||
|
17705
|
17705
17705-61120
Cap Sub-Assy, Air Cleaner
[08.1987 - 03.1992] 3F..FJ62..GEN CYCLONE & W(HOT AIR INTAKE) |
17705-61120 |
— | ||
|
17705
|
17705
17705-68100
Cap Sub-Assy, Air Cleaner
[08.1987 - 08.1988] 3F..FJ62..MTM..GEN CYCLONE |
17705-68100 |
— | ||
|
17705
|
17705
17705-68110
Cap Sub-Assy, Air Cleaner
[08.1987 - 03.1992] 3F..FJ62..MTM..GEN OIL BATH; 3B..BJ60..GEN OIL BATH; 3F..FJ62..4FC..GEN OIL BATH; 2H..HJ60..GEN OIL BATH |
17705-68110 |
— | ||
|
17801
|
17801
17801-61030 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.1987 - 03.1992] 3B..BJ60; 3F..FJ62; 12HT,2H..HJ6# |
17801-61030 |
from US $58.82 |
||
|
17801
|
17801
17801-68010
Element Sub-Assy, Air Cleaner Filter
[08.1987 - 03.1992] 3F..FJ62..MTM..GEN OIL BATH; 3B..BJ60..GEN OIL BATH; 3F..FJ62..4FC..GEN OIL BATH; 2H..HJ60..GEN OIL BATH |
17801-68010 |
— | ||
|
17841
|
17841
17841-68010 Gasket, Filter Element[08.1987 - 08.1988] 3B..BJ60; 3F..FJ62; 12HT,2H..HJ6# |
17841-68010 |
from US $2.80 |
||
|
17841
|
17841
17841-68040
Gasket, Filter Element
[08.1987 - 03.1992] 3F..FJ62..MTM..GEN OIL BATH; 3B..BJ60..GEN OIL BATH; 3F..FJ62..4FC..GEN OIL BATH; 2H..HJ60..GEN OIL BATH,CASE |
17841-68040 |
— | ||
|
17842
|
17842
17841-68050
Gasket, Filter Element
[08.1987 - 03.1992] 3F..FJ62..GEN; 3B..BJ60..GEN |
17841-68050 |
— | ||
| replacement | |||||
|
17842
|
17842
17845-42010
Gasket, Air Cleaner Cap
[08.1987 - 03.1992] 3F..FJ62..GEN; 3B..BJ60..GEN |
17845-42010 |
— | ||
|
17843
|
17843
17841-68060
Gasket, Filter Element
[08.1987 - 03.1992] 3F..FJ62..GEN; 3B..BJ60..GEN |
17841-68060 |
— | ||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[08.1987 - 08.1988] 3B..BJ60; 3F..FJ62; 12HT,2H..HJ6# |
17845-61011 |
— | ||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
