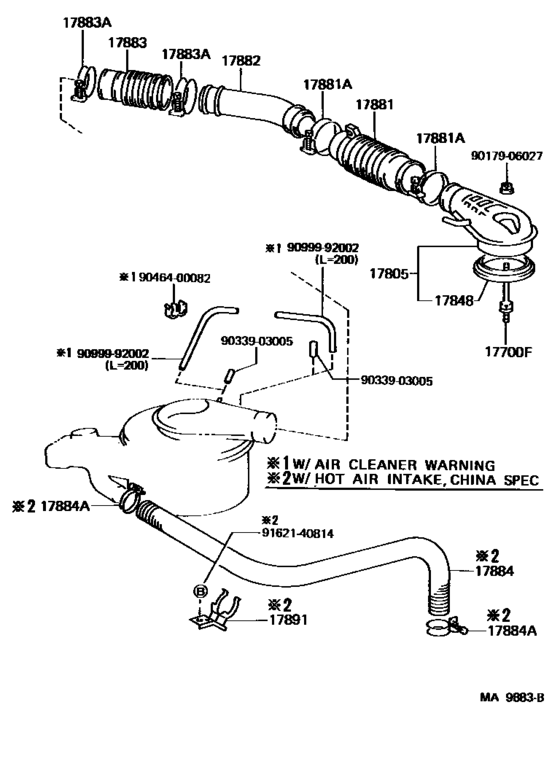

Air Cleaner ([08.1987 - ] (8708- )3F) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700F
|
17700F
90116-06024 Bolt, Stud(For Air Cleaner Setting)[08.1987 - 05.1988] 3F..FJ62..4FC;3F..FJ62..5F..(ARL,ME); 3F..FJ62..MTM..GEN OIL BATH OR CYCLONE |
90116-06024 |
US $2.62 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1987 - 05.1988] 3F..FJ62..MTM..GEN |
90116-06222 |
US $3.32 |
||
|
17805
|
17805
17805-61020
Connector Sub-Assy, Intake Air
[08.1987 - 05.1988] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX); 3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..STD..GEN OIL BATH OR CYCLONE |
17805-61020 |
— | ||
|
17805
|
17805
17805-61030
Connector Sub-Assy, Intake Air
[05.1988 - 11.1989] 3F..FJ62..RHD..4F;3F..FJ62..STD..ARL;3F..FJ62..4F..SOB..GX;3F..FJ62..(4FC,5F)..(GX ,VX)..(ARL,GEN) |
17805-61030 |
— | ||
|
17848
|
17848
17848-61020 Gasket, Air Cleaner To Carburetor[08.1987 - 03.1992] 3F..FJ62 |
17848-61020 |
from US $3.49 |
||
|
17881
|
17881
17881-61061 Hose, Air Cleaner, No.1[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX) |
17881-61061 |
US $68.49 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX) |
96111-10800 |
from US $2.87 |
||
|
17882
|
17882
17882-61031
Hose, Air Cleaner, No.2
[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX) |
17882-61031 |
— | ||
|
17883
|
17883
17883-61011 Hose, Air Cleaner, No.3[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX) |
17883-61011 |
US $66.16 |
||
|
17883A
|
17883A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX) AIR CLEANER SIDE |
96111-10800 |
from US $2.87 |
||
|
17883A
|
17883A
96111-10880 Clamp(For Air Intake Rubber Seal)[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..STD..(ARL,ME);3F..FJ62..(4FC,5F) ..(GX,VX) HOSE SIDE |
96111-10880 |
from US $8.57 |
||
|
17884
|
17884
17881-61080
Hose, Air Cleaner, No.1
[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..(4FC,5F)..(GX,VX)..GEN |
17881-61080 |
— | ||
|
17884A
|
17884A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..(4FC,5F)..(GX,VX)..GEN |
96111-10460 |
from US $2.77 |
||
|
17891
|
17891
17891-61010 Clamp(For Hot Air Hose)[08.1987 - 03.1992] 3F..FJ62..RHD..4F;3F..FJ62..4F..SOB..GX;3F..FJ62..(4FC,5F)..(GX,VX)..GEN |
17891-61010 |
US $8.88 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
