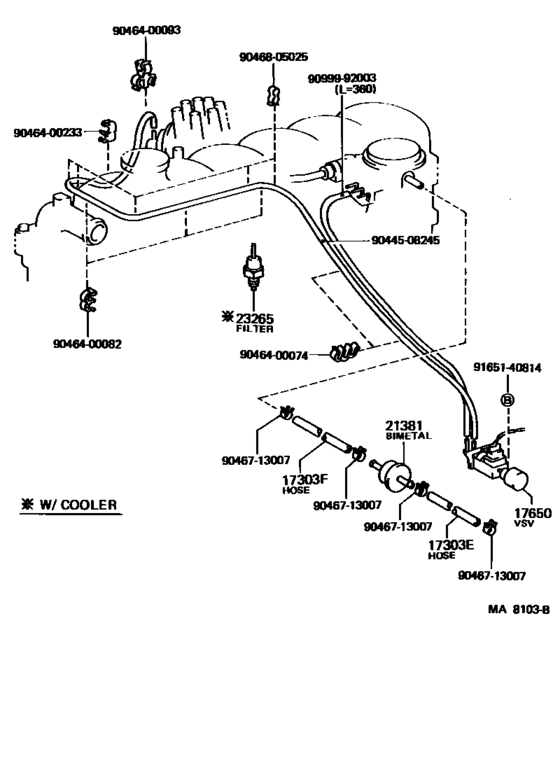

Vacuum Piping ([08.1987 - ] (8708- )3F..4FC..ME) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- FJ62
- grade
- VX
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- ATM
- DESTINATION
- ME
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303E
|
17303E
90445-14084 Hose, No.1(For Air Pipe)[08.1987 - 01.1990] 3F..FJ62..ARL,ME;3F..FJ62..RHD..GEN |
90445-14084 |
US $5.53 |
||
|
17303F
|
17303F
90445-14102
Hose, No.2(For Air Pipe)
[08.1987 - 03.1992] 3F..FJ62 |
90445-14102 |
— | ||
|
17650
|
17650
89570-35200
Valve Assy, Vacuum Switching
[08.1987 - 01.1990] 3F..FJ62..5F..ME TCS; 3F..FJ62..4FC..ME |
89570-35200 |
— | ||
|
21381
|
21381
21381-71040
Bimetal, Thermostatic
[08.1987 - 03.1992] 3F..FJ62 |
21381-71040 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[08.1987 - 08.1988] 3F..FJ62..4FC;3F..FJ62..STD..ME;3F..FJ62..RHD..MTM;3F..FJ62..SOB..GX..GEN;3F..FJ62 ..LHD..5F..LUB..GEN; 3F..FJ62..HRF..STD;3F..FJ62..4F..HRF..LUB CYCLONE & W(HOT AIR INTAKE) OR AIR CONDITIONER; 3F..FJ62..LHD..4F..SRF..LUB;3F..FJ62..LHD |
90917-11022 |
from US $17.14 |
||
|
9044508245
|
9044508245
90445-08245 Hose, Fuel, No.1(For Charcoal Canister) |
90445-08245 |
US $26.35 |
||
| replacement | |||||
|
9044508245
|
9044508245
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92006 |
from US $19.61 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400093
|
9046400093
90464-00093
Clamp, Resistive Cord, No.1
|
90464-00093 |
— | ||
|
9046400233
|
9046400233
90464-00233
Clamp (For Idle Up Divice), No.1
|
90464-00233 |
— | ||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9046805025
|
9046805025
90468-05025
Clip(For Carburetor Fuel Hose)
|
90468-05025 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
