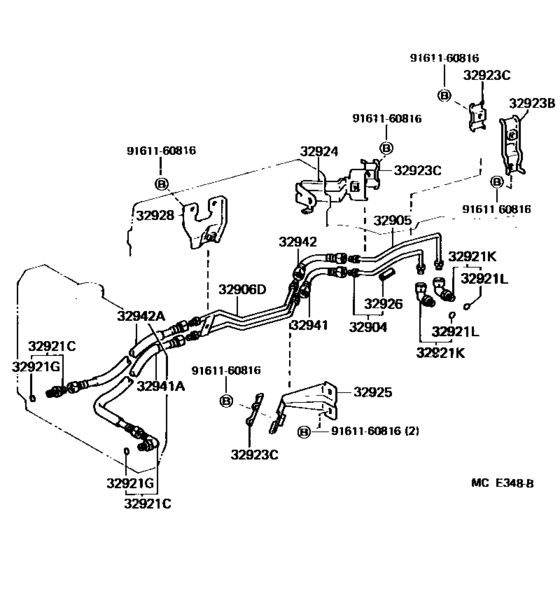

Oil Cooler & Tube (Atm) ([08.1987 - ] (8708- )FJ62..4FC) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 03.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32904
|
32904
32904-60012 Tube Sub-Assy, Oil Cooler Inlet, No.1[08.1987 - 03.1992] FJ62..4FC |
32904-60012 |
US $133.95 |
||
| replacements | |||||
|
32904
|
32904
32921-60012
Tube, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32921-60012 |
— | ||
|
32904
|
32904
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC |
32926-30020 |
US $3.05 |
||
|
32904
|
32904
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32905
|
32905
32905-60012 Tube Sub-Assy, Oil Cooler Outlet, No.1[08.1987 - 03.1992] FJ62..4FC |
32905-60012 |
US $133.95 |
||
| replacements | |||||
|
32905
|
32905
32922-60012
Tube, Oil Cooler Outlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32922-60012 |
— | ||
|
32905
|
32905
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC |
32926-30020 |
US $3.05 |
||
|
32905
|
32905
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32906D
|
32906D
32906-60012 Tube Sub-Assy, Oil Cooler, No.2[08.1987 - 03.1992] FJ62..4FC |
32906-60012 |
US $218.40 |
||
| replacements | |||||
|
32906D
|
32906D
32907-60011
Tube Sub-assy, Oil Cooler Outlet, No.2
[08.1987 - 03.1992] FJ62..4FC |
32907-60011 |
— | ||
|
32906D
|
32906D
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC |
32926-30020 |
US $3.05 |
||
|
32906D
|
32906D
32942-60010
Hose(For Oil Cooler Outlet)
[08.1987 - 03.1992] FJ62..4FC |
32942-60010 |
— | ||
|
32906D
|
32906D
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1987 - 03.1992] FJ62..4FC |
32942-60030 |
— | ||
|
32921C
|
32921C
90404-16022 Union(For Oil Cooler Tube)[08.1987 - 11.1987] FJ62..4FC INLET |
90404-16022 |
US $7.13 |
||
|
32921C
|
32921C
90407-14005
Union(For Oil Cooler Tube)
[08.1987 - 03.1992] FJ62,HJ61..4FC OUTLET |
90407-14005 |
— | ||
|
32921C
|
32921C
90407-16013 Union(For Oil Cooler Tube)[11.1987 - 03.1992] FJ62..4FC INLET |
90407-16013 |
US $8.15 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.1987 - 03.1992] FJ62,HJ61..4FC |
90301-11006 |
from US $2.43 |
||
|
32921K
|
32921K
90407-16006
Union(For Oil Cooler Tube)
[08.1987 - 03.1992] FJ62,HJ61..4FC |
90407-16006 |
— | ||
|
32921L
|
32921L
90301-11006 O Ring, Transaxle Case Elbow[08.1987 - 03.1992] FJ62,HJ61..4FC |
90301-11006 |
from US $2.43 |
||
|
32923B
|
32923B
32923-36010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.1987 - 03.1992] FJ62,HJ61..4FC |
32923-36010 |
US $8.74 |
||
|
32923C
|
32923C
90462-12038
Clamp, Automatic Transmission Oil Cooler Tube, No.4
[08.1987 - 03.1992] FJ62,HJ61..4FC |
90462-12038 |
— | ||
|
32924
|
32924
32924-60011 Clamp, Oil Cooler Tube, No.2[08.1987 - 03.1992] FJ62..4FC |
32924-60011 |
US $32.61 |
||
|
32925
|
32925
32925-60030 Clamp, Oil Cooler Tube, No.3[08.1987 - 03.1992] FJ62..4FC |
32925-60030 |
US $32.61 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
32928-60011 Clamp, Flexible Hose, No.1[08.1987 - 03.1992] FJ62..4FC |
32928-60011 |
US $27.96 |
||
|
32941
|
32941
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32941A
|
32941A
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1987 - 03.1992] FJ62..4FC |
32942-60030 |
— | ||
|
32942
|
32942
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32942A
|
32942A
32942-60010
Hose(For Oil Cooler Outlet)
[08.1987 - 03.1992] FJ62..4FC |
32942-60010 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
