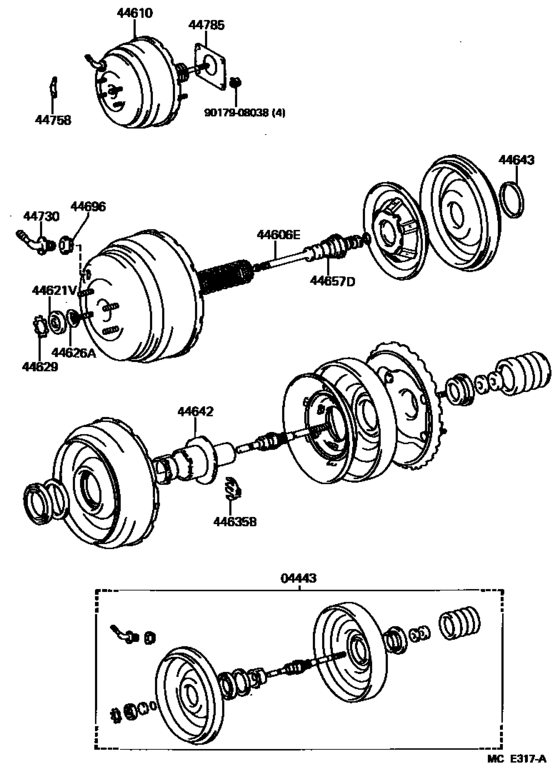

Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )FJ62) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04443
|
04443
04443-60350 Booster Kit, BrakeBRAKE [08.1988 - 01.1990] FJ62 |
04443-60350 |
US $180.54 |
||
|
44606E
|
44606E
44606-20800 Rod Sub-Assy, Brake Booster Piston[08.1988 - 01.1990] FJ62 |
44606-20800 |
US $16.89 |
||
|
44610
|
44610
44610-60220 Booster Assy, BrakeBRAKE [08.1988 - 01.1990] FJ62 |
44610-60220 |
US $854.67 |
||
|
44621V
|
44621V
44621-14030
Seal, Booster Body
[08.1988 - 01.1990] FJ62 |
44621-14030 |
— | ||
|
44626A
|
44626A
44626-60010 Retainer, Booster Seal[08.1988 - 01.1990] FJ62 |
44626-60010 |
US $2.27 |
||
|
44629
|
44629
44628-60010
Ring, Circular Internal
[08.1988 - 01.1990] FJ62 |
44628-60010 |
— | ||
|
44635B
|
44635B
44635-20800 Key, Booster Valve Plunger[08.1988 - 01.1990] FJ62 |
44635-20800 |
US $3.06 |
||
|
44642
|
44642
44642-20800 Piston, Brake Booster[08.1988 - 01.1990] FJ62 |
44642-20800 |
US $36.84 |
||
|
44643
|
44643
44643-20800 Retainer, Diaphragm[08.1988 - 01.1990] FJ62 |
44643-20800 |
US $4.54 |
||
|
44657D
|
44657D
44657-22630 Case, Reaction Disc[08.1988 - 01.1990] FJ62 |
44657-22630 |
US $30.28 |
||
|
44758
|
44758
44758-60030 Bracket, Vacuum Check ValveVACUUM CHECK VALVE [08.1988 - 01.1990] FJ62 |
44758-60030 |
US $8.30 |
||
|
44785
|
44785
44785-35020 Gasket, Brake Booster Bracket[08.1987 - 01.1990] FJ62,HJ6# |
44785-35020 |
from US $1.14 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
