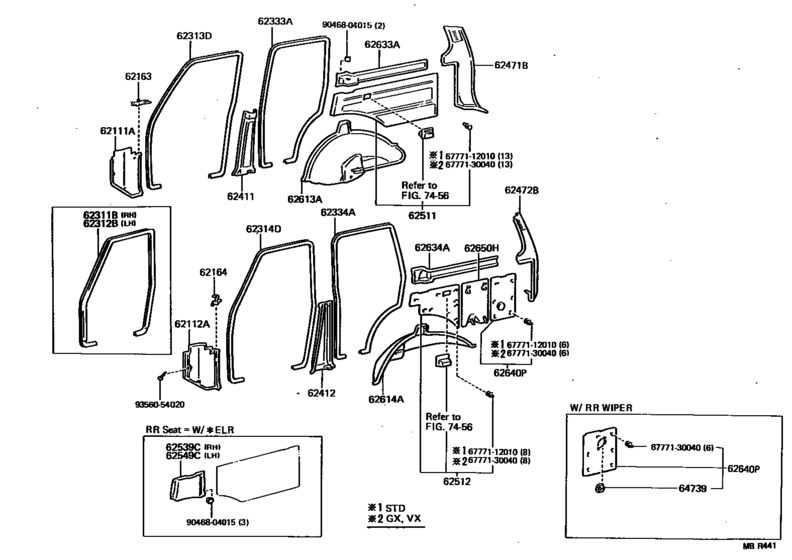

Inside Trim Board ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111A
|
62111A
62101-90A00-03
Board Sub-Assy, Cowl Side Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62101-90A00-03 |
— | ||
|
62111A
|
62111A
62101-90A00-16
Board Sub-Assy, Cowl Side Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62101-90A00-16 |
— | ||
|
62112A
|
62112A
62102-90A00-03
Board Sub-Assy, Cowl Side Trim, Lh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62102-90A00-03 |
— | ||
|
62112A
|
62112A
62102-90A00-16
Board Sub-Assy, Cowl Side Trim, Lh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62102-90A00-16 |
— | ||
|
62163
|
62163
62163-90A00-03
Cover, Cowl Side Instrument Panel Bracket, Rh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62163-90A00-03 |
— | ||
|
62163
|
62163
62163-90A00-16 Cover, Cowl Side Instrument Panel Bracket, Rh[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62163-90A00-16 |
US $8.59 |
||
| replacement | |||||
|
62163
|
62163
62163-90A00-03
Cover, Cowl Side Instrument Panel Bracket, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62163-90A00-03 |
— | ||
|
62164
|
62164
62164-90A00-03
Cover, Cowl Side Instrument Panel Bracket, Lh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62164-90A00-03 |
— | ||
|
62164
|
62164
62164-90A00-16 Cover, Cowl Side Instrument Panel Bracket, Lh[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62164-90A00-16 |
US $8.59 |
||
| replacement | |||||
|
62164
|
62164
62164-90A00-03
Cover, Cowl Side Instrument Panel Bracket, Lh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62164-90A00-03 |
— | ||
|
62313D
|
62313D
62313-90A00-03
Trim, Front Door Opening, Rh
[08.1987 - 08.1988] HJ6#..GX,VX GRAY,TRIM1# |
62313-90A00-03 |
— | ||
| replacement | |||||
|
62313D
|
62313D
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 08.1988] HJ6#..GX,VX GRAY,TRIM1# |
62333-90A00-03 |
— | ||
|
62313D
|
62313D
62313-90A00-16
Trim, Front Door Opening, Rh
[08.1987 - 08.1988] HJ6# SEPIA BROWN,TRIM4# |
62313-90A00-16 |
— | ||
| replacement | |||||
|
62313D
|
62313D
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 08.1988] HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62314D
|
62314D
62313-90A00-03
Trim, Front Door Opening, Rh
[08.1987 - 08.1988] HJ6#..GX,VX GRAY,TRIM1# |
62313-90A00-03 |
— | ||
| replacement | |||||
|
62314D
|
62314D
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 08.1988] HJ6#..GX,VX GRAY,TRIM1# |
62333-90A00-03 |
— | ||
|
62314D
|
62314D
62313-90A00-16
Trim, Front Door Opening, Rh
[08.1987 - 08.1988] HJ6# SEPIA BROWN,TRIM4# |
62313-90A00-16 |
— | ||
| replacement | |||||
|
62314D
|
62314D
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 08.1988] HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62333A
|
62333A
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62333-90A00-03 |
— | ||
|
62333A
|
62333A
62333-90A00-16
Trim, Rear Door Opening, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-16 |
— | ||
| replacement | |||||
|
62333A
|
62333A
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62334A
|
62334A
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62333-90A00-03 |
— | ||
|
62334A
|
62334A
62333-90A00-16
Trim, Rear Door Opening, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-16 |
— | ||
| replacement | |||||
|
62334A
|
62334A
62333-90A00-03
Trim, Rear Door Opening, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62333-90A00-03 |
— | ||
|
62411
|
62411
62411-90A01-03
Garnish, Center Pillar, Rh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62411-90A01-03 |
— | ||
|
62411
|
62411
62411-90A01-16
Garnish, Center Pillar, Rh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62411-90A01-16 |
— | ||
|
62412
|
62412
62412-90A01-03
Garnish, Center Pillar, Lh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
62412-90A01-03 |
— | ||
|
62412
|
62412
62412-90A01-16
Garnish, Center Pillar, Lh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
62412-90A01-16 |
— | ||
|
62471B
|
62471B
62471-90A00-18
Cover, Rear Pillar, Rh
[08.1987 - 01.1990] HJ60..HRF..SOB;FJ62,HJ6#..SRF..(GX,VX) IVORY,TRIM1#,4# |
62471-90A00-18 |
— | ||
|
62472B
|
62472B
62472-90A00-18
Cover, Rear Pillar, Lh
[08.1987 - 01.1990] HJ60..HRF..SOB;FJ62,HJ6#..SRF..(GX,VX) IVORY,TRIM1#,4# |
62472-90A00-18 |
— | ||
|
62511
|
62511
62510-90A15-03
Board, Quarter Inside Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SHADOW GRAY,TRIM1# |
62510-90A15-03 |
— | ||
| replacement | |||||
|
62511
|
62511
62510-90A17-03
Board, Quarter Inside Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SHADOW GRAY,TRIM1# |
62510-90A17-03 |
— | ||
|
62511
|
62511
62510-90A15-06 Board, Quarter Inside Trim, RhQUARTER INSIDE TRIM, RH [08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SEPIA BROWN,TRIM4# |
62510-90A15-06 |
US $155.79 |
||
| replacement | |||||
|
62511
|
62511
62510-90A17-06 Board, Quarter Inside Trim, RhQUARTER INSIDE TRIM, RH [08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SEPIA BROWN,TRIM4# |
62510-90A17-06 |
US $180.54 |
||
|
62511
|
62511
62510-90A55-03
Board, Quarter Inside Trim, Rh
[08.1987 - 01.1990] HJ60..HRF SHADOW GRAY,TRIM1#; FJ62 W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#; HJ60..RHD W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#; HJ6#..LHD..SRF..GX W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1# |
62510-90A55-03 |
— | ||
|
62511
|
62511
62510-90A55-06
Board, Quarter Inside Trim, Rh
[08.1987 - 01.1990] HJ60..HRF SEPIA BROWN,TRIM4#; FJ62 W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; HJ60..RHD W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; HJ6#..LHD..SRF..GX W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4# |
62510-90A55-06 |
— | ||
|
62512
|
62512
62520-90A46-03
Board, Quarter Inside Trim, Lh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SHADOW GRAY,TRIM1# |
62520-90A46-03 |
— | ||
|
62512
|
62512
62520-90A46-06 Board, Quarter Inside Trim, LhQUARTER INSIDE TRIM, LH [08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SEPIA BROWN,TRIM4# |
62520-90A46-06 |
US $88.82 |
||
|
62512
|
62512
62520-90A69-03
Board, Quarter Inside Trim, Lh
[08.1987 - 01.1990] HJ60..HRF..SOB SHADOW GRAY,TRIM1#; FJ62 W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#; HJ60..RHD W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#; HJ6#..LHD..SRF..GX W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1# |
62520-90A69-03 |
— | ||
|
62512
|
62512
62520-90A69-06
Board, Quarter Inside Trim, Lh
[08.1987 - 01.1990] HJ60..HRF..SOB SEPIA BROWN,TRIM4#; FJ62 W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; HJ60..RHD W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; HJ6#..LHD..SRF..GX W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4# |
62520-90A69-06 |
— | ||
|
62539C
|
62539C
62539-90A01-03
Cover, Quarter Trim Upper Belt Hole, Rh
[08.1987 - 01.1990] HJ60..RHD SHADOW GRAY,TRIM1#; HJ61..VX;HJ60..HRF SHADOW GRAY,TRIM1#; FJ62,HJ6#..LHD..SRF..GX SHADOW GRAY,TRIM1# |
62539-90A01-03 |
— | ||
|
62539C
|
62539C
62539-90A01-06
Cover, Quarter Trim Upper Belt Hole, Rh
[08.1987 - 01.1990] HJ60..RHD SEPIA BROWN,TRIM4#; HJ61..VX;HJ60..HRF SEPIA BROWN,TRIM4#; FJ62,HJ6#..LHD..SRF..GX SEPIA BROWN,TRIM4#; HJ60..STD W(*RFM) OR W(FUEL LID OPENER),SEPIA BROWN,TRIM4# |
62539-90A01-06 |
— | ||
|
62549C
|
62549C
62549-90A00-03
Cover, Quarter Trim Upper Belt Hole, Lh
[08.1987 - 01.1990] HJ60..RHD GRAY,TRIM1#; HJ61..VX;HJ60..HRF GRAY,TRIM1#; FJ62,HJ6#..LHD..SRF..GX GRAY,TRIM1# |
62549-90A00-03 |
— | ||
|
62549C
|
62549C
62549-90A00-16
Cover, Quarter Trim Upper Belt Hole, Lh
[08.1987 - 01.1990] HJ60..RHD SEPIA BROWN,TRIM4#; HJ60..STD SEPIA BROWN,TRIM4#; HJ61..VX;HJ60..HRF SEPIA BROWN,TRIM4#; FJ62,HJ6#..LHD..SRF..GX SEPIA BROWN,TRIM4# |
62549-90A00-16 |
— | ||
|
62613A
|
62613A
62613-90A07-03
Cover, Wheel House Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SHADOW GRAY,TRIM1# |
62613-90A07-03 |
— | ||
|
62613A
|
62613A
62613-90A07-06
Cover, Wheel House Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SEPIA BROWN,TRIM4#; HJ60..STD W(*RFM),SEPIA BROWN,TRIM4# |
62613-90A07-06 |
— | ||
|
62613A
|
62613A
62613-90A09-03 Cover, Quarter Wheel House, RhQUARTER WHEEL HOUSE, RH [08.1987 - 01.1990] HJ60..HRF..SOB SHADOW GRAY,TRIM1#; HJ60..RHD W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#; FJ62..SOB W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1# |
62613-90A09-03 |
US $158.70 |
||
| replacement | |||||
|
62613A
|
62613A
62613-90A07-03
Cover, Wheel House Trim, Rh
[08.1987 - 01.1990] HJ60..HRF..SOB SHADOW GRAY,TRIM1#; HJ60..RHD W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#; FJ62..SOB W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1# |
62613-90A07-03 |
— | ||
|
62613A
|
62613A
62613-90A09-06
Cover, Quarter Wheel House, Rh
[08.1987 - 01.1990] HJ60..HRF..SOB SEPIA BROWN,TRIM4#; HJ60..RHD W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; FJ62..SOB W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; HJ60..STD W(*RFM & REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4# |
62613-90A09-06 |
— | ||
| replacement | |||||
|
62613A
|
62613A
62613-90A07-06
Cover, Wheel House Trim, Rh
[08.1987 - 01.1990] HJ60..HRF..SOB SEPIA BROWN,TRIM4#; HJ60..RHD W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; FJ62..SOB W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#; HJ60..STD W(*RFM & REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4# |
62613-90A07-06 |
— | ||
|
62614A
|
62614A
62614-90A00-03 Cover, Wheel House Trim, LhQUARTER WHEEL HOUSE, LH [08.1987 - 01.1990] FJ62,HJ6#..SRF..GX GRAY,TRIM1# |
62614-90A00-03 |
US $158.70 |
||
|
62614A
|
62614A
62614-90A00-16
Cover, Wheel House Trim, Lh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX SEPIA BROWN,TRIM4#; HJ60..STD W(*RFM),SEPIA BROWN,TRIM4# |
62614-90A00-16 |
— | ||
|
62614A
|
62614A
62614-90A02-03
Cover, Quarter Wheel House, Lh
[08.1987 - 01.1990] HJ60..HRF..SOB GRAY,TRIM1#; HJ60..RHD W(REAR SEAT BELT = *ELR),GRAY,TRIM1#; FJ62..SOB W(REAR SEAT BELT = *ELR),GRAY,TRIM1# |
62614-90A02-03 |
— | ||
|
62614A
|
62614A
62614-90A02-06
Cover, Quarter Wheel House, Lh
[08.1987 - 01.1990] HJ60..RHD BROWN,TRIM4#; HJ60..STD BROWN,TRIM4#; HJ60..HRF..SOB BROWN,TRIM4#; FJ62..SOB BROWN,TRIM4# |
62614-90A02-06 |
— | ||
| replacement | |||||
|
62614A
|
62614A
62614-90A02-16
Cover, Quarter Wheel House, Lh
[08.1987 - 01.1990] HJ60..RHD BROWN,TRIM4#; HJ60..STD BROWN,TRIM4#; HJ60..HRF..SOB BROWN,TRIM4#; FJ62..SOB BROWN,TRIM4# |
62614-90A02-16 |
— | ||
|
62633A
|
62633A
62633-90A09-08
Garnish, Quarter Trim, Rh
[08.1987 - 01.1990] FJ62,HJ6#..SRF..GX IVORY,TRIM1#,4# |
62633-90A09-08 |
— | ||
|
62633A
|
62633A
62633-90A11-08 Garnish, Quarter Trim, RhQUARTER TRIM, RH [08.1987 - 01.1990] HJ60..RHD W(REAR SEAT BELT = *ELR),IVORY,TRIM1#,4#; FJ62,HJ6#..LHD..SRF..GX W(REAR SEAT BELT = *ELR),IVORY,TRIM1#,4# |
62633-90A11-08 |
US $123.76 |
||
|
62634A
|
62634A
62634-90A09-08 Garnish, Quarter Trim, LhQUARTER TRIM, LH [08.1987 - 01.1990] FJ62,HJ6#..SRF..GX IVORY,TRIM1#,4# |
62634-90A09-08 |
US $117.94 |
||
|
62634A
|
62634A
62634-90A11-08 Garnish, Quarter Trim, LhQUARTER TRIM, LH [08.1987 - 01.1990] HJ60..RHD W(REAR SEAT BELT = *ELR),IVORY,TRIM1#,4#; FJ62,HJ6#..LHD..SRF..GX W(REAR SEAT BELT = *ELR),IVORY,TRIM1#,4# |
62634-90A11-08 |
US $123.76 |
||
|
62640P
|
62640P
62640-90A03-03 Panel Assy, Quarter Trim, Rear LhQUARTER TRIM, REAR LH [08.1987 - 01.1990] FJ62,HJ6#..SOB..GX SHADOW GRAY,TRIM1# |
62640-90A03-03 |
US $58.82 |
||
|
62640P
|
62640P
62640-90A03-06 Panel Assy, Quarter Trim, Rear LhQUARTER TRIM, REAR LH [08.1987 - 01.1990] FJ62,HJ6#..SOB..GX SEPIA BROWN,TRIM4# |
62640-90A03-06 |
US $58.82 |
||
|
62650H
|
62650H
62650-90A06-03
Panel Assy, Quarter Trim, Center
[08.1987 - 01.1990] FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
62650-90A06-03 |
— | ||
|
62650H
|
62650H
62650-90A06-06
Panel Assy, Quarter Trim, Center
[08.1987 - 01.1990] FJ62,HJ6#..GX SEPIA BROWN,TRIM4# |
62650-90A06-06 |
— | ||
|
6777112010
|
6777112010
67771-12010 Retainer, Door Trim |
67771-12010 |
from US $1.77 |
||
|
6777130040
|
6777130040
67771-30040 Retainer(For Front Door Trim Board) |
67771-30040 |
US $3.14 |
||
|
9046804015
|
9046804015
90468-04015
New Genuine Part
|
90468-04015 |
— | ||
|
9356054020
|
9356054020
93560-54020 New Genuine Part |
93560-54020 |
US $1.97 |
||
