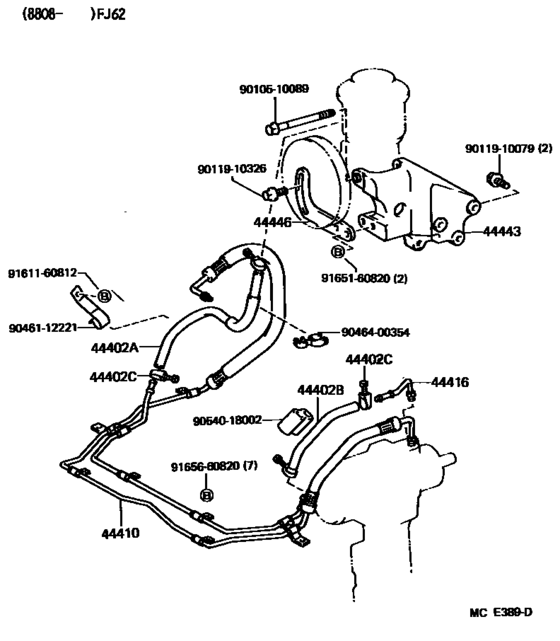

Power Steering Tube ([08.1988 - ] (8808- )FJ62) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44402A
|
44402A
90445-18090 Hose, Power Steering Oil Cooler InletPOWER STEERING OIL COOLER INLET [08.1988 - 01.1990] FJ62 |
90445-18090 |
US $32.78 |
||
|
44402B
|
44402B
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1987 - 01.1990] FJ62;HJ60..RHD |
90445-18089 |
from US $8.97 |
||
|
44402C
|
44402C
90460-01001 Clamp, Oil Cooler Hose[08.1987 - 01.1990] FJ62;HJ60..RHD |
90460-01001 |
US $10.39 |
||
|
44410
|
44410
44410-60170 Tube Assy, Pressure FeedPRESSURE FEED [08.1988 - 01.1990] FJ62 |
44410-60170 |
US $646.46 |
||
|
44416
|
44416
44416-60061
Tube, Return(For Steering Gear Outlet)
[08.1987 - 01.1990] FJ62,HJ6# |
44416-60061 |
— | ||
|
44443
|
44443
44443-60050
Bracket, Pump
[08.1988 - 01.1990] FJ62 |
44443-60050 |
— | ||
|
44446
|
44446
44446-60020
Strut, Adjusting
[08.1988 - 01.1990] FJ62 |
44446-60020 |
— | ||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $6.45 |
||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
|
9011910326
|
9011910326
90119-10326
New Genuine Part
|
90119-10326 |
— | ||
| replacement | |||||
|
9011910326
|
9011910326
90119-10719 BOLT WWASHER |
90119-10719 |
US $4.12 |
||
|
9046112221
|
9046112221
90461-12221
New Genuine Part
|
90461-12221 |
— | ||
|
9046400354
|
9046400354
90464-00354
New Genuine Part
|
90464-00354 |
— | ||
|
9054018002
|
9054018002
90540-18002
Cushion(For Pressure Feed Hose)
|
90540-18002 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
