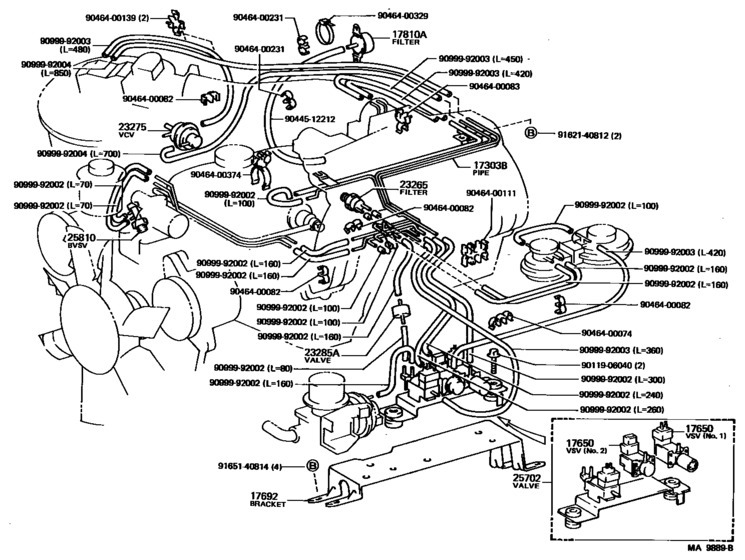

Vacuum Piping ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-61020
Pipe Sub-Assy, Air, No.1
[08.1988 - 01.1990] 3FE..FJ62 |
17303-61020 |
— | ||
|
17650
|
17650
25860-61010
Valve Assy, Vacuum Switching
[08.1988 - 01.1990] 3FE..FJ62 NO.1 |
25860-61010 |
— | ||
|
17650
|
17650
90910-12079 Valve Assy, Vacuum Switching[08.1988 - 01.1990] 3FE..FJ62 NO.2 |
90910-12079 |
from US $71.25 |
||
|
17692
|
17692
17692-61020 Bracket, Vacuum Control Valve, No.2[08.1988 - 01.1990] 3FE..FJ62 |
17692-61020 |
US $71.34 |
||
|
17810A
|
17810A
17810-61010
Filter Assy, Air
[08.1988 - 01.1990] 3FE..FJ62 |
17810-61010 |
— | ||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1988 - 01.1990] 3FE..FJ62 |
90917-11023 |
from US $23.41 |
||
|
23275
|
23275
90925-03057
Valve, Vacuum Control, No.1
[08.1988 - 01.1990] 3FE..FJ62 |
90925-03057 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1987 - 01.1990] 3FE..FJ62; 12HT..HJ61 |
90917-10049 |
from US $5.87 |
||
|
25702
|
25702
25702-61010
Valve Set, Emission Control, No.2
[08.1988 - 01.1990] 3FE..FJ62 |
25702-61010 |
— | ||
|
25810
|
25810
25820-13020 Valve, Bimetal Vacuum Switching, No.1[08.1988 - 01.1990] 3FE..FJ62 |
25820-13020 |
from US $69.81 |
||
|
9011906040
|
9011906040
90119-06040
New Genuine Part
|
90119-06040 |
— | ||
|
9044512212
|
9044512212
90445-12212
New Genuine Part
|
90445-12212 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400083
|
9046400083
90464-00083
New Genuine Part
|
90464-00083 |
— | ||
|
9046400111
|
9046400111
90464-00111
New Genuine Part
|
90464-00111 |
— | ||
|
9046400139
|
9046400139
90464-00139 Clamp (For Idle Up Divice), No.1 |
90464-00139 |
US $3.32 |
||
|
9046400231
|
9046400231
90464-00231 Clamp, Fuel Pipe(Hose), No.1 |
90464-00231 |
US $3.32 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9046400374
|
9046400374
90464-00374
New Genuine Part
|
90464-00374 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9099992004
|
9099992004
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
