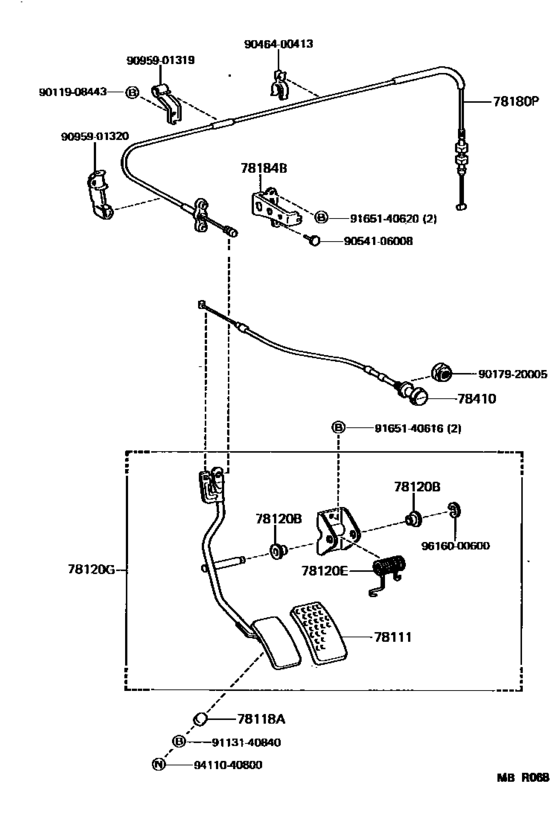

Accelerator Link ([08.1988 - ] (8808- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78111
|
78111
78111-95110 Pedal, Accelerator[08.1987 - 01.1990] FJ62 |
78111-95110 |
from US $8.42 |
||
|
78118A
|
78118A
78118-90K00
Stopper, Accelerator Pedal
[08.1987 - 01.1990] FJ62 |
78118-90K00 |
— | ||
| replacement | |||||
|
78118A
|
78118A
45619-14010 Cover, Knuckle Stopper[08.1987 - 01.1990] FJ62 |
45619-14010 |
US $9.68 |
||
|
78120B
|
78120B
90386-08155 Bush (For Accelerator Pedal Rod)[08.1987 - 01.1990] FJ62 |
90386-08155 |
US $1.14 |
||
|
78120E
|
78120E
90508-29017 Spring (For Accelerator Pedal Rod)[08.1987 - 01.1990] FJ62 |
90508-29017 |
US $2.97 |
||
|
78120G
|
78120G
78120-90A08 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1987 - 01.1988] FJ62 |
78120-90A08 |
US $126.67 |
||
|
78120G
|
78120G
78120-90A09 Rod Assy, Accelerator PedalACCELERATOR PEDAL [01.1988 - 01.1990] FJ62 |
78120-90A09 |
US $56.78 |
||
|
78180P
|
78180P
78180-90A24
Cable Assy, Accelerator Control
[08.1987 - 01.1990] FJ62 |
78180-90A24 |
— | ||
|
78184B
|
78184B
78184-90A01 Channel, Accelerator Idle Adjusting Stopper[08.1987 - 01.1988] FJ62 |
78184-90A01 |
US $29.27 |
||
|
78184B
|
78184B
78184-90A03 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [01.1988 - 01.1990] FJ62 |
78184-90A03 |
US $32.03 |
||
|
78410
|
78410
78410-90A03
Cable Assy, Throttle Control
[08.1987 - 01.1988] FJ62 |
78410-90A03 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A10
Cable Assy, Throttle Control
[08.1987 - 01.1988] FJ62 |
78410-90A10 |
— | ||
|
78410
|
78410
78410-90A08
Cable Assy, Throttle Control
[01.1988 - 01.1990] FJ62 |
78410-90A08 |
— | ||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9046400413
|
9046400413
90464-00413
New Genuine Part
|
90464-00413 |
— | ||
| replacement | |||||
|
9046400413
|
9046400413
90464-00944 New Genuine Part |
90464-00944 |
US $2.77 |
||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.50 |
||
|
9095901319
|
9095901319
90959-01319
New Genuine Part
|
90959-01319 |
— | ||
|
9095901320
|
9095901320
90959-01320 New Genuine Part |
90959-01320 |
US $5.39 |
||
|
9113140840
|
9113140840
91131-40840
Bolt, Accelerator Pedal Stopper
|
91131-40840 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
