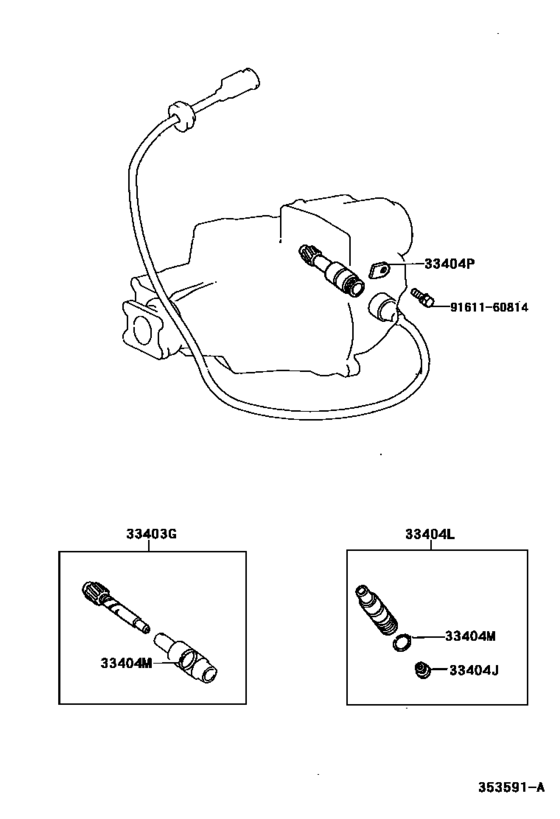

Speedometer Driven Gear (Atm) ([08.1987 - ] A440F (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-69195 Gear Sub-Assy, Speedometer Driven (Mtm)[08.1987 - 01.1990] FJ62 N=18,MARK 18:6 |
33403-69195 |
from US $22.42 |
||
|
33404J
|
33404J
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[08.1987 - 01.1990] FJ62 |
90310-09001 |
from US $2.87 |
||
|
33404L
|
33404L
33404-30040 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[08.1987 - 01.1990] FJ62 |
33404-30040 |
from US $14.31 |
||
|
33404M
|
33404M
90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)[08.1987 - 01.1990] FJ62 |
90301-18004 |
from US $2.17 |
||
|
33404P
|
33404P
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[08.1987 - 01.1990] FJ62 |
33485-30020 |
from US $1.62 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
