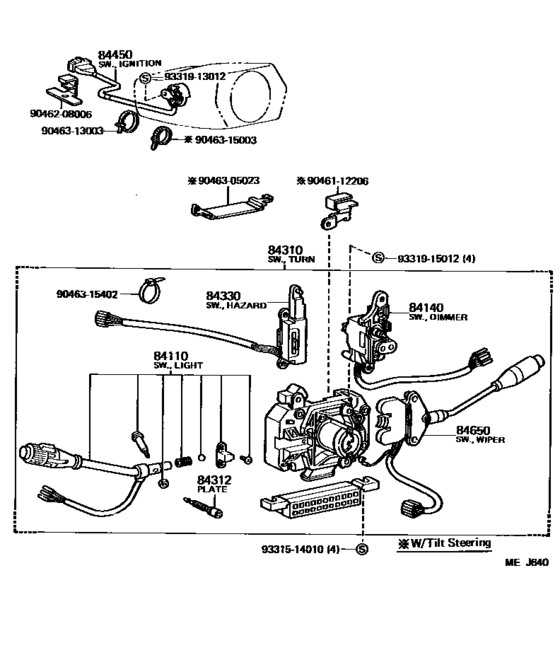

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-69295
Switch Assy, Light Control, No.1
[08.1987 - 01.1990] FJ62 |
84112-69295 |
— | ||
|
84140
|
84140
84140-35080 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [10.1987 - 01.1990] FJ62 |
84140-35080 |
US $66.68 |
||
| replacement | |||||
|
84140
|
84140
84140-26040 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [10.1987 - 01.1990] FJ62 |
84140-26040 |
US $64.30 |
||
|
84310
|
84310
84310-60700
Switch Assy, Turn Signal
[08.1987 - 01.1990] FJ62 |
84310-60700 |
— | ||
|
84312
|
84312
84312-20011 Plate, Horn Contact[08.1987 - 01.1990] FJ62 |
84312-20011 |
from US $4.69 |
||
|
84330
|
84330
84332-69055
Switch Assy, Hazard Warning Signal
[08.1987 - 01.1990] FJ62 |
84332-69055 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-69095
Switch Assy, Hazard Warning Signal
[08.1987 - 01.1990] FJ62 |
84332-69095 |
— | ||
|
84450
|
84450
84450-60150
Switch Assy, Ignition Or Starter
[08.1987 - 01.1990] FJ62 |
84450-60150 |
— | ||
|
84650
|
84650
84652-69345
Switch Assy, Windshield Wiper
[08.1987 - 01.1990] FJ62 |
84652-69345 |
— | ||
|
9046112206
|
9046112206
90461-12206 New Genuine Part |
90461-12206 |
US $6.55 |
||
|
9046208006
|
9046208006
90462-08006 Clamp,(For Ignition Switch Wire) |
90462-08006 |
US $7.28 |
||
| replacement | |||||
|
9046208006
|
9046208006
82711-37250
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37250 |
— | ||
|
9046305023
|
9046305023
90463-05023 New Genuine Part |
90463-05023 |
US $7.86 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.87 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
|
9331913012
|
9331913012
93319-13012 New Genuine Part |
93319-13012 |
US $1.75 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
