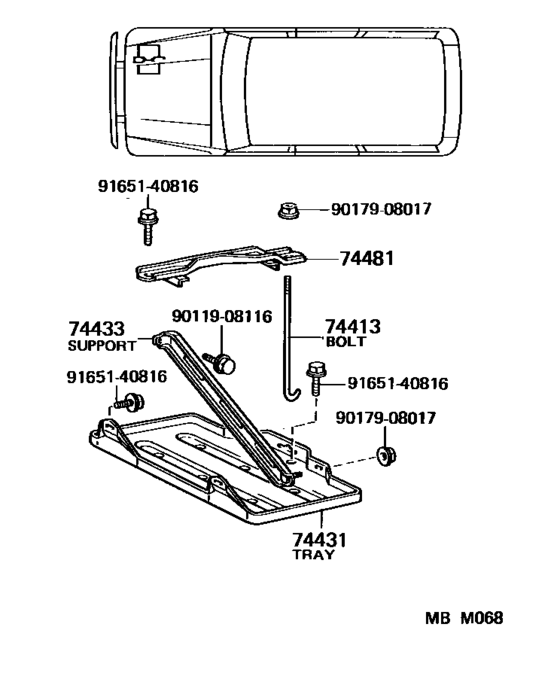

Battery Carrier ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74413
|
74413
74451-90A00 Bolt, Battery Clamp[08.1987 - 01.1990] FJ62 |
74451-90A00 |
from US $16.67 |
||
|
74431
|
74431
74431-90A00 Carrier, Battery[08.1987 - 01.1990] FJ62 |
74431-90A00 |
from US $65.91 |
||
|
74433
|
74433
74433-90A00
Support, Battery Tray, Rh
[08.1987 - 01.1990] FJ62 |
74433-90A00 |
— | ||
|
74481
|
74481
74404-90A00 Plate Sub-Assy, Battery Set[08.1987 - 01.1990] FJ62 |
74404-90A00 |
from US $15.12 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
