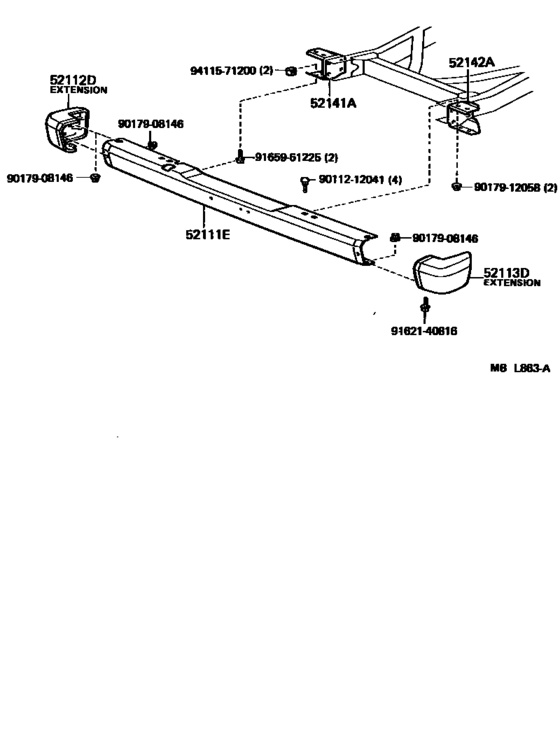

Front Bumper & Bumper Stay ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52111E
|
52111E
52111-90A03 Bar, Front Bumper[08.1987 - 01.1990] FJ62 |
52111-90A03 |
US $606.84 |
||
|
52112D
|
52112D
52102-90A00 Extension, Front Bumper, Rh[08.1987 - 01.1990] FJ62 |
52102-90A00 |
US $81.48 |
||
|
52113D
|
52113D
52103-90A00 Extension, Front Bumper, Lh[08.1987 - 01.1990] FJ62 |
52103-90A00 |
US $81.48 |
||
|
52141A
|
52141A
52141-60050
Arm, Front Bumper, Upper Rh
[08.1987 - 01.1990] FJ62 |
52141-60050 |
— | ||
|
52142A
|
52142A
52142-60040
Arm, Front Bumper, Upper Lh
[08.1987 - 01.1990] FJ62 |
52142-60040 |
— | ||
|
9011212041
|
9011212041
90112-12041 Bolt, Round Head Square Neck(For Front Bumper) |
90112-12041 |
US $5.91 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $2.51 |
||
|
9017912058
|
9017912058
90179-12058 Nut |
90179-12058 |
US $3.40 |
||
|
9162140816
|
9162140816
91621-40816 BOLTWWASHER |
91621-40816 |
US $2.33 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
|
9411571200
|
9411571200
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-71200 |
US $2.51 |
||
