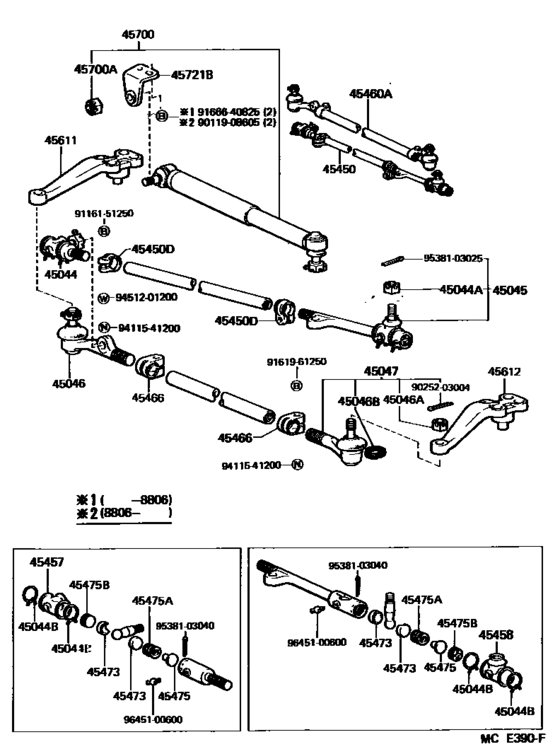

Front Steering Gear & Link ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45044
|
45044
45045-69045
End Sub-Assy, Steering Relay Rod, Lh
[08.1987 - 05.1989] FJ62 |
45045-69045 |
— | ||
| replacements | |||||
|
45044
|
45044
45045-60H01 End Sub-assy, Steering Relay Rod, Lh[08.1987 - 05.1989] FJ62 |
45045-60H01 |
US $99.01 |
||
|
45044
|
45044
45045-60H04 End Sub-assy, Steering Relay Rod, Lh[08.1987 - 05.1989] FJ62 |
45045-60H04 |
from US $82.43 |
||
|
45044
|
45044
45045-69046 End Sub-Assy, Steering Relay Rod[05.1989 - 01.1990] FJ62 |
45045-69046 |
US $123 |
||
|
45044A
|
45044A
90171-14042 Nut, Castle(For Pitman Arm)[08.1987 - 01.1990] FJ62 |
90171-14042 |
US $3.40 |
||
|
45044B
|
45044B
90467-32002 Ring, Set(For Relay Rod)[08.1987 - 01.1990] FJ62 |
90467-32002 |
US $2.87 |
||
|
45045
|
45045
45044-69055
End Sub-Assy, Steering Relay Rod, Lh
[08.1987 - 05.1989] FJ62 |
45044-69055 |
— | ||
| replacement | |||||
|
45045
|
45045
45044-60H00
End Sub-Assy, Steering Relay Rod, Lh
[08.1987 - 05.1989] FJ62 |
45044-60H00 |
— | ||
|
45045
|
45045
45044-69056
End Sub-Assy, Steering Relay Rod, Lh
[05.1989 - 01.1990] FJ62 |
45044-69056 |
— | ||
|
45046
|
45046
45046-69115
End Sub-Assy, Tie Rod, Rh
[08.1987 - 05.1989] FJ62 |
45046-69115 |
— | ||
| replacements | |||||
|
45046
|
45046
45046-60H05 End Sub-assy, Tie Rod, Rh[08.1987 - 05.1989] FJ62 |
45046-60H05 |
US $68.64 |
||
|
45046
|
45046
45046-60H09
End Sub-assy, Tie Rod, Rh
[08.1987 - 05.1989] FJ62 |
45046-60H09 |
— | ||
|
45046
|
45046
45046-69116
End Sub-Assy, Tie Rod, Rh
[05.1989 - 01.1990] FJ62 |
45046-69116 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-69155 End Sub-Assy, Tie Rod, LhTIE ROD, RH [05.1989 - 01.1990] FJ62 |
45046-69155 |
US $62.32 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[08.1987 - 01.1990] FJ62 |
90171-14042 |
US $3.40 |
||
|
45046B
|
45046B
90522-32011 Ring, Set(For Relay Rod)[08.1987 - 01.1990] FJ62 |
90522-32011 |
US $2.51 |
||
|
45047
|
45047
45047-69065
End Sub-Assy, Tie Rod, Rh
[08.1987 - 05.1989] FJ62 |
45047-69065 |
— | ||
| replacements | |||||
|
45047
|
45047
45047-60H02 End Sub-assy, Tie Rod, Lh[08.1987 - 05.1989] FJ62 |
45047-60H02 |
US $80.52 |
||
|
45047
|
45047
45047-60H03 End Sub-assy, Tie Rod, Lh[08.1987 - 05.1989] FJ62 |
45047-60H03 |
US $119.72 |
||
|
45047
|
45047
45047-60H04 End Sub-assy, Tie Rod, Lh[08.1987 - 05.1989] FJ62 |
45047-60H04 |
US $97.55 |
||
|
45047
|
45047
45047-69066
End Sub-Assy, Tie Rod, Rh
[05.1989 - 01.1990] FJ62 |
45047-69066 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-69085 End Sub-Assy, Tie Rod[05.1989 - 01.1990] FJ62 |
45047-69085 |
US $62.50 |
||
|
45450
|
45450
45450-69055
Rod Assy, Steering Relay
[08.1987 - 01.1990] FJ62 |
45450-69055 |
— | ||
|
45450D
|
45450D
45466-55020 Clamp, Steering Relay Rod End[08.1987 - 01.1990] FJ62 |
45466-55020 |
US $4.84 |
||
|
45457
|
45457
45458-60010 Seal, Dust(For Relay Rod)[08.1987 - 01.1990] FJ62 |
45458-60010 |
US $17.38 |
||
|
45458
|
45458
45457-60010 Seal, Dust(For Relay Rod)[08.1987 -] FJ62 |
45457-60010 |
US $17.92 |
||
|
45460A
|
45460A
45460-69105
Rod Assy, Tie
[08.1987 - 01.1990] FJ62 |
45460-69105 |
— | ||
|
45466
|
45466
45466-36010 Clamp, Tie Rod End[08.1987 - 01.1990] FJ62 |
45466-36010 |
US $6.99 |
||
|
45473
|
45473
45473-35010 Seat, Ball Stud[08.1987 - 01.1990] FJ62 |
45473-35010 |
US $3.76 |
||
|
45475
|
45475
45475-35010 Seat, Steering Link Joint Spring[08.1987 - 01.1990] FJ62 |
45475-35010 |
US $3.94 |
||
|
45475A
|
45475A
90501-45114 Spring, Compression(For Steering Link Joint)[08.1987 - 01.1990] FJ62 |
90501-45114 |
US $2.33 |
||
|
45475B
|
45475B
90340-25001 Plug, Straight Screw(For Steering Link Joint)[08.1987 - 01.1990] FJ62 |
90340-25001 |
US $3.40 |
||
|
45611
|
45611
45611-60040
Arm, Steering Knuckle, Rh
[08.1987 - 01.1990] FJ62 |
45611-60040 |
— | ||
|
45612
|
45612
45612-60040
Arm, Steering Knuckle, Lh
[08.1987 - 01.1990] FJ62 |
45612-60040 |
— | ||
|
45700
|
45700
45700-69025
Damper Assy, Steering
[08.1987 - 01.1990] FJ62 |
45700-69025 |
— | ||
| replacement | |||||
|
45700
|
45700
45700-69135 Damper Assy, SteeringSTEERING [08.1987 - 01.1990] FJ62 |
45700-69135 |
US $118.08 |
||
|
45700A
|
45700A
94184-61200 Nut, Lock(For Power Steering Control Valve)[08.1987 - 01.1990] FJ62 |
94184-61200 |
US $1.61 |
||
|
45721B
|
45721B
45721-60030
Bracket, Steering Damper
[08.1987 - 01.1990] FJ62 |
45721-60030 |
— | ||
|
9011908605
|
9011908605
90119-08605 New Genuine Part |
90119-08605 |
US $2.18 |
||
|
9025203004
|
9025203004
90252-03004
New Genuine Part
|
90252-03004 |
— | ||
| replacement | |||||
|
9025203004
|
9025203004
95381-03025 PIN |
95381-03025 |
US $2.33 |
||
|
9116151250
|
9116151250
91161-51250
New Genuine Part
|
91161-51250 |
— | ||
| replacement | |||||
|
9116151250
|
9116151250
91162-61250 Bolt, Mounting |
91162-61250 |
US $2.87 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
US $2.51 |
||
|
9166640825
|
9166640825
91666-40825
New Genuine Part
|
91666-40825 |
— | ||
| replacement | |||||
|
9166640825
|
9166640825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
US $1.79 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
US $1.79 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
US $2.33 |
||
|
9538103040
|
9538103040
95381-03040 PINCOTTER |
95381-03040 |
US $1.43 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
US $1.97 |
||
