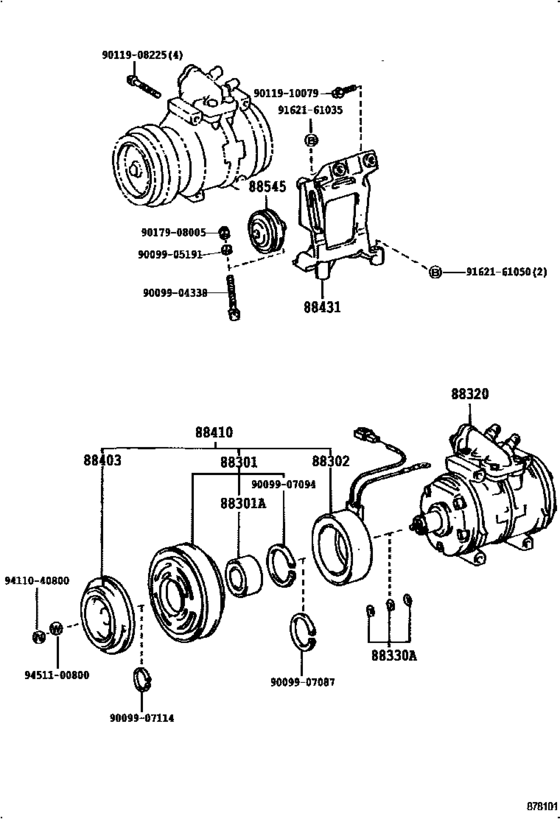

Heating & Air Conditioning - Compressor ([08.1987 - 08.1988] (8708-8808)) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-22030
Rotor Sub-Assy, Magnet Clutch
[08.1987 - 08.1988] FJ62 |
88412-22030 |
— | ||
|
88301
|
88301
88412-28030
Rotor Sub-Assy, Magnet Clutch
[08.1988 - 01.1990] FJ62 |
88412-28030 |
— | ||
|
88301A
|
88301A
90099-10133
Bearing, Ball(For Clutch Pully)
[08.1987 - 08.1988] FJ62 |
90099-10133 |
— | ||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[08.1987 - 08.1988] FJ62 |
88411-14050 |
— | ||
|
88302
|
88302
88411-60020
Stator Sub-Assy, Magnet Clutch
[08.1988 - 01.1990] FJ62 |
88411-60020 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-95J00
Stator Sub-Assy, Magnet Clutch
[08.1988 - 01.1990] FJ62 |
88411-95J00 |
— | ||
|
88320
|
88320
88320-60151
Compressor Assy, Cooler
[08.1987 - 08.1988] FJ62 |
88320-60151 |
— | ||
|
88320
|
88320
88320-60280
Compressor Assy, Cooler
[08.1988 - 01.1990] FJ62 |
88320-60280 |
— | ||
|
88330A
|
88330A
88335-12050 Washer (For Magnet Clutch)[08.1987 - 08.1988] FJ62 |
88335-12050 |
from US $0.70 |
||
|
88330A
|
88330A
88335-14020 Washer[08.1988 - 01.1990] FJ62 |
88335-14020 |
from US $1.24 |
||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[08.1987 - 08.1988] FJ62 |
88403-12030 |
— | ||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[08.1988 - 01.1990] FJ62 |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-22080 Clutch Assy, Magnet[08.1987 - 08.1988] FJ62 |
88410-22080 |
US $551.82 |
||
| replacement | |||||
|
88410
|
88410
88410-36390
Clutch Assy, Magnet
[08.1987 - 08.1988] FJ62 |
88410-36390 |
— | ||
|
88410
|
88410
88410-60120 Clutch Assy, MagnetMAGNET [08.1988 - 01.1990] FJ62 |
88410-60120 |
US $499.41 |
||
|
88431
|
88431
88431-60040
Bracket, Compressor Mounting, No.1
[08.1987 - 08.1988] FJ62 |
88431-60040 |
— | ||
|
88431
|
88431
88431-60100
Bracket, Compressor Mounting, No.1
[08.1988 - 01.1990] FJ62 |
88431-60100 |
— | ||
|
88545
|
88545
88440-35010 Pulley Assy, Idle[08.1987 - 01.1990] FJ62 |
88440-35010 |
from US $59.98 |
||
|
9009904338
|
9009904338
90099-04338
BOLT
|
90099-04338 |
— | ||
|
9009905191
|
9009905191
90099-05191
New Genuine Part
|
90099-05191 |
— | ||
|
9009907087
|
9009907087
90099-07087
Bearing, Magnet Clutch
|
90099-07087 |
— | ||
|
9009907094
|
9009907094
90099-07094
Ring, Snap (For Magnet Clutch)
|
90099-07094 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
|
9017908005
|
9017908005
90179-08005 New Genuine Part |
90179-08005 |
US $1.75 |
||
|
9162161035
|
9162161035
91621-61035 BOLT |
91621-61035 |
from US $1.98 |
||
|
9162161050
|
9162161050
91621-61050
New Genuine Part
|
91621-61050 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
