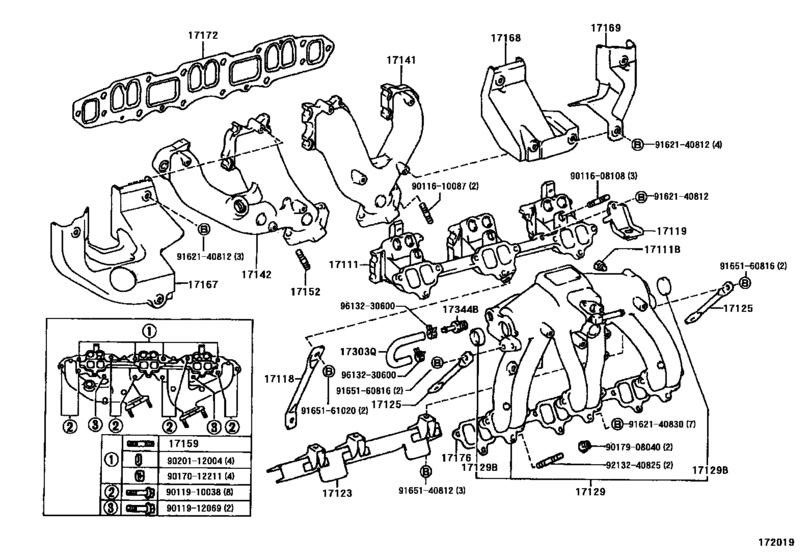

Manifold ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-61040 Manifold, Intake[08.1987 - 01.1990] 3FE..FJ62 |
17111-61040 |
US $563.47 |
||
|
17111B
|
17111B
90345-51025 Plug, W/head Taper Screw, No.2[08.1987 - 01.1990] 3FE..FJ62 |
90345-51025 |
US $3.76 |
||
|
17118
|
17118
17118-61030 Stay, Manifold[08.1987 - 01.1990] 3FE..FJ62 |
17118-61030 |
US $28.83 |
||
|
17119
|
17119
17139-61010 Stay, Manifold, No.2MANIFOLD, NO.2 [08.1987 - 01.1990] 3FE..FJ62 |
17139-61010 |
US $11.65 |
||
|
17123
|
17123
17123-61010 Cover, Surge Tank[08.1987 - 01.1990] 3FE..FJ62 |
17123-61010 |
US $61.44 |
||
|
17125
|
17125
17125-61010 Stay, Surge Tank, No.1[08.1987 - 01.1990] 3FE..FJ62 |
17125-61010 |
US $52.42 |
||
|
17129
|
17129
17109-61010 Tank, Intake Air Surge[08.1987 - 01.1990] 3FE..FJ62 |
17109-61010 |
US $1,936.48 |
||
|
17129B
|
17129B
96411-43000 Plug, Tight, No.1[08.1987 - 01.1990] 3FE..FJ62 |
96411-43000 |
from US $3.57 |
||
|
17141
|
17141
17141-61080 Manifold, Exhaust[08.1987 - 01.1990] 3FE..FJ62 |
17141-61080 |
US $298.48 |
||
|
17142
|
17142
17142-61050 Case, Exhaust Manifold, No.2[08.1987 - 01.1990] 3FE..FJ62 |
17142-61050 |
US $361.09 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[08.1987 - 01.1990] 3FE..FJ62 |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-12011 Bolt, Stud(For Manifold To Cylinder Head)[08.1987 - 01.1990] 3FE..FJ62 |
90116-12011 |
from US $1.88 |
||
|
17167
|
17167
17167-61070
Insulator, Exhaust Manifold Heat, No.1
[08.1987 - 01.1990] 3FE..FJ62 |
17167-61070 |
— | ||
|
17168
|
17168
17168-61030
Insulator, Exhaust Manifold Heat, No.2
[08.1987 - 01.1990] 3FE..FJ62 |
17168-61030 |
— | ||
|
17169
|
17169
17169-61040
Insulator, Exhaust Manifold Heat, No.3
[08.1987 - 01.1990] 3FE..FJ62 |
17169-61040 |
— | ||
|
17172
|
17172
17172-61060 Gasket, Manifold To Cylinder Head[08.1987 - 01.1990] 3FE..FJ62 |
17172-61060 |
US $41.83 |
||
|
17176
|
17176
17176-61010 Gasket, Air Surge Tank To Intake Manifold[08.1987 - 01.1990] 3FE..FJ62 |
17176-61010 |
US $13.69 |
||
| replacement | |||||
|
17176
|
17176
17176-61020 Gasket, Air Surge Tank To Intake Manifold[08.1987 - 01.1990] 3FE..FJ62 |
17176-61020 |
US $19.99 |
||
|
17303Q
|
17303Q
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1987 - 01.1990] 3FE..FJ62 |
95333-06020 |
— | ||
| replacement | |||||
|
17303Q
|
17303Q
95337-06020 Hose, Differential Pressure Control[08.1987 - 01.1990] 3FE..FJ62 |
95337-06020 |
from US $10.21 |
||
|
17344B
|
17344B
90404-54035 Union(For Air Hose)[08.1987 - 01.1990] 3FE..FJ62 |
90404-54035 |
US $8.15 |
||
|
9011608108
|
9011608108
90116-08108
New Genuine Part
|
90116-08108 |
— | ||
|
9011610087
|
9011610087
90116-10087 Bolt, Stud(For Turbocharger) |
90116-10087 |
from US $2.24 |
||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $6.45 |
||
|
9011912069
|
9011912069
90119-12069
New Genuine Part
|
90119-12069 |
— | ||
|
9017012211
|
9017012211
90170-12211 NUT |
90170-12211 |
from US $1.93 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9020112004
|
9020112004
90201-12004
WASHER
|
90201-12004 |
— | ||
| replacement | |||||
|
9020112004
|
9020112004
90201-12051 WASHER |
90201-12051 |
US $2.69 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9162140830
|
9162140830
91621-40830
New Genuine Part
|
91621-40830 |
— | ||
| replacement | |||||
|
9162140830
|
9162140830
91651-40832 New Genuine Part |
91651-40832 |
from US $2.97 |
||
|
9165140812
|
9165140812
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9213240825
|
9213240825
92132-40825
Bolt, Stud(For Water Outlet Setting)
|
92132-40825 |
— | ||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
