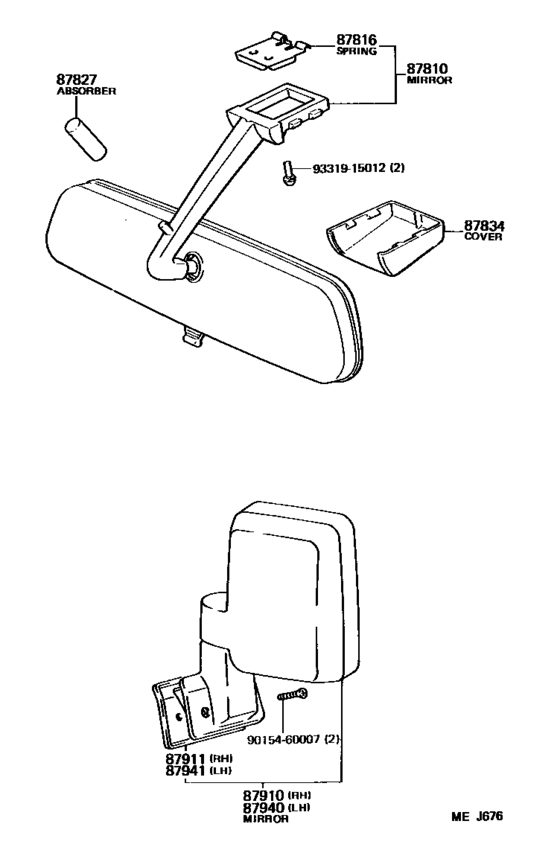

Mirror ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-90A03 Mirror Assy, Inner Rear View[08.1987 - 01.1990] FJ62 |
87810-90A03 |
from US $75.53 |
||
|
87816
|
87816
74372-90A00
Spring, Inner Rear View Mirror
[08.1987 - 01.1990] FJ62 |
74372-90A00 |
— | ||
|
87827
|
87827
87828-90A00
Absorber, Inner Rear View Mirror
[08.1987 - 01.1990] FJ62 L=40 |
87828-90A00 |
— | ||
|
87827
|
87827
87828-90A01
Absorber, Inner Rear View Mirror
[08.1987 - 01.1990] FJ62 L=45 |
87828-90A01 |
— | ||
|
87834
|
87834
87834-14011-28
Cover, Inner Rear View Mirror Stay Holder
[08.1987 - 01.1990] FJ62 IVORY,TRIM1#,4# |
87834-14011-28 |
— | ||
|
87910
|
87910
87910-90A18 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1987 - 01.1990] FJ62 |
87910-90A18 |
from US $162.05 |
||
|
87910
|
87910
87910-90A19
Mirror Assy, Outer Rear View, Rh
[08.1987 - 11.1989] FJ62..WGG DOOR REMOTE CONTROL MIRROR; FJ62..WGV DOOR REMOTE CONTROL MIRROR |
87910-90A19 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-90A20
Mirror Assy, Outer Rear View, Rh
[08.1987 - 11.1989] FJ62..WGG DOOR REMOTE CONTROL MIRROR; FJ62..WGV DOOR REMOTE CONTROL MIRROR |
87910-90A20 |
— | ||
|
87910
|
87910
87910-90A20
Mirror Assy, Outer Rear View, Rh
[11.1989 - 01.1990] FJ62 DOOR REMOTE CONTROL MIRROR |
87910-90A20 |
— | ||
|
87911
|
87911
87911-90A05
Gasket, Outer Rear View Mirror, Rh
[08.1987 - 01.1990] FJ62 |
87911-90A05 |
— | ||
|
87940
|
87940
87940-90A09 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1987 - 01.1990] FJ62 |
87940-90A09 |
US $334.41 |
||
|
87940
|
87940
87940-90A11
Mirror Assy, Outer Rear View, Lh
[08.1987 - 11.1989] FJ62..WGG DOOR REMOTE CONTROL MIRROR; FJ62..WGV DOOR REMOTE CONTROL MIRROR |
87940-90A11 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-90A15
Mirror Assy, Outer Rear View, Lh
[08.1987 - 11.1989] FJ62..WGG DOOR REMOTE CONTROL MIRROR; FJ62..WGV DOOR REMOTE CONTROL MIRROR |
87940-90A15 |
— | ||
|
87940
|
87940
87940-90A15
Mirror Assy, Outer Rear View, Lh
[11.1989 - 01.1990] FJ62 DOOR REMOTE CONTROL MIRROR |
87940-90A15 |
— | ||
|
87941
|
87941
87911-90A05
Gasket, Outer Rear View Mirror, Rh
[08.1987 - 01.1990] FJ62 |
87911-90A05 |
— | ||
|
9015460007
|
9015460007
90154-60007 SCREW |
90154-60007 |
from US $1.06 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
