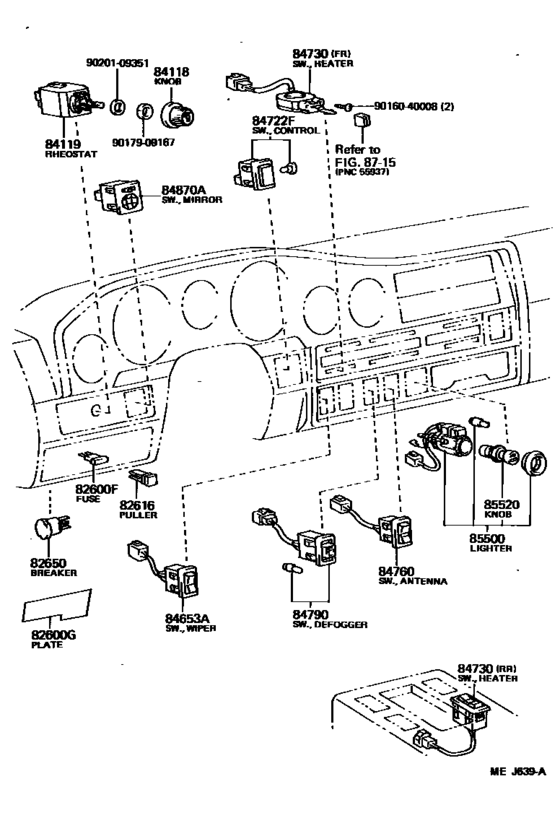

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 01.1990] FJ62 10A |
90982-09002 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 01.1990] FJ62 15A |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 01.1990] FJ62 20A |
90982-09004 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1987 - 01.1990] FJ62 7.5A |
90982-09005 |
from US $0.97 |
||
|
82600G
|
82600G
82683-90A20 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [08.1987 - 08.1988] FJ62 |
82683-90A20 |
US $4.08 |
||
|
82600G
|
82600G
82683-90A21 Plate, Caution(For Fuse)[08.1988 - 01.1990] FJ62 |
82683-90A21 |
US $3.93 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1987 - 01.1990] FJ62 |
82616-12010 |
US $3.40 |
||
|
82650
|
82650
82650-12020 Breaker Assy, Wiring Circuit, No.1[08.1987 - 01.1990] FJ62 14A |
82650-12020 |
US $21.17 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[08.1987 - 01.1990] FJ62 30A |
82650-20011 |
US $15.77 |
||
|
84118
|
84118
84118-90A00
Knob, Light Control Rheostat
[08.1987 - 01.1990] FJ62 |
84118-90A00 |
— | ||
|
84119
|
84119
84119-90A01
Rheostat, Light Control
[08.1987 - 01.1990] FJ62 |
84119-90A01 |
— | ||
|
84653A
|
84653A
84653-32020
Switch, Rear Wiper
[08.1987 - 01.1990] FJ62 |
84653-32020 |
— | ||
|
84722F
|
84722F
84722-60070 Switch, Transmission Control[08.1987 - 01.1990] FJ62 |
84722-60070 |
US $75.71 |
||
| replacement | |||||
|
84722F
|
84722F
84722-60080
Switch, Transmission Control
[08.1987 - 01.1990] FJ62 |
84722-60080 |
— | ||
|
84730
|
84730
84730-90A00 Switch Assy, Heater Blower[08.1987 - 09.1989] FJ62 FRONT |
84730-90A00 |
US $48.78 |
||
| replacement | |||||
|
84730
|
84730
84730-90A02
Switch Assy, Heater Blower
[08.1987 - 09.1989] FJ62 FRONT |
84730-90A02 |
— | ||
|
84730
|
84730
84730-90A02
Switch Assy, Heater Blower
[09.1989 - 01.1990] FJ62 FRONT |
84730-90A02 |
— | ||
|
84730
|
84730
84732-90A00
Switch Assy, Heater Blower
[08.1987 - 01.1990] FJ62 REAR |
84732-90A00 |
— | ||
|
84760
|
84760
84760-90A01 Switch Assy, Antenna[08.1987 - 01.1990] FJ62 |
84760-90A01 |
US $109.20 |
||
|
84790
|
84790
84790-90A09
Switch Assy, Rear Window Defogger
[08.1987 - 01.1990] FJ62 |
84790-90A09 |
— | ||
| replacement | |||||
|
84790
|
84790
84790-24010
Switch Assy, Rear Window Defogger
[08.1987 - 01.1990] FJ62 |
84790-24010 |
— | ||
|
84870A
|
84870A
84870-14060 Switch Assy, Outer Mirror[08.1987 - 04.1988] FJ62 |
84870-14060 |
US $78.62 |
||
|
84870A
|
84870A
84870-22040
Switch Assy, Outer Mirror
[04.1988 - 07.1988] FJ62 |
84870-22040 |
— | ||
|
84870A
|
84870A
84870-90A00 Switch Assy, Outer Mirror[07.1988 - 01.1990] FJ62 |
84870-90A00 |
US $75.71 |
||
|
85500
|
85500
85500-90A07 Lighter Assy, Cigarette[08.1987 - 01.1990] FJ62 |
85500-90A07 |
US $66.54 |
||
|
85520
|
85520
85520-14030 Knob And Element Assy, Cigarette Lighter[08.1987 - 01.1990] FJ62 |
85520-14030 |
US $32.61 |
||
| replacement | |||||
|
85520
|
85520
85520-17020 Knob And Element Assy, Cigarette Lighter[08.1987 - 01.1990] FJ62 |
85520-17020 |
from US $20.58 |
||
|
9016040008
|
9016040008
90160-40008
New Genuine Part
|
90160-40008 |
— | ||
|
9017909167
|
9017909167
90179-09167
New Genuine Part
|
90179-09167 |
— | ||
|
9020109351
|
9020109351
90201-09351
New Genuine Part
|
90201-09351 |
— | ||
